performs a self-diagnostic test. If test is
completed successfully, keyboard returns
the hex code AA. All other codes are
interpreted as errors.
- Storage temperature: -20°C to +60°C
- Operating temperature: 0°C to +50°C
- Interface:
IBM compatible keyboard interface;
5-pin DIN 180° plug
serial interface
9-pin SUB-D connector
- Data output: Open collector TTL
- Data format: Data is transferred to/from
keyboard in IBM synchronous format.
- Data buffer: All codes are stored in a
buffer prior to transfer
- Dimensions:
Keyboard familiy 8000:
470 x 220 x 63 mm
Keyboard familiy 7000:
405 x 220 x 63 mm
10.2 Technical specifications for
magnetic swipe card reader
- Scanning speed: 3 - 125 ips at 75 bpi
3 - 50 ips at 210 bpi (ips=inches per
second, bpi=bits per inch)
- Service life of magnetic scanning
head: 400 000 scanning cycles.
Decoding complies with DIN
ISO 7812.
10.3 Technical specifications of
the barcode decoder unit
The barcode decoder decodes inputs
from non-triggered and triggered barcode
readers, distinguishing the following
barcode symbol systems automatically
and bidirectionally. The decoder software
accepts barcode scanning speeds of
between 3 and 400 inches per second
(7 to 1000 cm/s) from any source.
The following barcode types are
recognized and decoded automatically:
Code 39, Code 93, Code 11, Code 16K,
Plessey, MSI, Indurstial 2/5, Matrix 2/5,
Interleaved 2/5, Codabar, Code 128,
UPC/EAN/JAN
10.4 Technical specification for
smart card terminal
- Plug-in reader: Life expectancy of
smartcard reader: 200 scanning cycles.
10.5 Technical specifications
for touchpad
PS/2 touchpad
- Power supply: +5 V/DC ±10%
- Current input: max. 2,75 mA
in operation

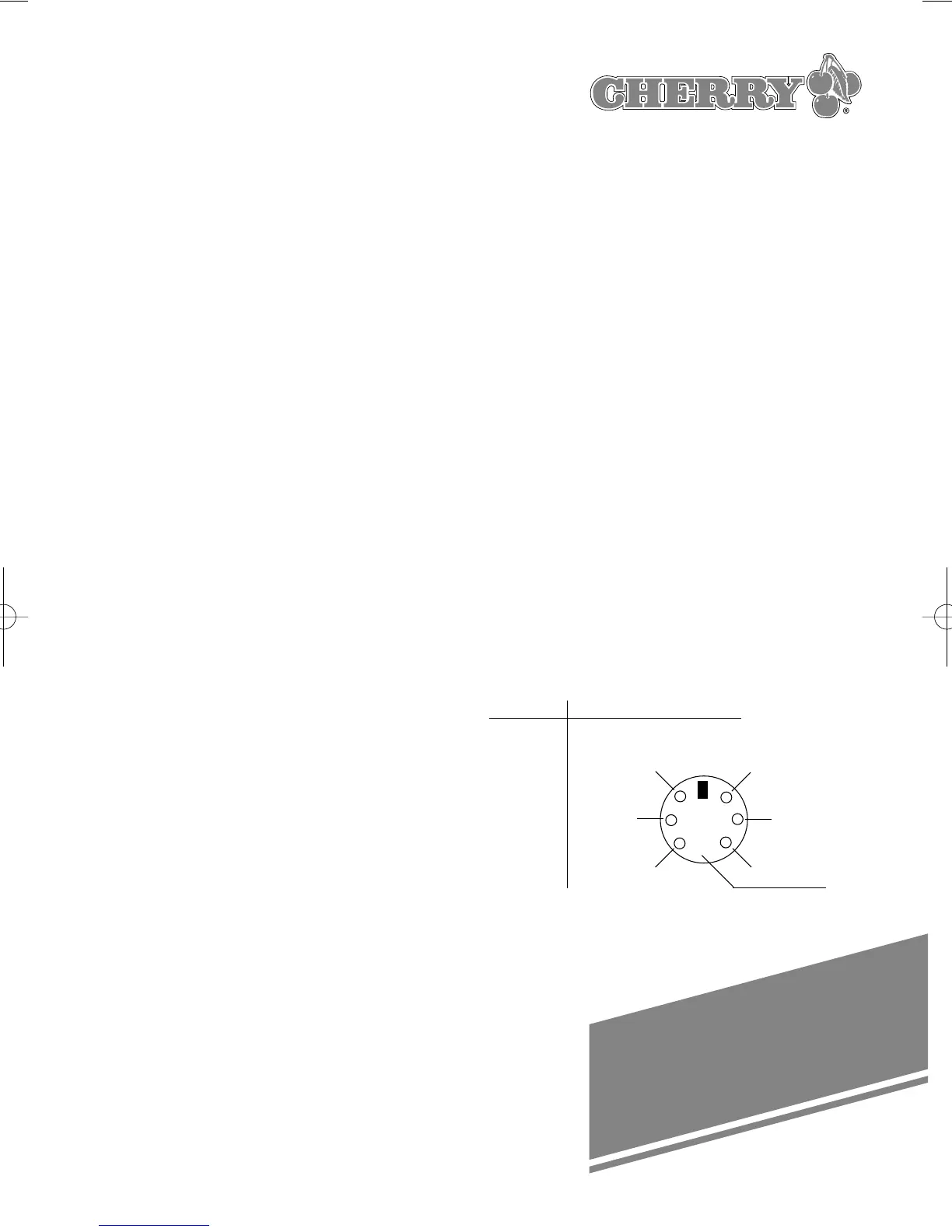

Connector pinouts
Mini DIN connector
Data 1
nc 2
GND 3
+5V 4
Clock 5
nc 6
Shield shell
29
Mini
DIN
4
6
2
Shell
5
1
3
