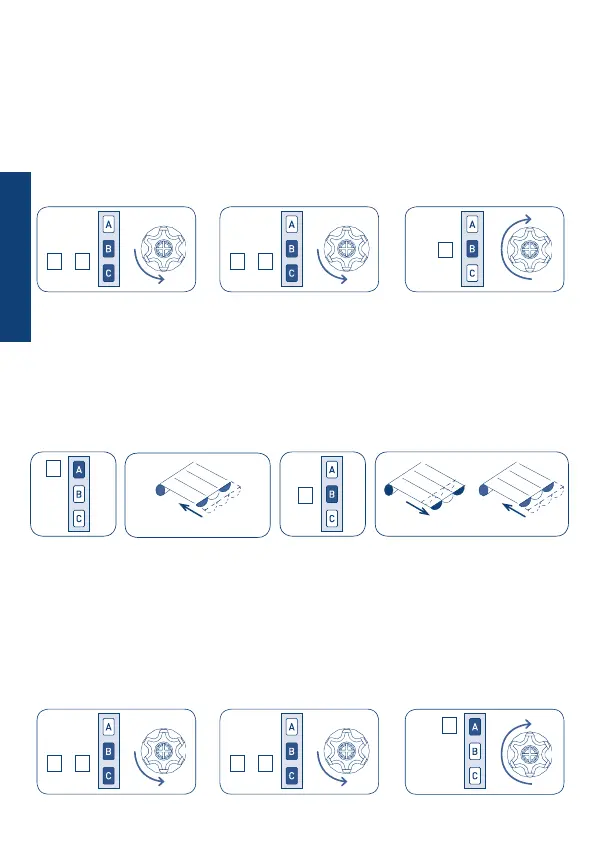

FABRIC TIGHTENING FUNCTION
By programming this function, the motor after reaching the outer limit, automatically
performs a short backwards turn to tighten the fabric. Specially designed for pergolas and
horizontal awnings.
N.B: The programming of this option can be made only after setting the limit switches.
STARTING THE SETTING PROCEDURE:
Tn: Already programmed remote control
Tn
Tn
Tn
Tn
Tn (2 sec)
Tn (2 sec)
After adjusting and conrming the tensioning position, the motor drives to the open
position and returns to the new tensioning position which has just been conrmed. From
this moment, each time the motor reaches the open position, automatically it will turn
back to the “tensioning position”.
DELETING THE TENSIONING POSITION
Tn: Already programmed remote control
This rst process brings the awning to the open position and sets the motor into “DEAD
MAN” operating mode. Thereafter, the fabric tensioning position can be adjusted
accurately.
ADJUSTMENT AND CONFIRMATION OF THE TENSIONING POSITION
Tn: Already programmed remote control
Tn
Tn (2 sec)
conrmingadjusting
+
B C
+
B C
B
B
A
+
B C
+
B C
A
