COMMAND MANAGEMENT FROM WHITE WIRE
UP-STOP-DOWN-STOP / UP-DOWN / UP-DOWN “DEAD MAN”
NB: The default function provided in the motors leaving the factory is UP-STOP-DOWN-
STOP for singular UP/DOWN button switch. (Not for the switch with two independent
UP-DOWN buttons!)

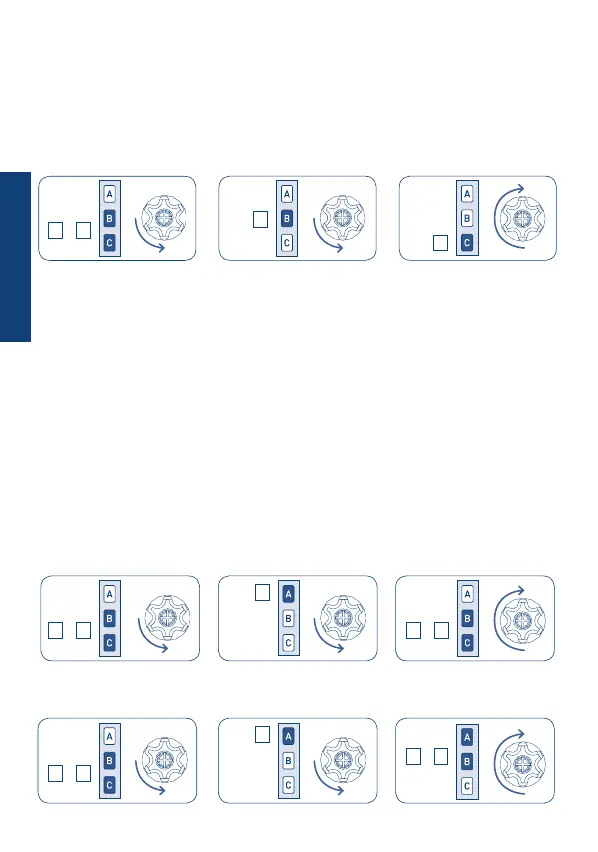

PROCEDURE TO CHANGE THE CONTROL MODE:
Tn: Already programmed remote control
Tn
Tn
Tn (2 sec)
SUPER-SENSITIVITY OBSTACLE DETECTION MANAGEMENT
DURING DOWNWARDS MOVEMENT - only for motors up to 25 Nm -
(on Wave RX motors it will be available starting from the end of March 2018)
Where required - for example for window screens or screen fabric with a tensioner weight
attached - it is possible to activate/deactivate a high level of obstacle detection sensitivity
during downwards movement.
ACTIVATING THE SUPER-SENSITIVITY FUNCTION
Tn Tn (2 sec)
Tn
DEACTIVATING THE SUPER-SENSITIVITY FUNCTION
Tn
Tn
Tn (2 sec)
The possible settings are 3 and are available in the following order:
- UP-STOP-DOWN-STOP (factory setting)
- UP-DOWN (for 2 independent buttons)
- UP-DOWN “DEAD MAN” (for 2 independent buttons)
To switch from one setting to the following, perform the sequence as many times as
necessary to reach the desired setting.
+
B C
B
C
+
B C
+
B C
A
+
B C
A
+
A B
