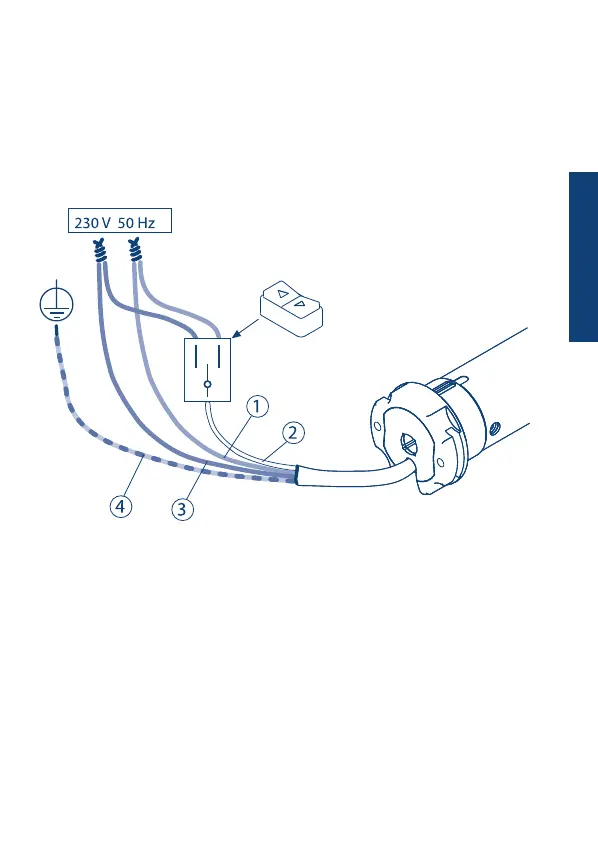

ELECTRIC WIRING TO MOTOR COMMAND FOR UP-DOWN MODE
(2 independent UP-DOWN buttons)
To connect the switch, use only kind of switches with mechanical or electrical interlock, to
prevent to press both buttons at same time.
The motor automatically recognizes the switch-type (with 1 or 2 buttons) and sets the
proper operational mode.
Switch with mechanical
or electrical interlocking
1 - BROWN
2 - WHITE
3 - BLUE
4 - YELLOW-GREEN
WIRE PROGRAMMING
Using the switch as described on this page it’s possible to set the motor trough the white
wire (wire programming). To nd out this procedure, require the instruction pamphlet
from your dealer.
