HOW TO PREPARE THE MOTOR
NB: If you use tubes with a round form, the driving pulley must be xed to the tube, and
the installation is to be paid by the person who installs the system. For other tube sections
the tting is optional, but strongly recommended.

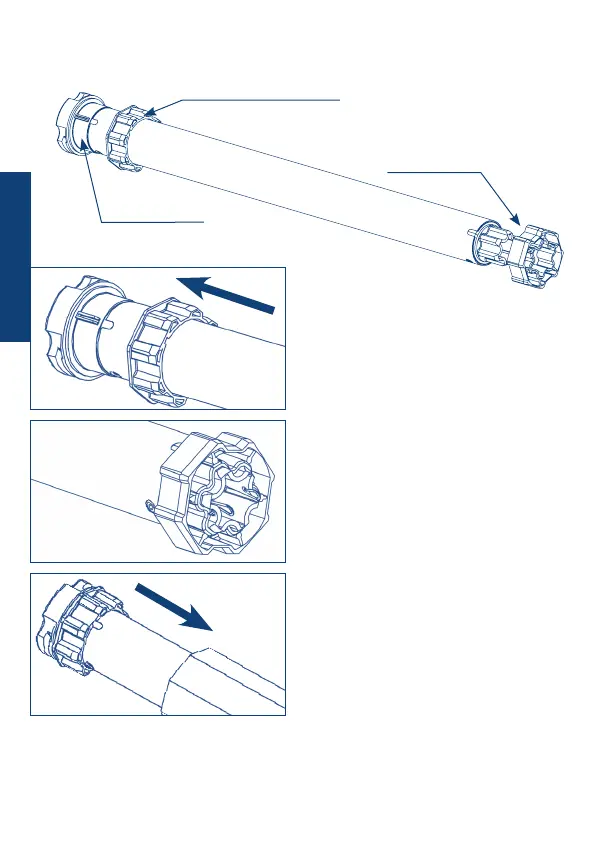

1. Insert the adaptor in the nut mating the
groove with the reference notch and push
till they touch.
2. Fix the driving pulley on the motor pin
until the stop pin clicks.
3. Insert the motor fully in the rolling tube.
STOP RING NUT ADAPTOR
DRIVING PULLEY
STOP RING NUT
1
2
3
