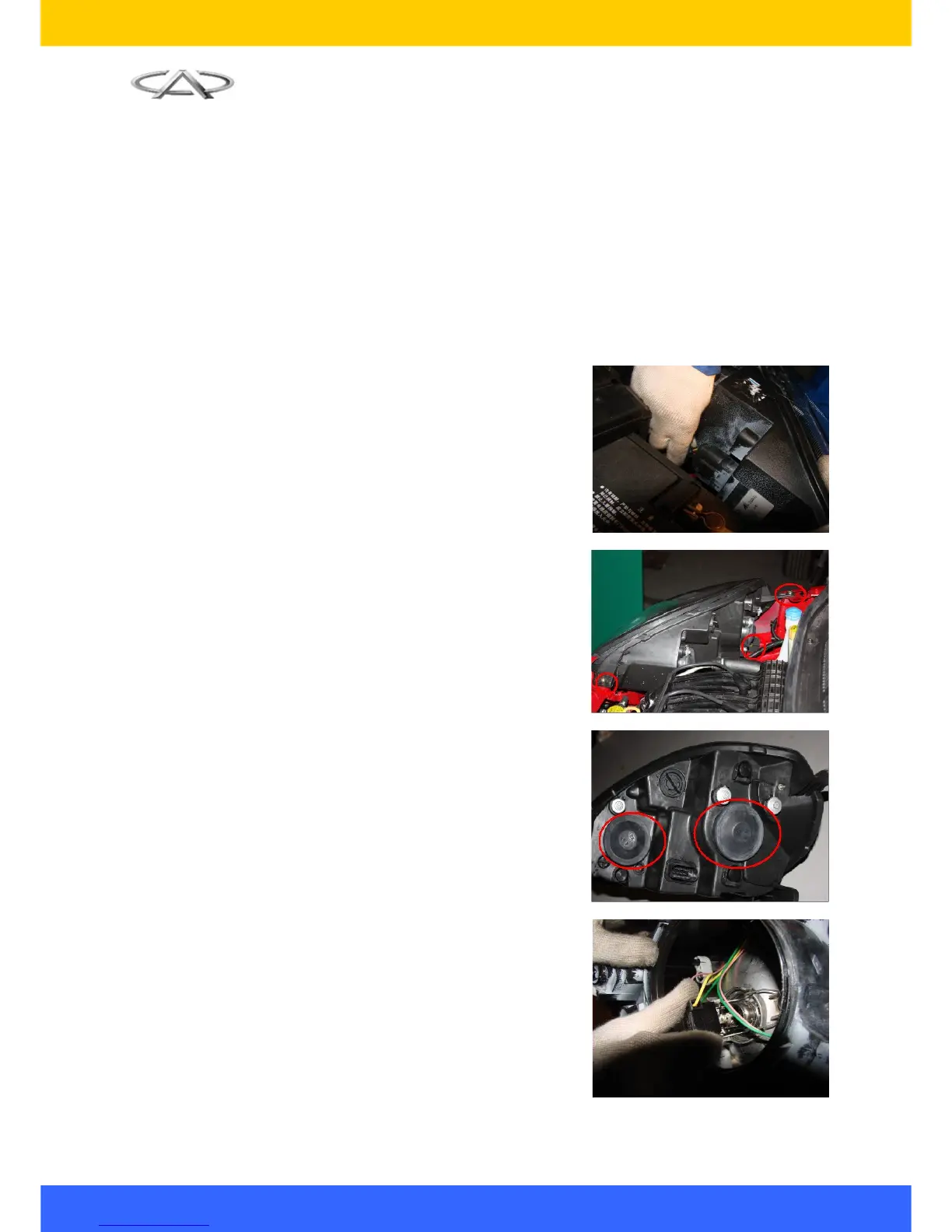

Chery S18D Service Manual
Chapter V Removal and Installation of Outside Lamps
I. Preparations
Tools: socket wrench, cross screwdriver and etc.
II. Precautions
2.1. Wear necessary appliance for labor protection to prevent from accidents.
2.2. Try to avoid scratching the paint surface of the bumper when removing it.
2.3. Pay attention not to scratch the headlamp surface during removal or placing it.
III. Removal Procedure of Headlamp
3.1. Remove the headlamp wiring harness
connector.
3.2. Remove the three headlamp fixing screws on
the engine compartment cross beam and
fender with 10# socket wrench and remove
the headlamp.
3.3. Open the headlamp high beam holder shield
by hand.
3.4. Disconnect the connector of high and low
beam lamp holder.
29
