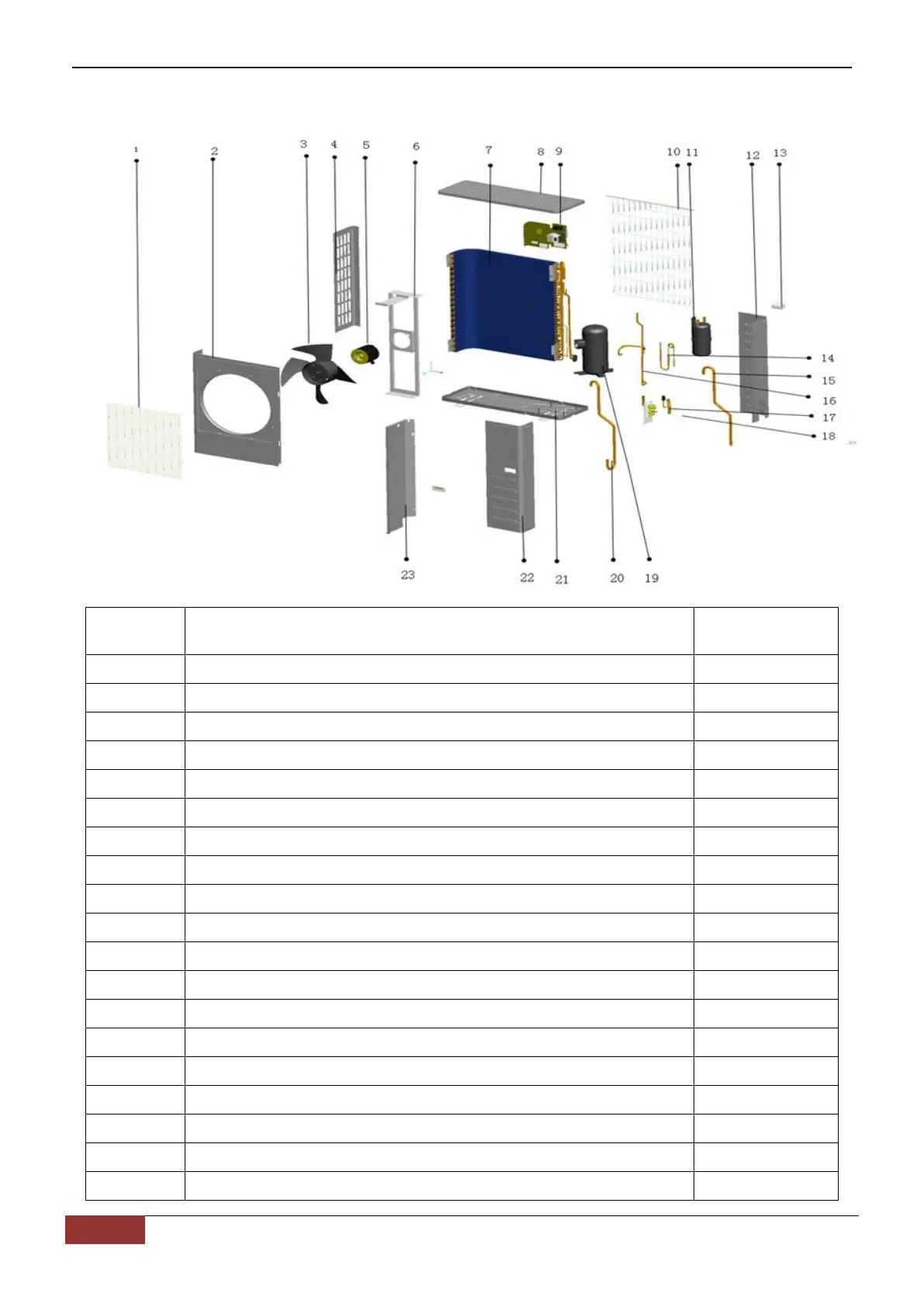

R410A50Hz Universal Outdoor Series TechnicalManual Outdoor unit
147
GD Chigo Heating & Ventilation Equipment Co., Ltd.
COU-36CR1
COU-36CSR1
No. Part Name Quantity
1
Net cover
1
2
Panel
1
3
Propeller fan
1
4
Left separating board
1
5
Outdoor motor(YDK-200-6B)
1
6
Support for motor
1
7
Condenser parts
1
8
Top cover board parts
1
9
The electric control parts
1
9.1
Fan motor capacitor
1
9.2
AC contactor
1
9.3
Terminal (DJ-75W-5PA)
1
9.4
Terminal (DJ-0A-3PA)
1
9.5
Protection plate for phase sequence
1
10
Back mesh
1
11
Pre-welding assy for compressor suction pipe B
1
12
Right separating board
1
13
Pull handle
2
14
Weld assembly for throttled capillary assy
1
