R410A50Hz Universal Outdoor Series Technical Manual Duct Type Indoor Unit
86
GD Chigo Heating & Ventilation Equipment Co., Ltd.

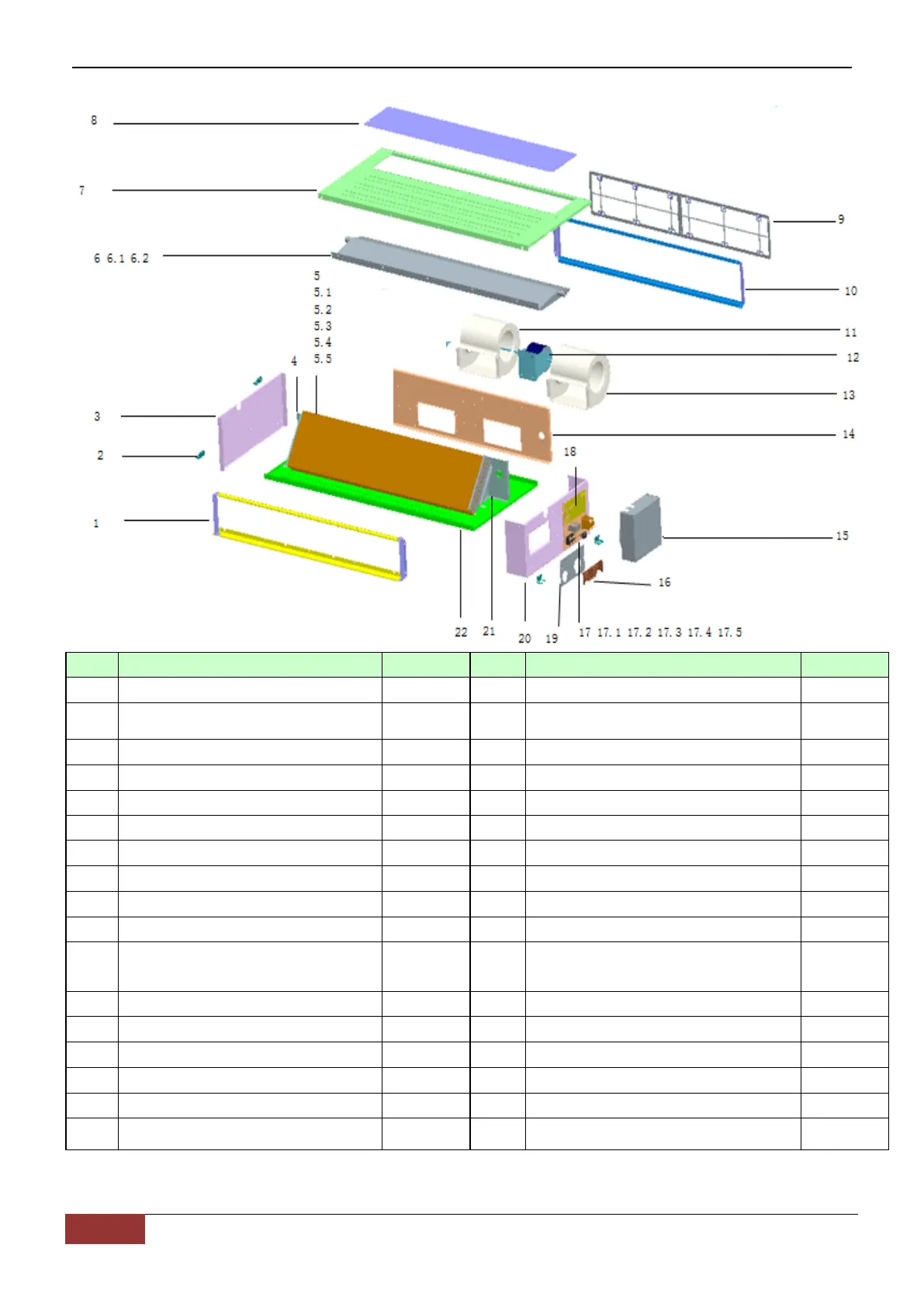

13.2CTB-18HR1, CTB-24HR1
No.
Part Name
Quantity
No.
Part Name
Quantity
1
outlet assy
1
11
scroll case(left)
1
2 hanger 4 12 Fan motor 1
3
left clapboard
1
13
scroll case(right)
1
4
Left end plate of Evaporator
1
14
Fan fixing board assy
1
5
Evaporator assy
1
15
E-parts box cover assy
1
5.1
Transition tube
6
16
Small cover plate
1
5.2
Shunt assy
1
17
E-parts
1
5.3
air header assy
1
17.1
Main control board
1
5.4
Evaporator
1
17.2
Temperature sensor
1
5.5
Probe copper tube
1
17.3
PTC transformer
1
6
Welding assy for water
collector
1 17.4 Terminal 1
6.1
leading
2
17.5
NO.7Line pressing buckle
2
6.2
effluent joint rubber cap
2
18
E-parts box base
1
7
Lower plate
1
19
big cover plate
1
8
Return air damper
1
20
Right clapboard
1
9
filter screen
2
21
Right end plate of Evaporator
1
10
Return air assy
1
22 Upper plate 1
