Chigo CCB-18HR1 - Service Space

R410A50Hz Universal Outdoor Series Technical Manual Outdoor unit
125
GD Chigo Heating & Ventilation Equipment Co., Ltd.

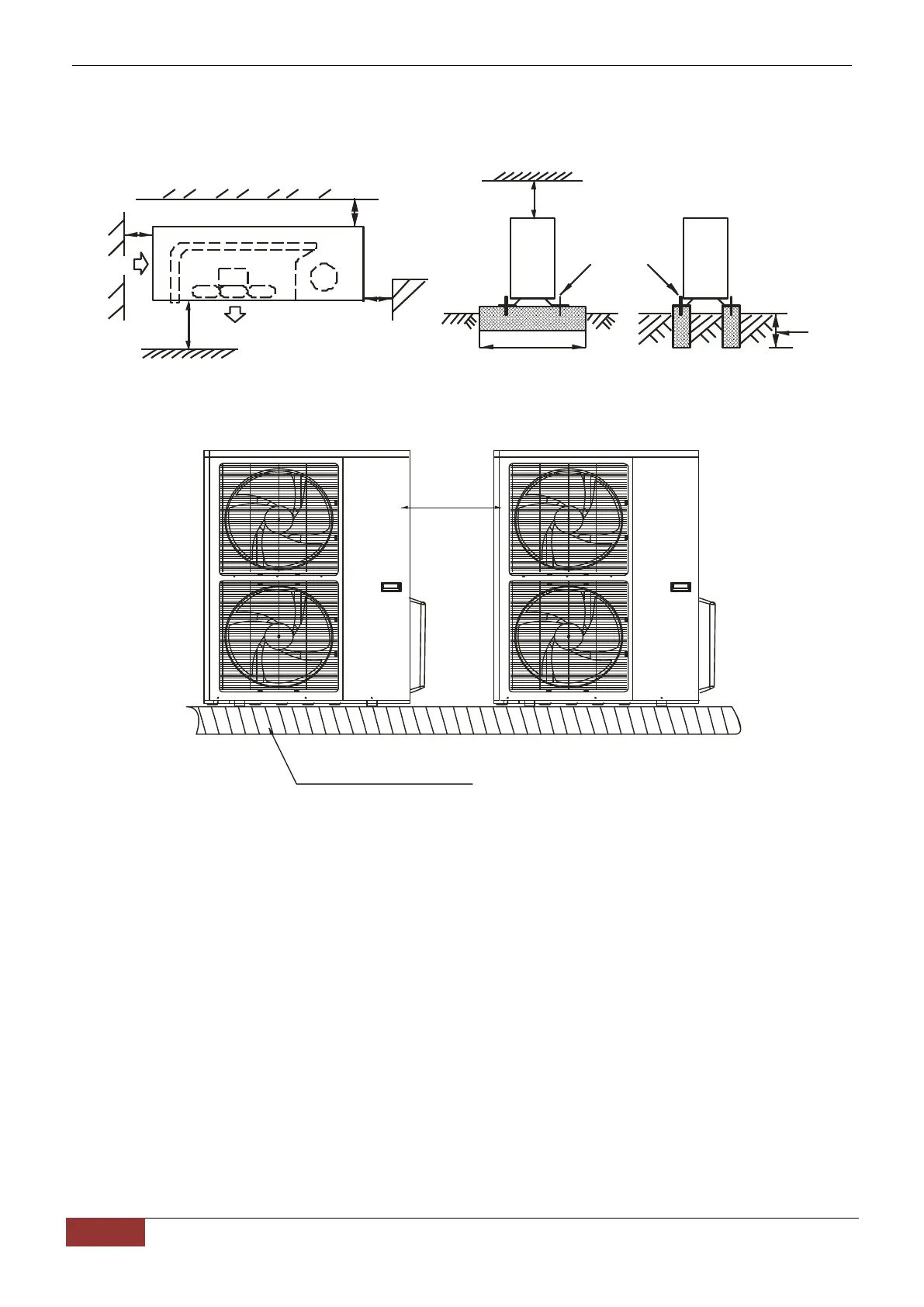

3.Service Space
>30cm
>60cm
>30cm
>
1
5
0
c
m
(Wall or obstacle)
Air inlet
Air outlet
Air inlet
Maintain channel
>
5
0
c
m
Obstacle
Fix with bolt
Deep foundation
Necessary width
300mm is necessary between 2 outdoor units
300mm
M10 bolt
4pieces per unit
