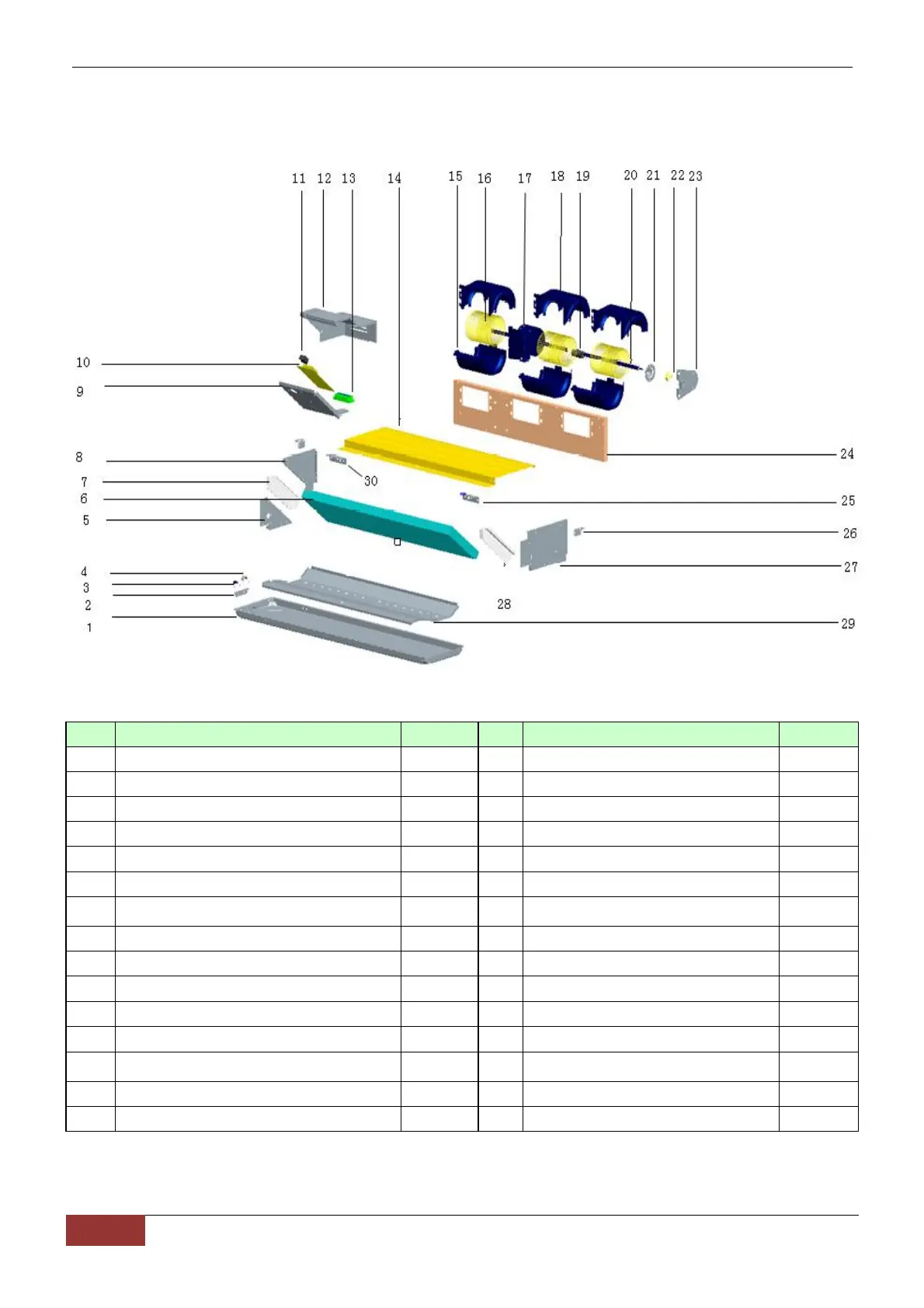

13.Exploded View
13.1 CTA-18HR1
No.
Part Name
Quantity
No.
Part Name
Quantity
1
Welding assy for water collector
1
16
Centrifugal fan
3
2
Fixing board for inlet and outlet pipe
1
17
Fan motor
1
3
Pipe clamp 2
1
18
Upper scroll case
3
4
Pipe clamp 1
1
19
Coupling
1
5
Front-left clapboard
1
20
Axis2
1
6
Evaporator
1
21
Louver fixing board assy
1
7
Left end plate of Evaporator
1
22
No.13 Bearing holder
1
8
Rear-left clapboard
1
23
Motor support
1
9
Installing board for E-parts
1
24
Fan fixing board assy
1
10
Main control board
1
25
Front hanger B
1
11
PTC transformer
1
26
hanger
2
12
E-parts box cover assy
1
27
Right clapboard
1
13
Terminal
1
28
Right end plate of Evaporator
1
14
Upper cover
1
29
Evaporator chassis
1
15
Lower scroll case
3
30
Front hanger A
1
