Chigo CCB-18HR1 User Manual

R410A50Hz Universal Outdoor Series Technical Manual Duct Type Indoor Unit
85
GD Chigo Heating & Ventilation Equipment Co., Ltd.

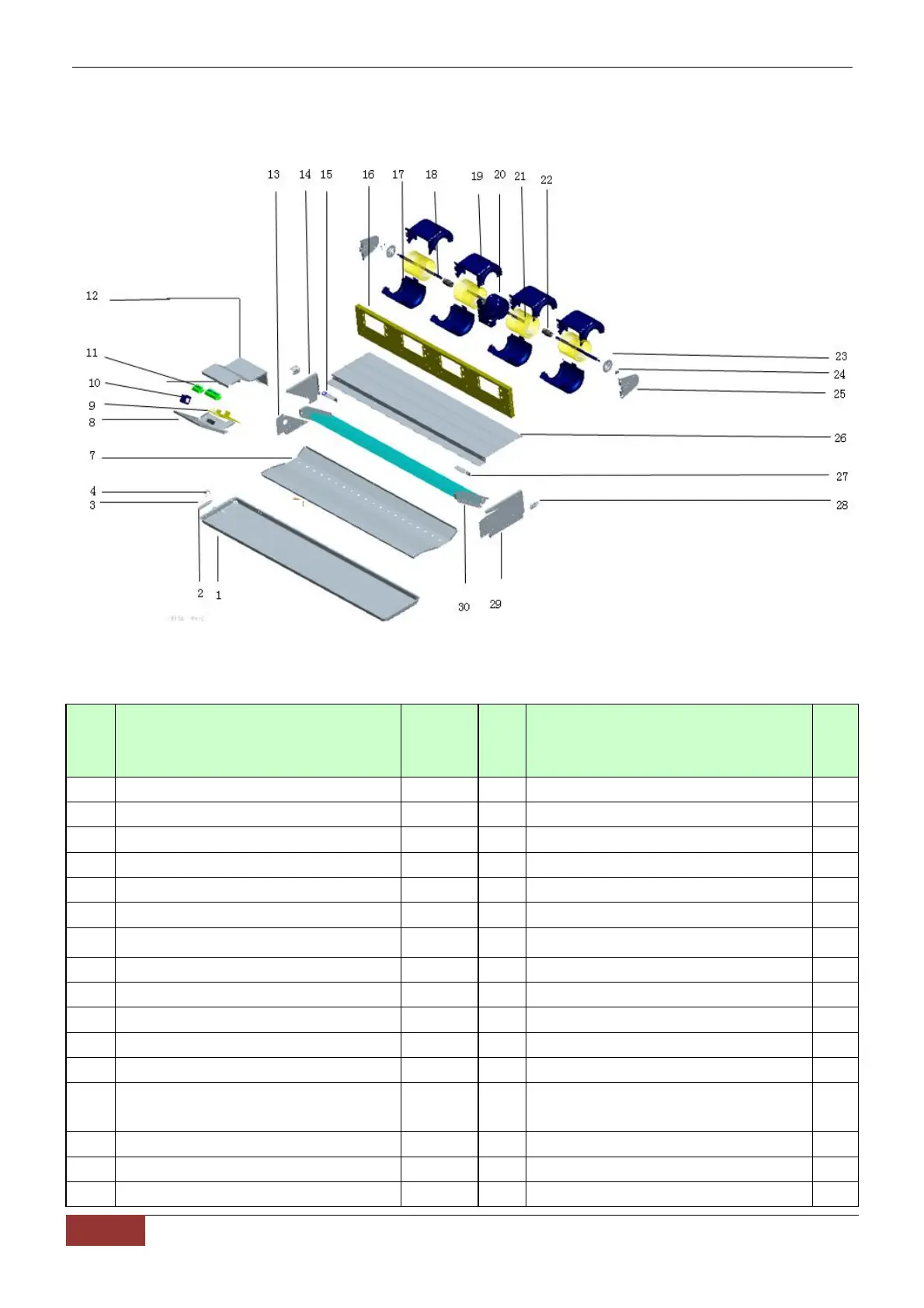

13.2 CTA-24HR1
No.
Part Name
Quantity
No.
Part Name
Qua
ntit
y
1
Welding assy for water collector
1
20
Fan motor
1
2
Fixing board for inlet and outlet pipe
1
21
Centrifugal fan
4
3
Pipe clamp 2
1
22
Coupling
2
4
Pipe clamp 1
1
23
Louver fixing board assy
2
7
Evaporator chassis
1
24
No.13 Bearing holder
2
8
Installing board for E-parts
1
25
Motor support
2
9
Main control board
1
26
Upper cover
1
10
PTC transformer
1
27
Front hanger B
1
11
Terminal
1
28
Hanger
2
12
E-parts box cover assy
1
29
Right clapboard
1
13
Front-left clapboard
1
30
Pre-welding assy for evaporator
1
14
Rear-left clapboard
1
30.1
Evaporator
1
15
Front hanger A
1
30.2
Distributing capillary assy for indoor
unit
1
16
Fan fixing board assy
1
30.3
Collecting pipe assy
1
17
Lower scroll case
4
30.4
Installation tube for probe
1
18
Axis2
2
30.5
Installation spring for probe
1
