Chigo CCB-18HR1 User Manual

R410A50Hz Universal Outdoor Series Technical Manual Duct Type Indoor Unit
86
GD Chigo Heating & Ventilation Equipment Co., Ltd.
19

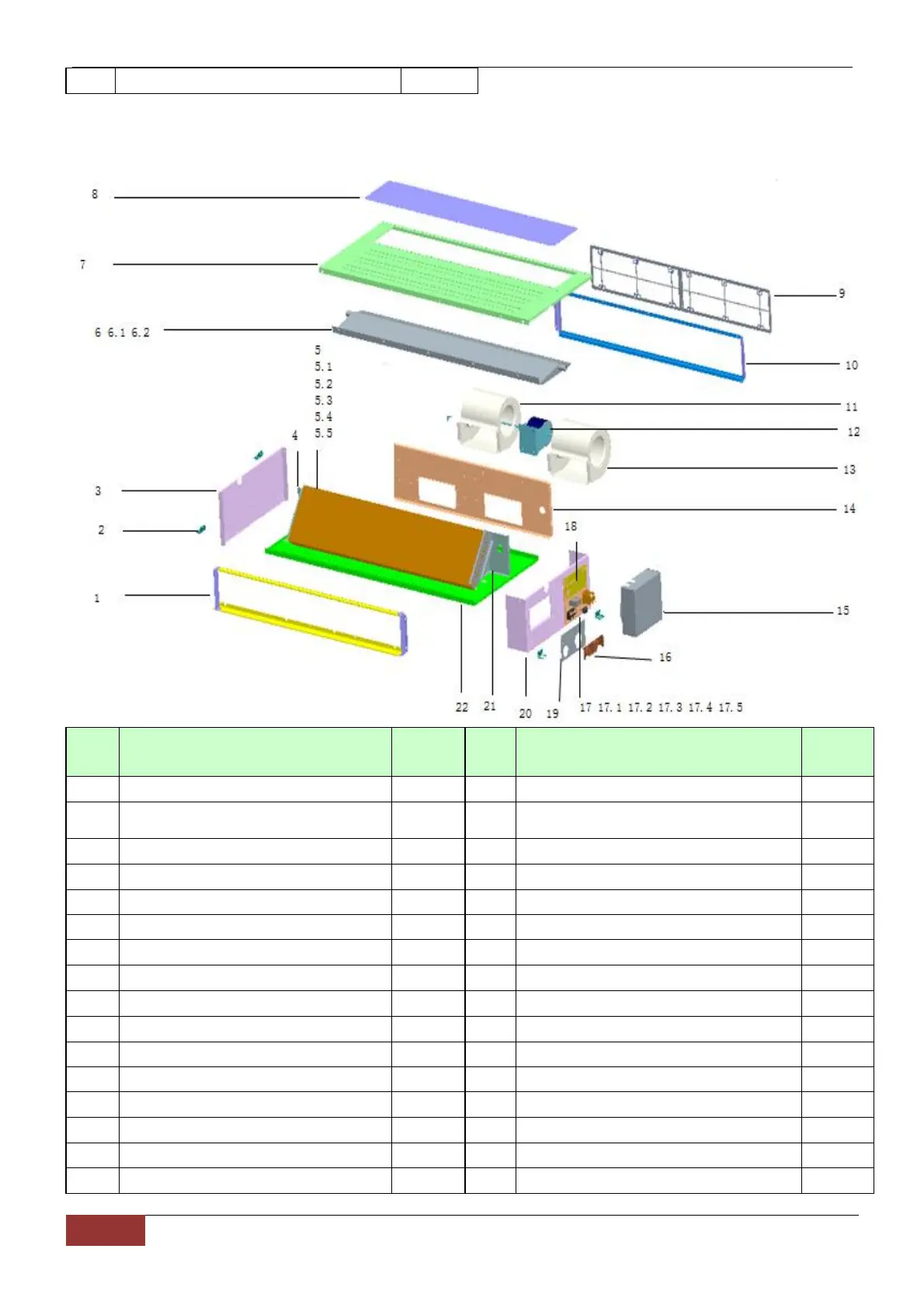

Upper scroll case
4
13.3 CTB-18HR1, CTB-24HR1
No.
Part Name
Quantity
No.
Part Name
Quantit
y
1
outlet assy
1
11
scroll case(left)
1
2
hanger
4
12
Fan motor
1
3
left clapboard
1
13
scroll case(right)
1
4
Left end plate of Evaporator
1
14
Fan fixing board assy
1
5
Evaporator assy
1
15
E-parts box cover assy
1
5.1
Transition tube
6
16
Small cover plate
1
5.2
Shunt assy
1
17
E-parts
1
5.3
air header assy
1
17.1
Main control board
1
5.4
Evaporator
1
17.2
Temperature sensor
1
5.5
Probe copper tube
1
17.3
PTC transformer
1
6
Welding assy for water collector
1
17.4
Terminal
1
6.1
leading
2
17.5
NO.7Line pressing buckle
2
6.2
effluent joint rubber cap
2
18
E-parts box base
1
7
Lower plate
1
19
big cover plate
1
8
Return air damper
1
20
Right clapboard
1
9
filter screen
2
21
Right end plate of Evaporator
1

Chigo CCB-18HR1 Specifications

General

Brand	Chigo
Model	CCB-18HR1
Category	Air Conditioner
Language	English
