Chigo CCB-18HR1 User Manual

R410A50Hz Universal Outdoor Series Technical Manual Duct Type Indoor Unit
87
GD Chigo Heating & Ventilation Equipment Co., Ltd.
10

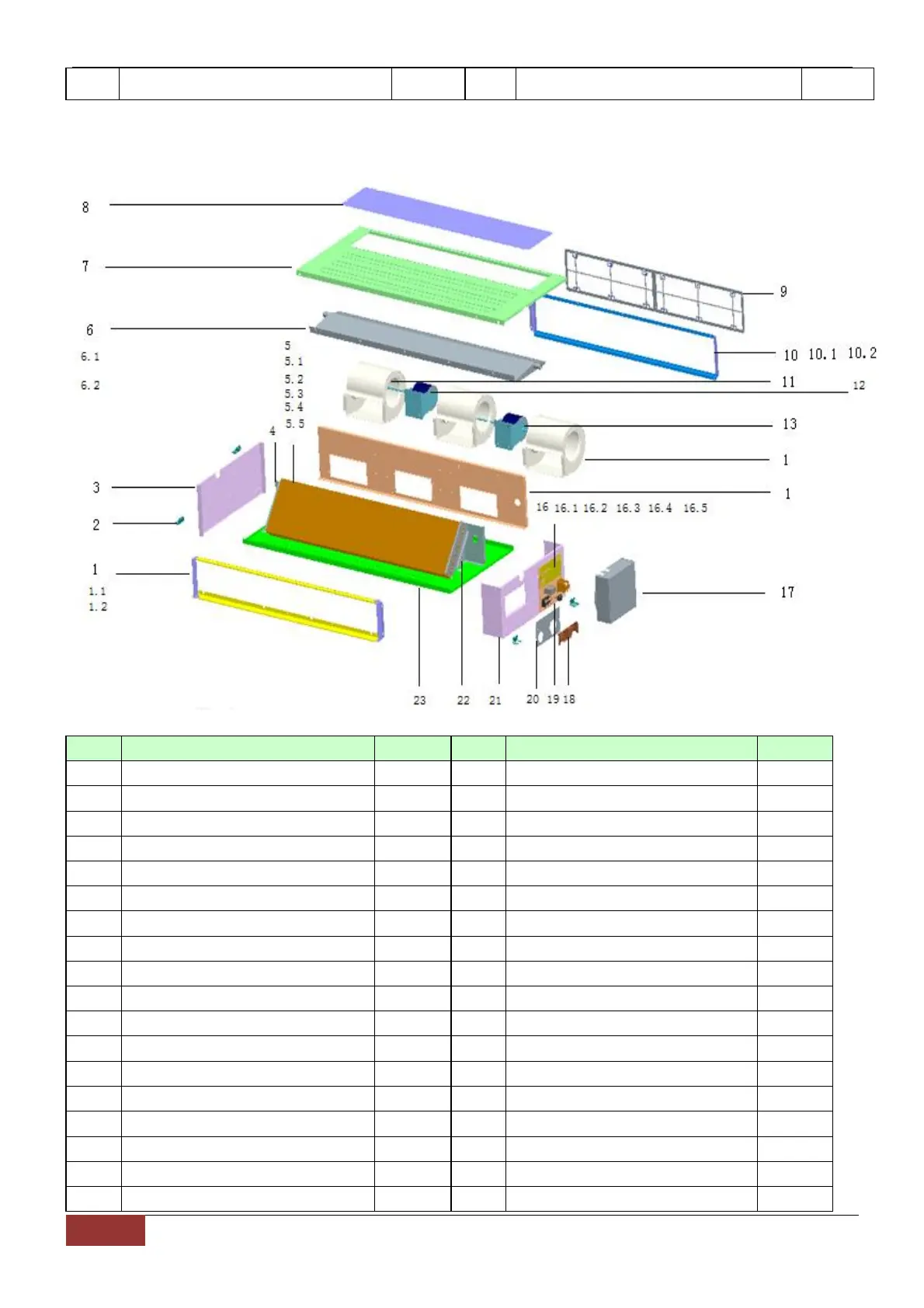

Return air assy
1
22
Upper plate
1
13.4 CTB-36HR1, CTB-48HR1, CTB-60HR1
No.
Part Name
Quantity
No.
Part Name
Quantity
1
outlet assy
1
10.2
return air left-right rail
2
1.1
outlet left-right rail
2
11
scroll case(left)
1
1.2
outlet upper-lower rail
2
12
Fan motor
1
2
hanger
4
13
Fan motor
1
3
left clapboard
1
14
scroll case(right)
2
4
Left end plate of Evaporator
1
15
Fan fixing board assy
1
5
Evaporator assy
1
16
E-parts
1
5.1
Transition tube
5
16.1
Main control board
1
5.2
Shunt assy
1
16.2
Temperature sensor
1
5.3
air header assy
1
16.3
PTC transformer
1
5.4
Evaporator
1
16.4
Terminal
1
5.5
Probe copper tube
1
16.5
NO.7Line pressing buckle
2
6
Welding assy for water collector
1
17
E-parts box cover assy
1
6.1
leading
2
18
Small cover plate
1
6.2
effluent joint rubber cap
2
19
E-parts box base
1
7
Lower plate
1
20
big cover plate
1
8
Return air damper
1
21
Right clapboard
1
9
filter screen
2
22
Right end plate of Evaporator
1
