5.Insulation Work
5.1 Insulation material and thickness
5.1.1. Insulation material
Insulation material should adopt the material which is able to endure the pipe’s temperature: no
less than 70℃ in the high-pressure side, no less than 120℃ in the low-pressure side(For the
cooling type machine, no requirements at the low-pressure side.)
Example: Heat pump type----Heat-resistant Polyethylene foam (withstand above 120℃)
Cooling only type----Polyethylene foam (withstand above 100℃)
5.1.2. Thickness choice for insulation material
Insulation material thickness is as follows:

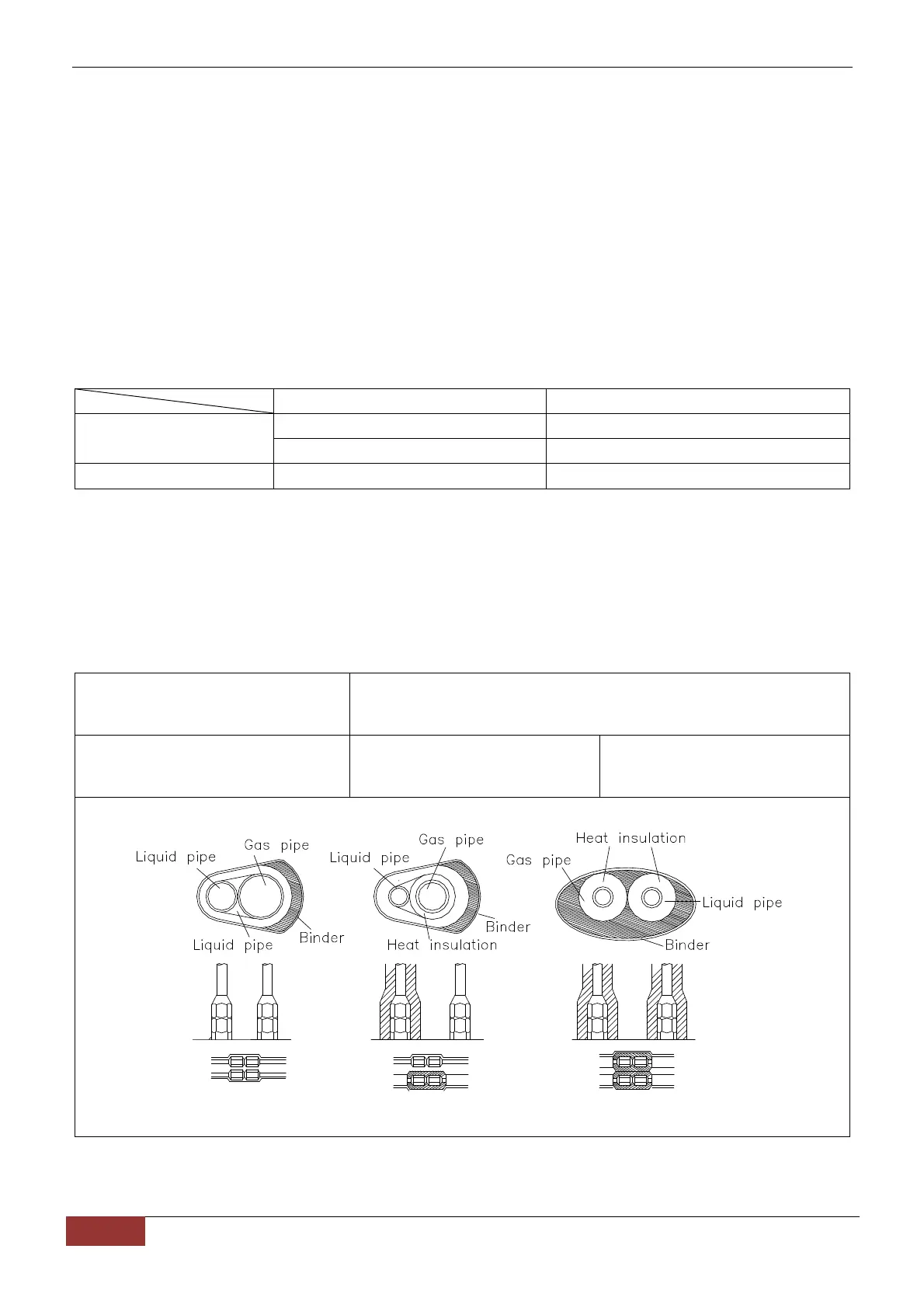

Adiabatic material thickness
5.2 Refrigerant pipe insulation
5.2.1. Work Procedure
① Before laying the pipes, the non-jointing parts and non-connection parts should be heat
insulated.
② When the gas proof test is eligible, the jointing area, expanding area and the flange area should
be heat insulated
5.2.2. Insulation for non-jointing parts and non-connection parts
Gas pipe and liquid pipe should
not be put together to insulate
Insulate the gas pipe
(cooling only)
Insulate the gas pipe and
liquid pipe
