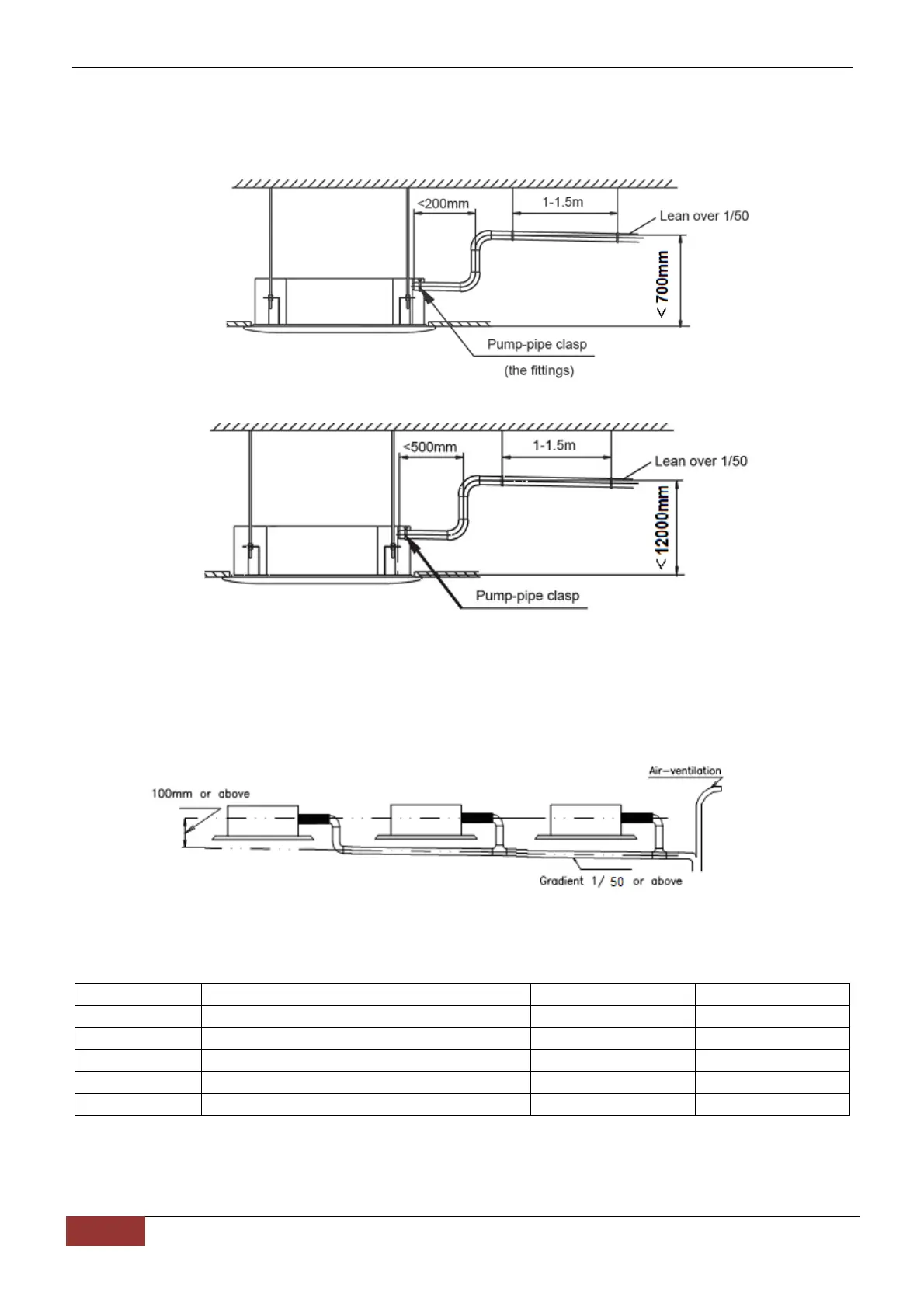

4.3 Upwards drainage (drain pump)
For Four-way cassette(compact)
For Four-way cassette
4.4 Convergent drainage
4.4.1. The number of indoor units should be as small as possible to prevent the traverse main pipe
overlong.
4.4.2. Indoor unit with drain pump and indoor unit without drain pump should be in different
drainage system.
4.4.3. Selecting the diameter
Number of connecting indoor units→Calculate drainage volume→Select the diameter
Calculate allowed volume =Total cooling capacity of indoor units(HP)×2 (l/ hr)
Allowed volume(lean 1/50) (l/ hr)
