Chigo CCB-18HR1 User Manual

R410A50Hz Universal Outdoor Series Technical Manual Duct Type Indoor Unit
89
GD Chigo Heating & Ventilation Equipment Co., Ltd.
9.1
Main control board
1
15.3
scroll case(right)
1
9.2
Transformer
1
16

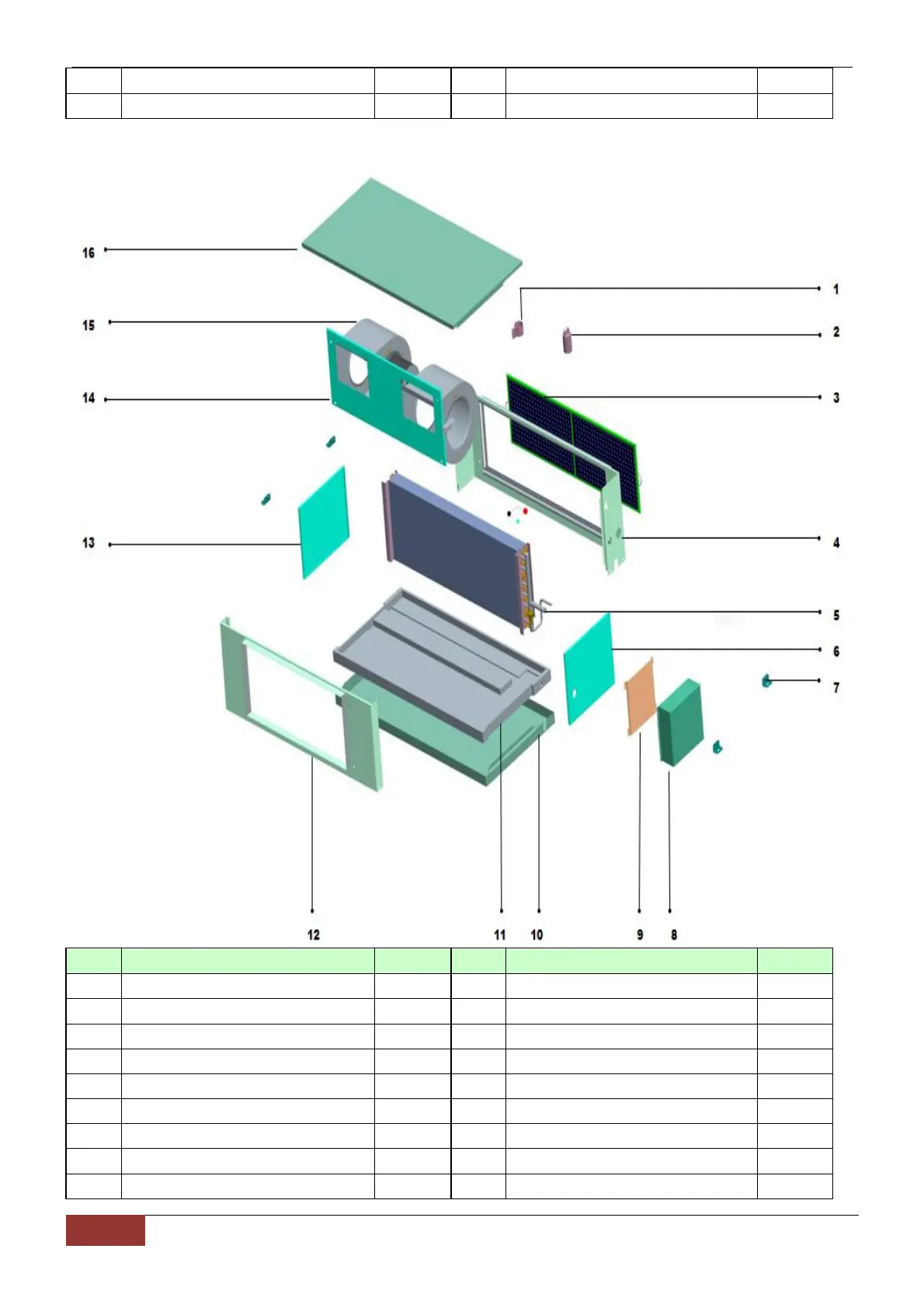

up panel assembly
1
13.6 CTB-60HR1-B, CTH-60HR1
No.
Part Name
Quantity
No.
Part Name
Quantity
1
capacitance clamping
1
9.3
Terminal
1
2
compressor capacitor
1
10
chassis parts
1
3
filter
2
11
foam water collector
1
4
back panel
1
12
front panel assembly
1
5
Evaporator assemble
1
13
left clapboard
1
6
Right clapboard
1
14
Fan fixing board assy
1
7
hanger
4
15
fan assy
1
8
E-parts box cover assy
1
15.1
fan motor
1
9
E-parts
1
15.2
scroll case(left)
1
