Part 3 - Installation
2.1 Installation space selection
(1) Install the outdoor unit at a place where discharge air is not blocked. When an outdoor unit is installed in a place that is
always exposed. There also should be enough space for installation and maintenance.
(2) To a strong wind like a coast or on the high store of a building, secure a normal fan operation by using a duct or a wind
shield.
(3) When installing the outdoor unit in a place that is constantly exposed to a strong wind such as the upper stairs or
rooftop of a building, apply the windproof measures referring to the following examples.

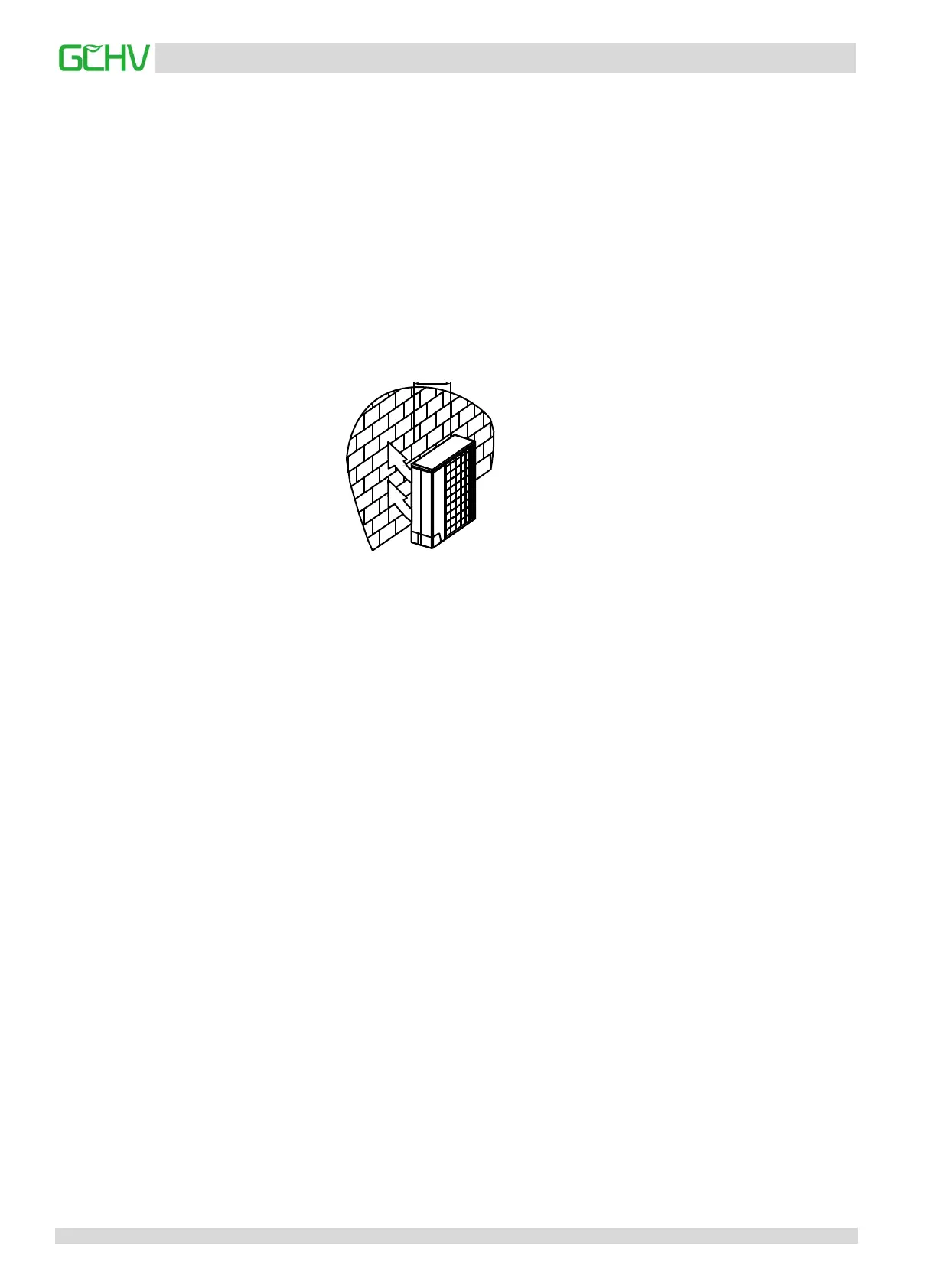

(4) Install the unit so that its discharge port faces to the wall of the building. Keep a distance 2000mm or more between the
unit and the wall surface.
(5) Supposing the wind direction during the operation season of the discharge port is set at right angle to the wind
direction.
(6) Do not install the unit in a place full of machine oil.
(7) Do not install the unit in a place where high-frequency radio waves are likely to be.
2. Outdoor Unit Installation
2000
2.2 Hoisting of outdoor unit
(1) Don't remove any package upon hoisting. Two ropes (more than 8cm) shall be used to hoist the well-packaged machine
stably and safely. If there is no package or the packaging material is broken, use some backing plates or packaging materials
to protect the machine.
(2) The outdoor unit shall be carried and hoisted vertically, within an inclination of less than 15 degrees. Care should be
taken to safety during carrying and hoisting the machine.
(3) The gravity of the machine is not in the center, so be careful to hoist the machine.
(4) Don't hold the suction inlet of the housing, or it will be deformed.
