CHV Mini VRF 50/60Hz
84 201908
CHV Mini Series Service Manual

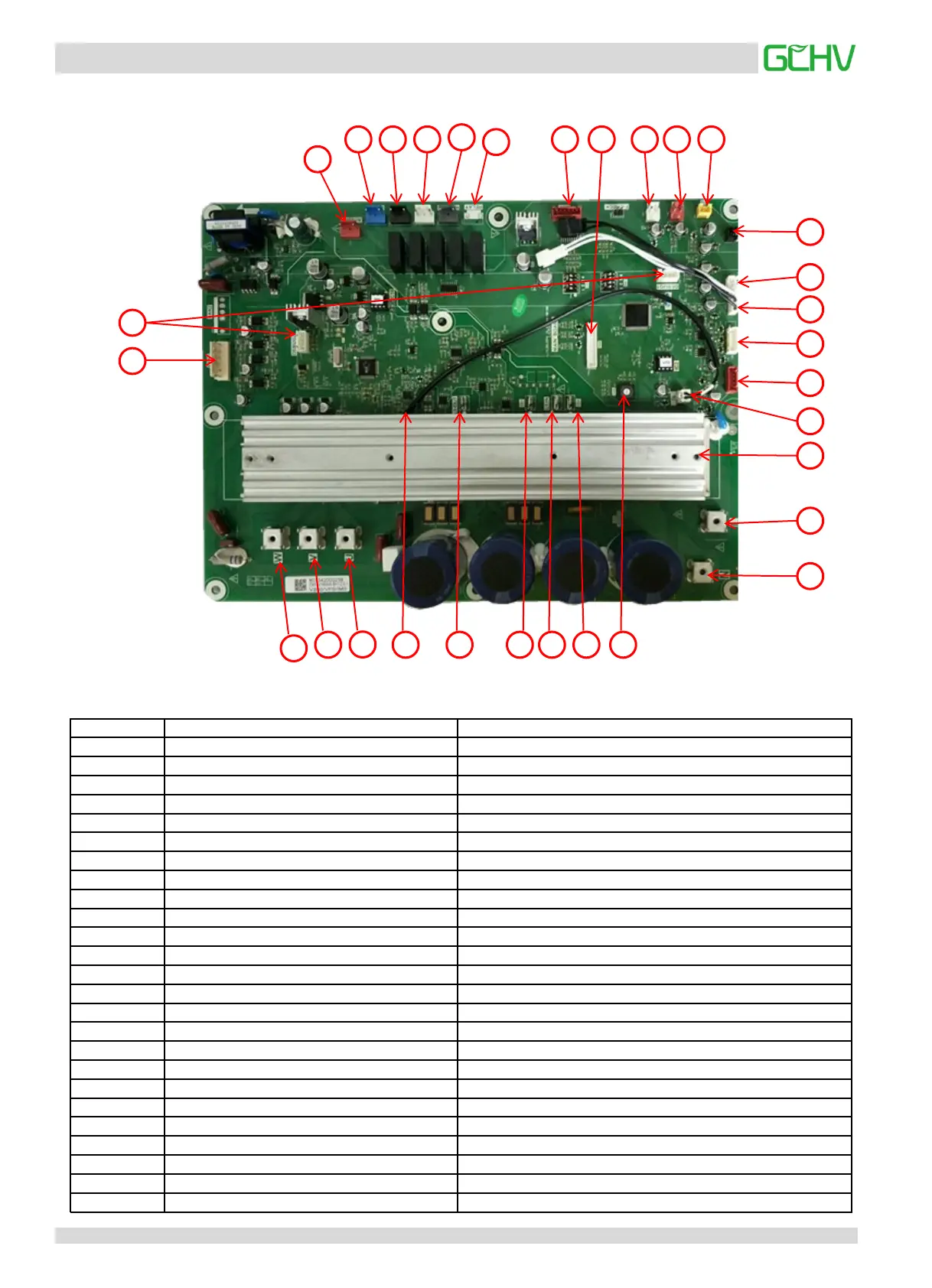

2. PCB Ports Instructions
PCB ports instruction:
No. Content Remark
1 AC220V 220V AC output interface
2 4-WAY 4-way valve interface
3 SV2 Injection cooling valve interface
4 SV3 Low temp. heating bypass valve interface
5 HEAT Electric heating interface
6 RLY Relay
7 EXV Electronic expansion valve interface
8 CN26 Terminal for inspection signal wire
9 LP Low pressure switch signal
10 HP High pressure switch signal
11 T7 Refrigerant heat pipe temperature
12 T3B Condenser middle temperature
13 T5 Compressor exhaust temperature
14 T3&T4 Condenser outlet/ Ambient temperature
15 COMM Terminal for communication signal wire
16 CN24 Filter board control interface
17 T6 Radiator temperature
18 Refrigerant radiator Available for 12.5-16kW
19 L ----
20 N ----
21 U Inverter compressor
22 V Inverter compressor
23 W Inverter compressor
24 FAN1 Fan interface
25 DEBUG 1/2 ----
1
1
1
2
1
3
1
4
1
5
1
6
1
7
1
9
1
10
1
11
1
13
1
14
1
15
1
16
1
18
1
19
1
20
1
17
1
12
1
8
1
21
1
22
1
23
1
24
1
25
1
26
1
27
1
28
1
29
1
30
1
31
