2.2 Outdoor Units

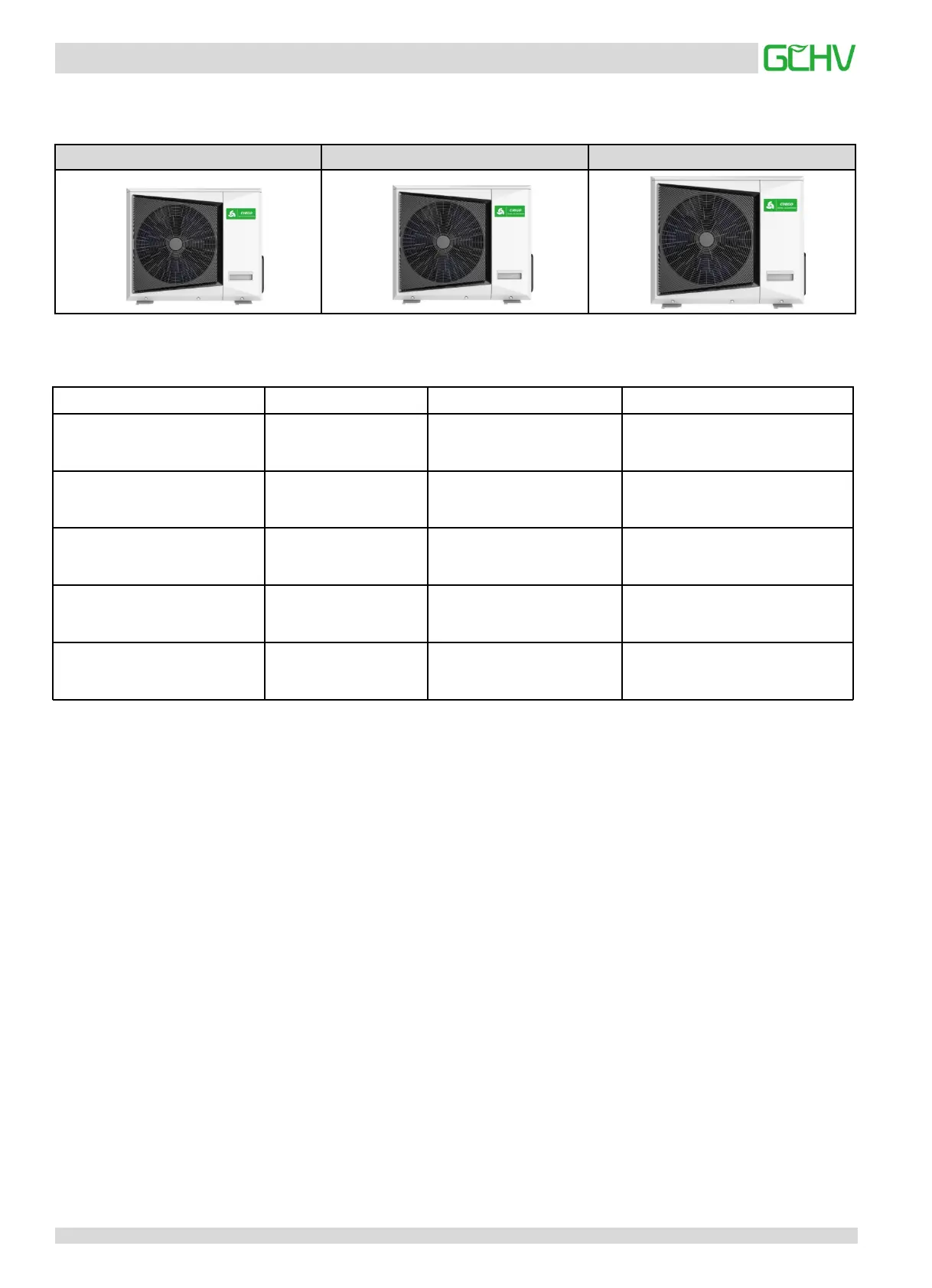

Table 1-2.2: Outdoor unit appearance
8kW 10kW 12.5/14/16kW
Model name Net dimension(mm) Net/Gross weight (kg) Power supply
CHV-DH080W/R1
Width:935
Height: 702
Depth:383
47/50 220~240V/1N/50Hz
CHV-DH100W/R1
Width:1032
Height: 810
Depth:445
60/65 220~240V/1N/50Hz
CHV-DH125W/R1
Width:1100
Height: 870
Depth:528
85/95 220~240V/1N/50Hz
CHV-DH140W/R1
Width:1100
Height: 870
Depth:528
90/100 220~240V/1N/50Hz
CHV-DH160W/R1
Width:1100
Height: 870
Depth:528
90/100 220~240V/1N/50Hz
Table 1-2.3: Outdoor unit specification
