Chigo CHV Mini Series - Page 73

CHV Mini VRF 50/60Hz
72 201908
CHV Mini Series Service Manual

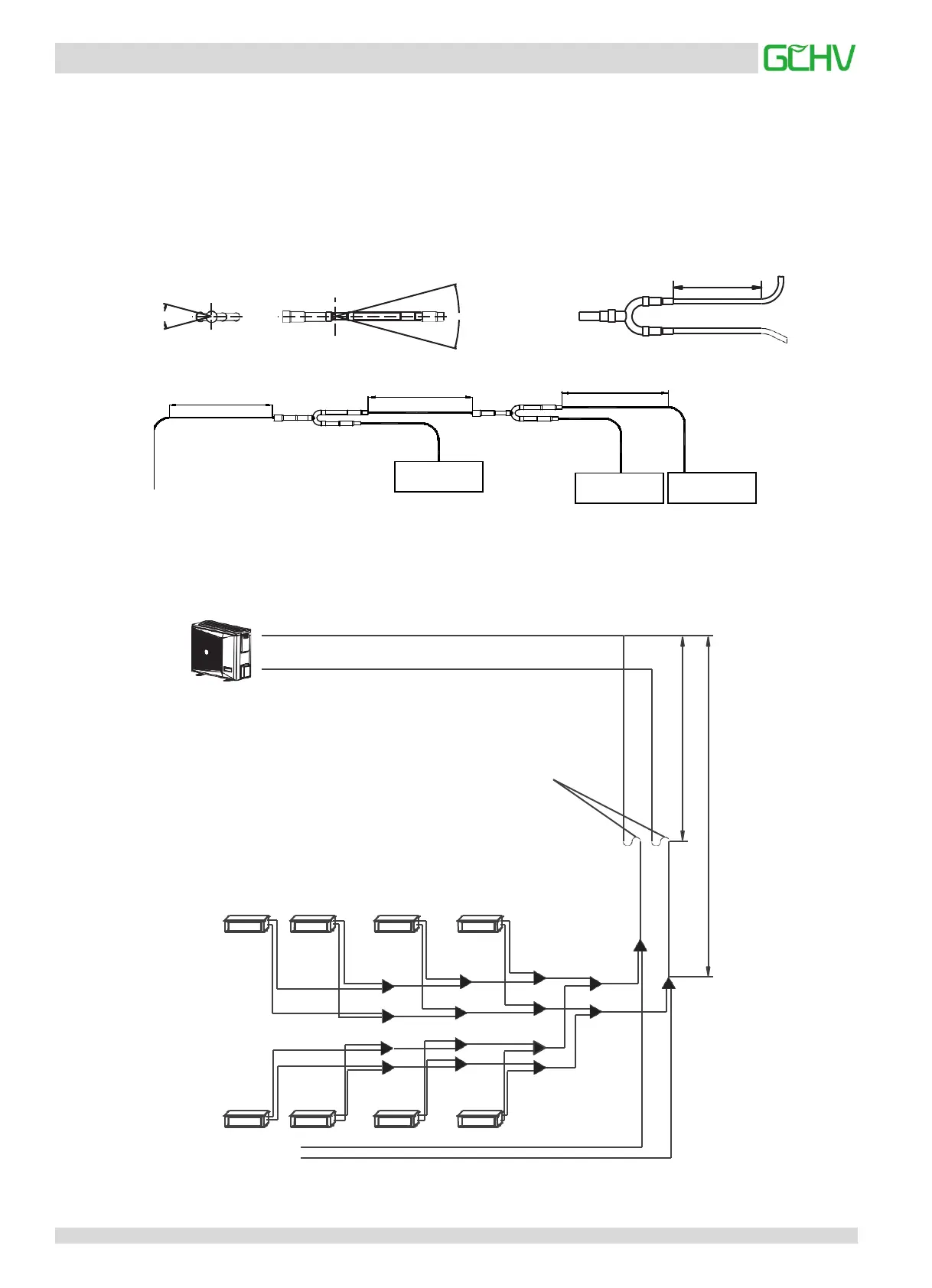

3.6 Installation of distributor
Direction A Direction B
±10°
±10°
＞0.8m
(1) The distributor shall use U-type or Y-type, instead of T-type.
(2) The distributor shall be installed horizontally, with the deviation angle of no greater than ± 10℃.
(3) The distributor cannot be turned directly, with the straight pipe of no less than 0.8m.
Oil return bend
High pressure liquid pipe
Low pressure gas pipe
Connecting to the first set of indoor units
8m
16m
Outdoor unit (set)
3.7 Oil return bend settings
Connecting to the second set of indoorunits
>0.5m
>1
m
>
1
m
Indoor unit
Indoor unit
Indoor unit
