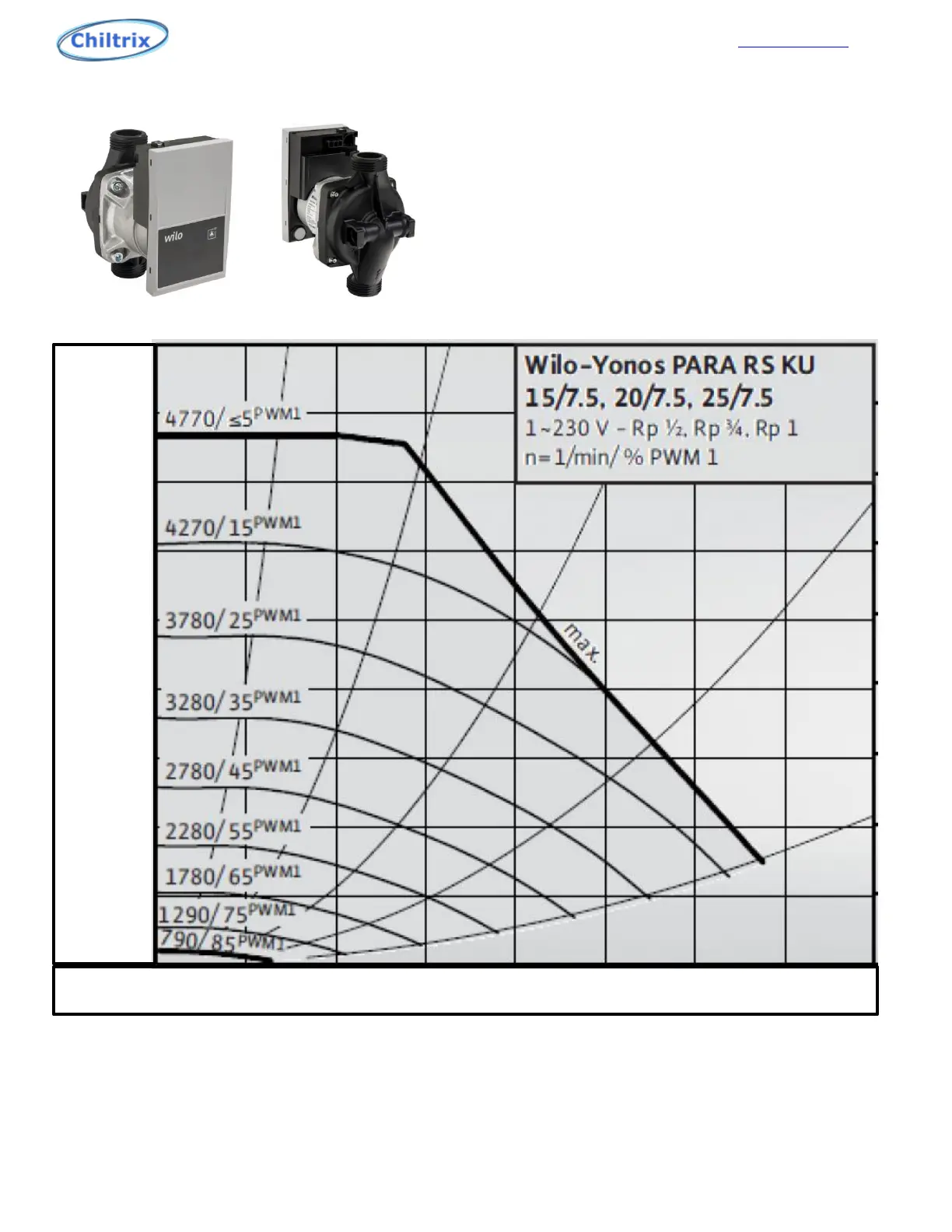

Chiltrix CX34 Internal Pump:
Wilo Yonos PARA RS 25/7.5 PWM1 Ku
Head/Ft.
GPM
26.2
22.9
19.6
16.4
13.1
9.8
6.5
3.2
2.2 4.4 6.6 8.8 11 13.2 15.4
Dark Black Line = Chiltrix Pump (25/7.5)
Examples:
If required flow is 4.4 GPM, the maximum allowed head would be 22.9 Ft.
If required flow is 6.6 GPM, the maximum allowed head would be 22.9 Ft.
If required flow is 8.8 GPM, the maximum allowed head would be 18.0 Ft.
Note: The CX34 unit adds max 6 ft. head. A booster pump may be needed for non-optimal
designs, longer piping distances, dual or triple CX34s, other complex or larger systems.
