Chiltrix Inc. www.chiltrix.com
Standard Controller (Included with all Cx34 Units)
1. Functions and features
Cooling, Heating, DHW, cooling + DHW, heating + DHW mode of operation options, automatic fault
detection, alarm processing, and energy control.
1. The 4-conductor control cable can be extended up to 300 feet of 20 AWG or larger.
2. The controller handles all input and output signals, and system status to ensure that the unit is stable
and reliable.
3. Full-touch color LCD display.
4. Modes and other factory parameter settings are entered directly on the LCD screen.
5. 100 fault records can be stored and retrieved to show the details of each fault that may occur.
6. All of the switch input / outputs can be directly observed on the LCD control panel making
commissioning convenient.
7. The LCD display is wall-mountable.

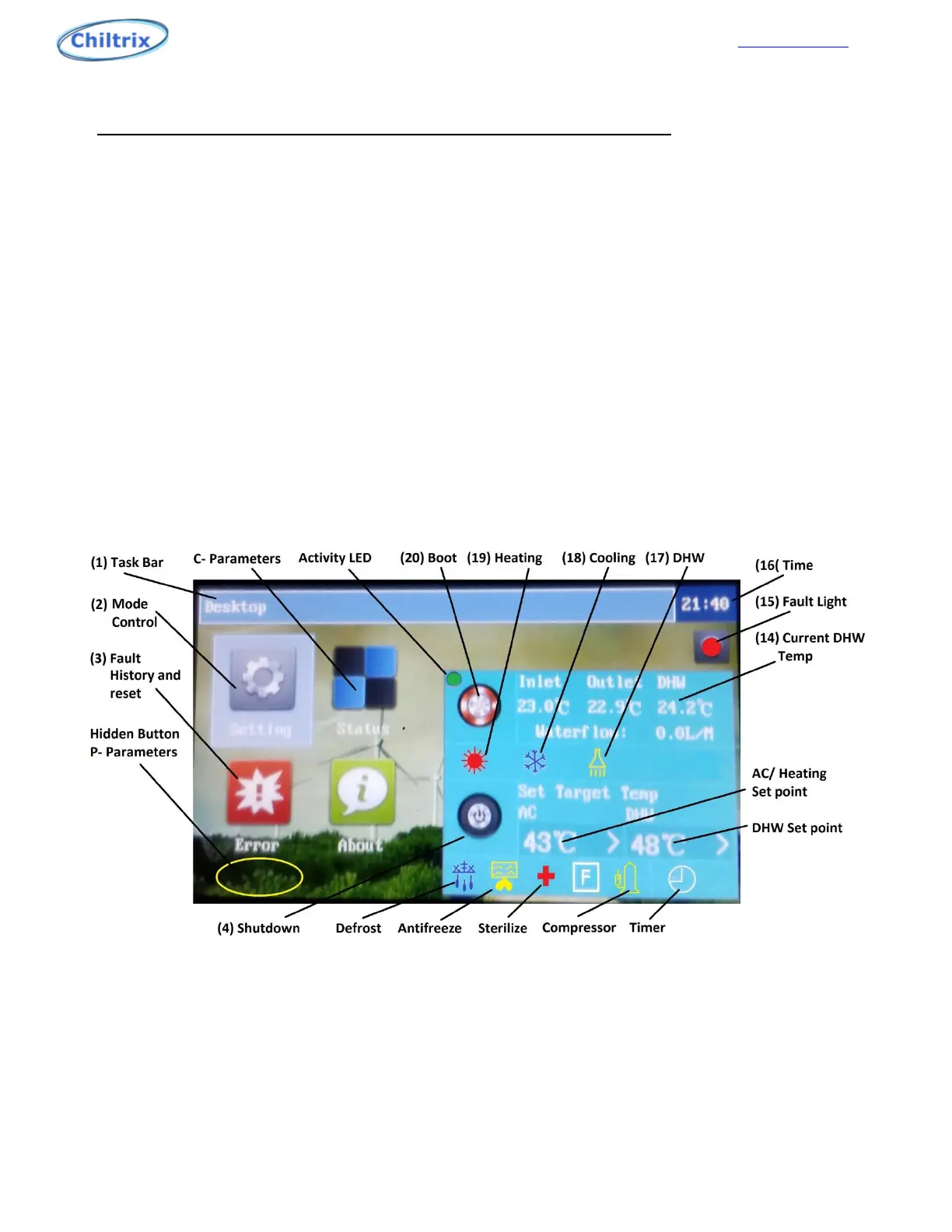

(1) Taskbar: shows the current running applications, and the time. Clicking on the different
application boxes will switch to different applications.
(2) Main window: Displays the main window of the application that is currently running.
(3) Application icon: A desktop application that first highlights the icon when it is first clicked, and then
clicked again to launch the application.
30
