7 ABOUT

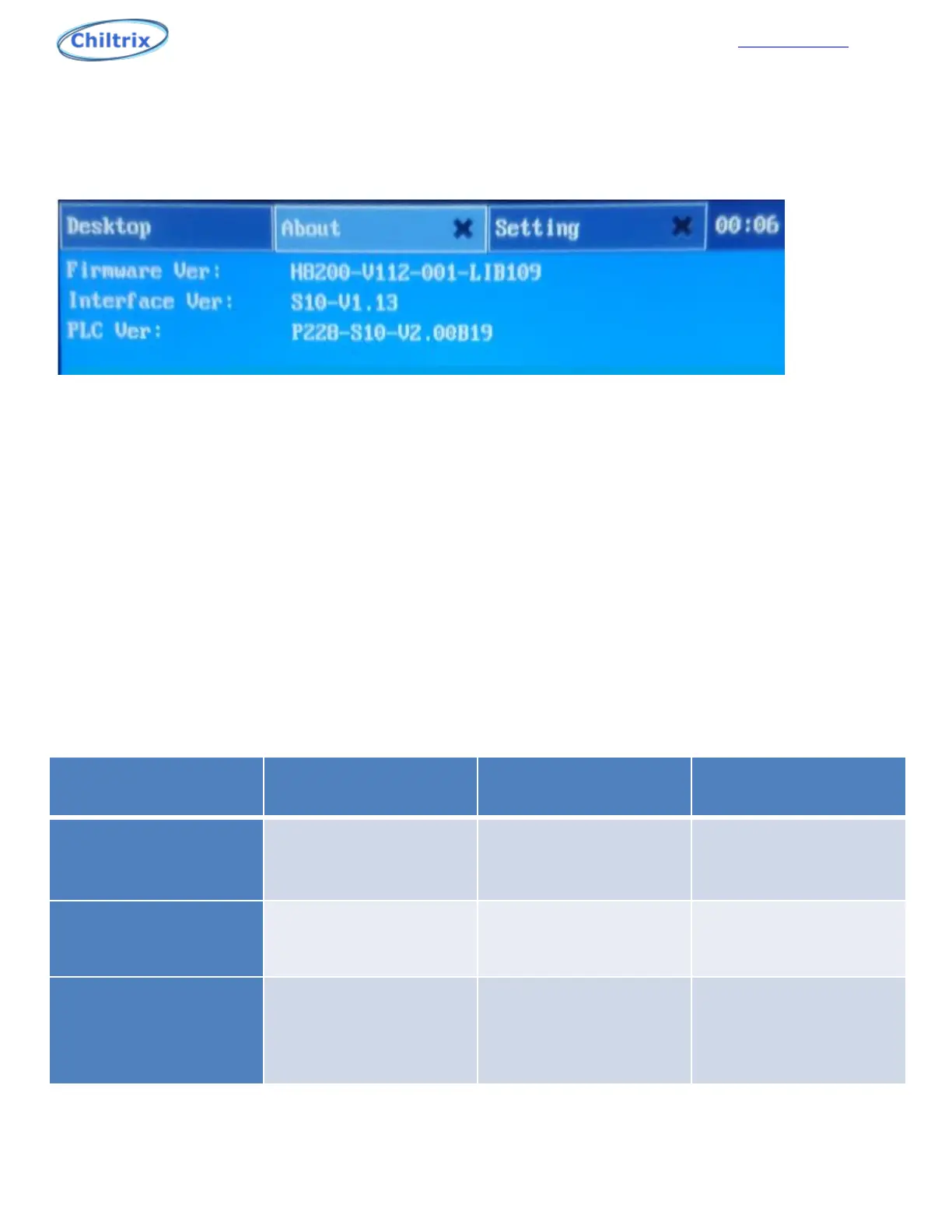

The interface displays the touch screen and PLC version information, as shown in Figure 7-1.
Figure 7-1
8 INITIAL TEMPERATURE SETTINGS
*Note – All set points refer to the CX34 return (inlet) temperature, and implies a leaving (outlet)
temperature of ~10°F cooler(cooling)/warmer(heating) than what you set.
For example if you want heating output to be ~100°F you would set the heating target to 90°F. Default
setting for cooling should be 54°F, therefore the leaving (outlet) temperature would be around 44°F.
Standard settings would be as follows: Heating, set at 30°c (86°F) return for radiant (for ~supply temp of
95F) , or 35°C (95°F) return for fan coils or fan coils + radiant (for ~ supply temp of 105F).
For cooling mode the standard setting would be 12°C (54°F) to get ~44°F outlet temperature.
Detailed settings as follows:
N0.
Meaning
Selected temperature range
Recommended controller
temperature initial setting
1
Cooling returned
water temp
50°F ~ 77°F 54°F(12C)
2
Heating returned
water temp
50°F ~ 122°F
95°F Fan coils(35C)
85°F for radiant(30C)
3 DHW temp 50°F ~ 122°F
122°F (50C)
MAKE SURE TO READ THE
CHILTRIX
TANK MANUAL BEFORE
ENABLING DHW
NOTE:
The lower the heating setting used, the higher the system COP. The higher the cooling setting used,
the higher the EER.
