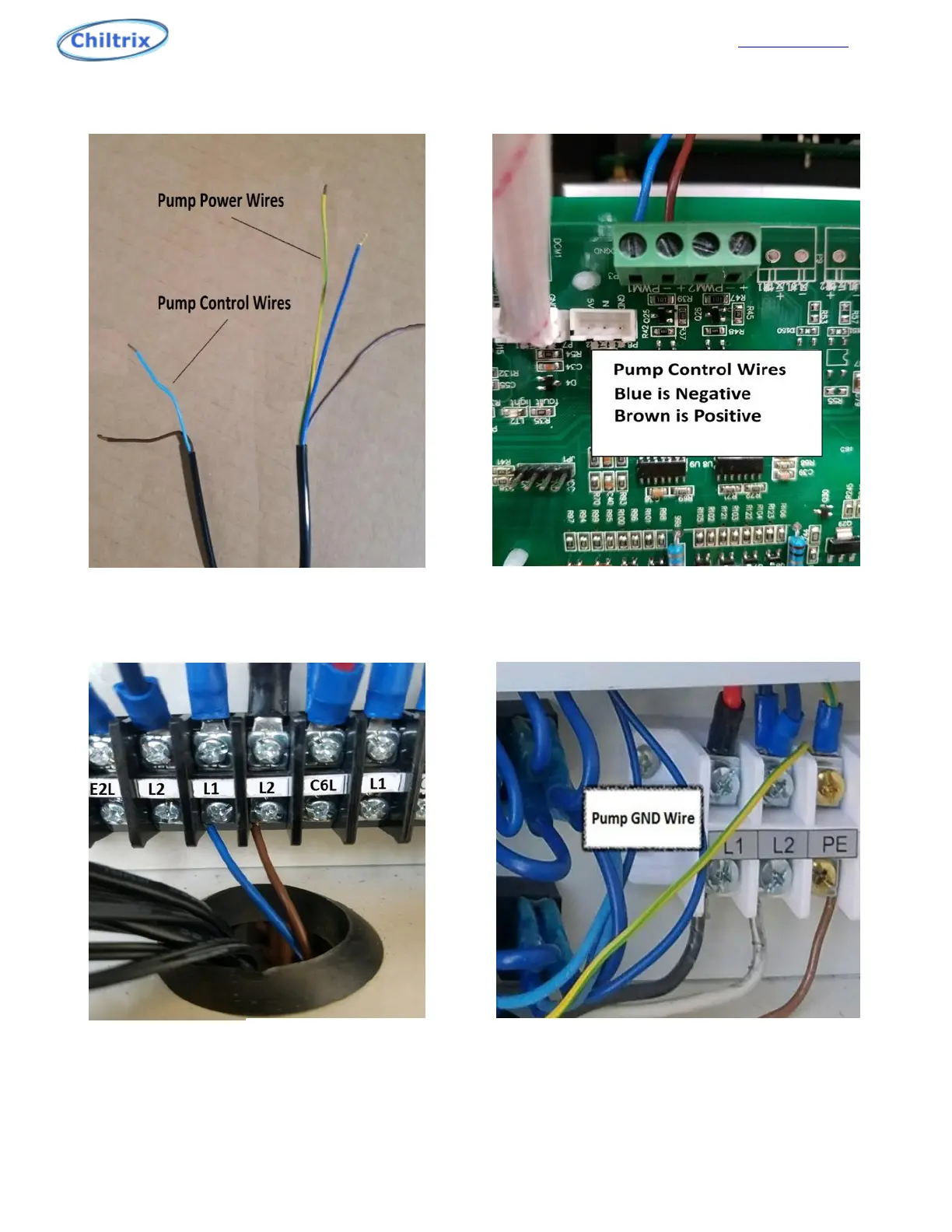

The blue and brown pump CONTROL WIRES are connected to the (+ & -) on
the PWM1 terminal connector at the top or the main control pcb.
Pump POWER wires. Pump GROUND wire.
