NVF5 Series User Manual Chapter 4 Integral Keypad
4.3 Parameter Menu Mode
4.3.1 Parameter Menu Mode Description
For user quickly find and use parameter codes，NVF5 has three types of parameter
menu mode.
Simple Parameter Menu：Include some basic commissioning parameters（See
Chapter 5-Simple Menu Description） ，suitable for basic applications.
Custom Parameter Menu：Users can tailor select parameters according to their
application.There is no parameter when default mode,users can configure by custom
operation.See Chapter 4.3.3
Engineering Parameter Menu：Users can find all inverter parameters（See Appendix
B，open for qualified personnel to conduct professional commissioning.See Charpter 6
4.3.2 Menu Mode Selection
The inverter has three types of parameter menu modes，default is simple mode.Users
can select parameter menu mode by changing parameter F7.11 or combinational key
（PRG/S key+SET key）.
（1） Change parameter menu mode by combinational key：
Ready Status：
5.00Hz Flash
5.00
Keep pressing key
Then press key
U-1
Press
U-3 U-
3
5.00
Press
Press
Press
Press

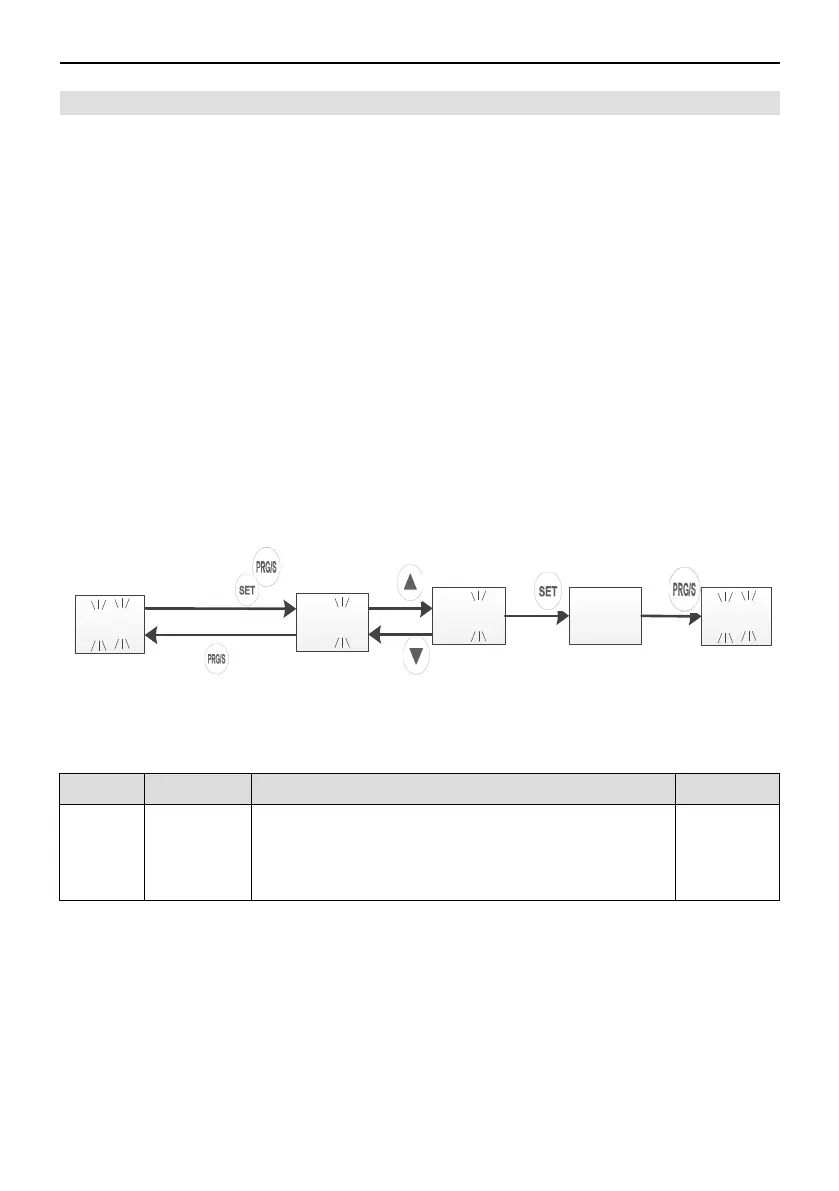

Figure 4-3-1 Combinational Key
（2）Select by changing parameter F7.11
Table 4.5 Menu Mode Selection
Code
Name
Parameter Description
Default
F7.11
Menu
Mode
Selection
1、 Simple Menu Mode（U-1）；
2、 Custom Menu Mode（U-2）；
3、 Engineering Menu Mode（U-3）；
1
Changing menu mode in simple menu state example：
