Chord Hugo 2 User Manual

Chord Electronics
Hugo 2 | User manual
8
6 Connectivity

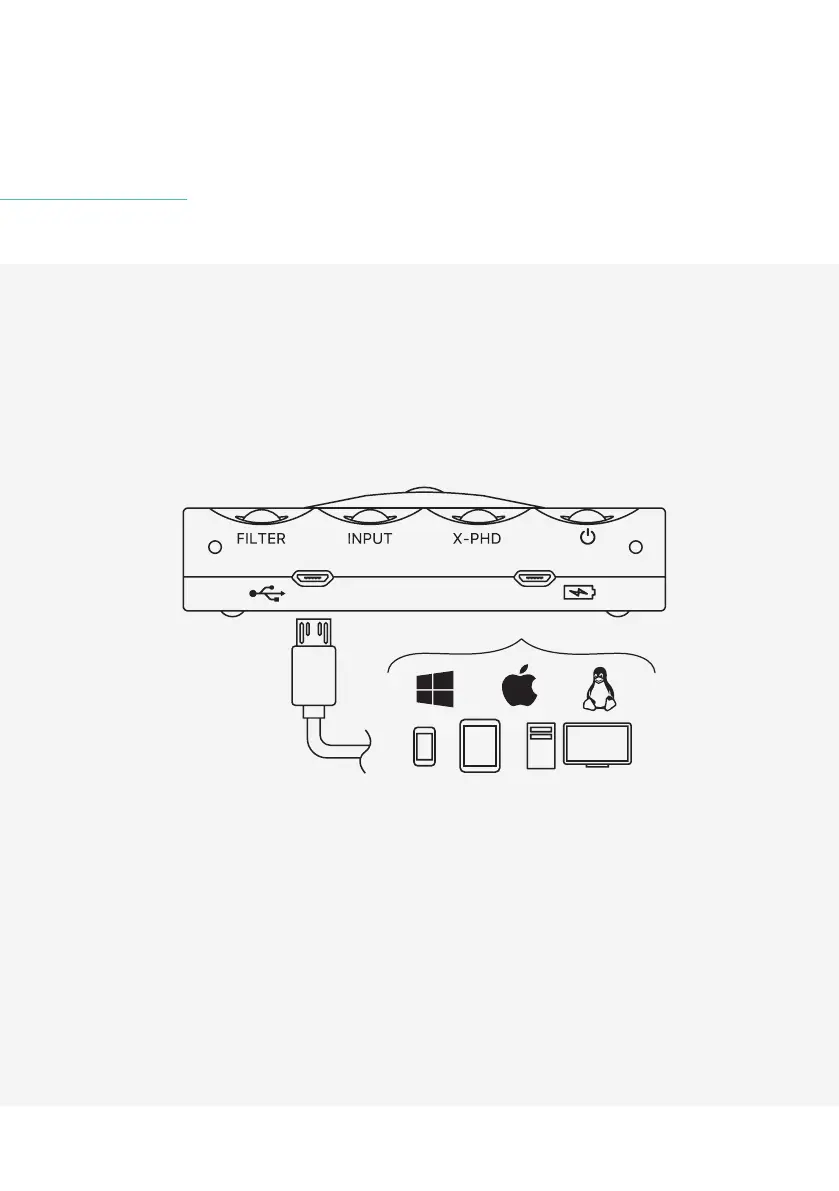

The Hugo 2 benefits from several digital inputs, including Micro USB, optical, coaxial, and for
convenience, Bluetooth. The coaxial mini-jack input also supports ‘Dual data mode’ (with a dedicated
cable), for use with the Hugo M Scaler (upscaler), enabling 768 kHz files to be input as two separate (L
and R) 384 kHz data streams.
The device oers RCA analogue outputs, plus two headphone outputs: 3.5 mm and 6.35 mm (1/4-inch).

Chord Hugo 2 Specifications

General

Product color	Black
Frequency range	20 - 20000 Hz
Output impedance	0.025 Ω
Channel separation	135 dB
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	126 dB
Total Harmonic Distortion (THD)	0.0001 %
Battery life	7 h
Charging time	4 h
Number of batteries supported	2
Headphone connectivity	3.5mm
Cables included	Micro-USB

Weight and Dimensions

Depth	130 mm
Width	100 mm
Height	21 mm
Weight	450 g
