Features
• Supports Digital Visual Interface (DVI) single-channel
• Supports VESA® Extended Display Identification Data (EDID™)
• Provides an active-loop-through using a DVI connector (conforming to the
DVI Specification)

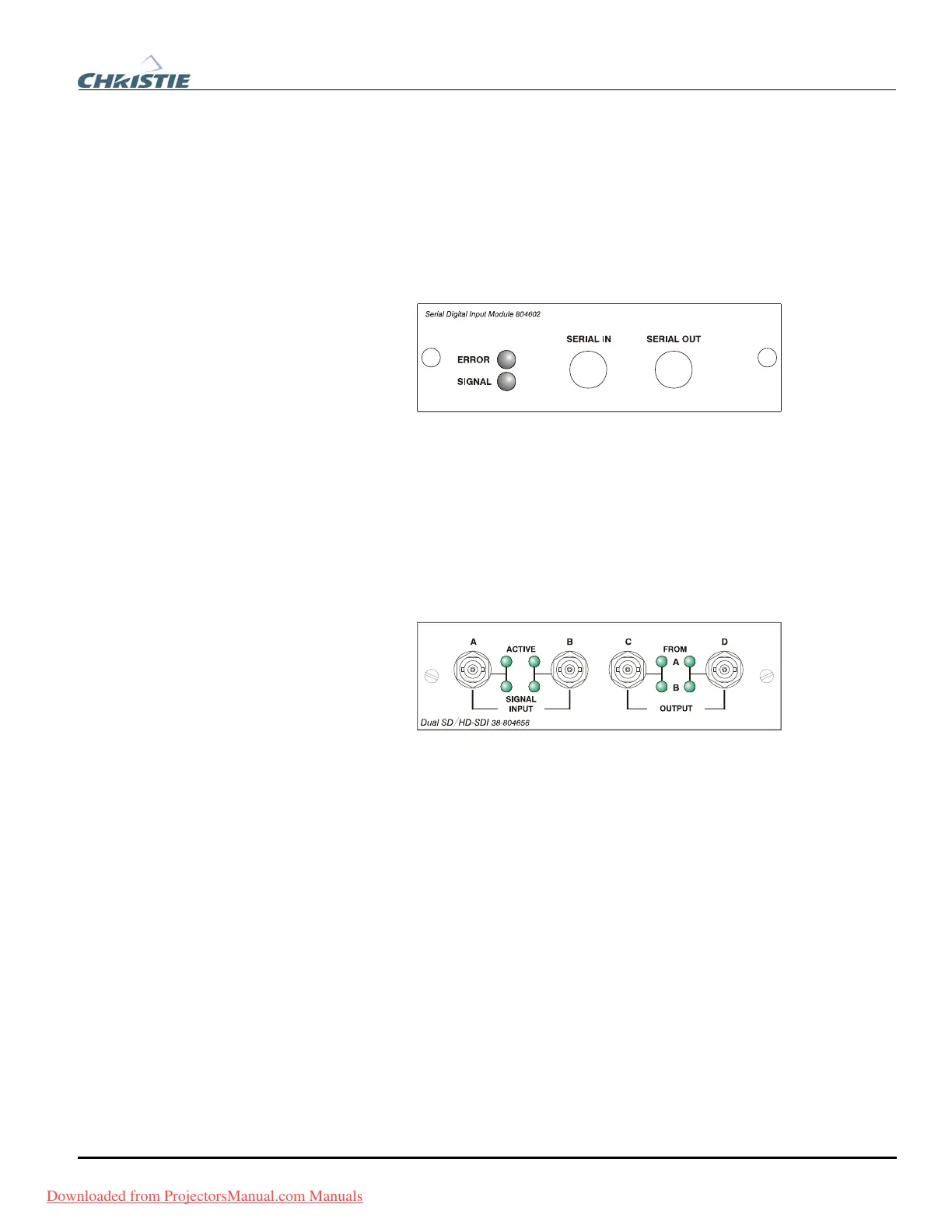

The module accepts a serial digital 4:2:2 component video signal (YCbCr) via a single
SERIAL IN BNC connector. The signal can loop through the SERIAL OUT BNC out to
another device (such as another projector). Inputs are 75
Ω terminated.
SDI Features
• Accepts serial digital 4:2:2 component video (YCbCr)
• Provides both a
SERIAL IN and a SERIAL OUT BNC connector; includes status
LEDs for signal and error
• SMPTE 259M compatible
The Dual SD/HD-SDI Module enables incoming serial digital (SD or HD) data to be
tiled across multiple screen displays, overlapped for extra-bright displays, or
distributed to additional projectors for multiple, same-image screens.
Dual SD/HD-SDI Features
• Accepts and decodes up to two serial digital inputs
• Outputs up to two 10-bit YCbCr 4:2:2 video signals
• Provides input(s) to output(s) loop-through capability
• Supplies interchangeable inputs as part of the Picture-in Picture display
• SMPTE 259M and 372 compatible
Serial Digital Input Module f
38-804602-
x
Dual SD/HD-SDI Module f
38-804656-
x
