Programmable AC Source 61511/61512/61611/61612 Quick Start Guide

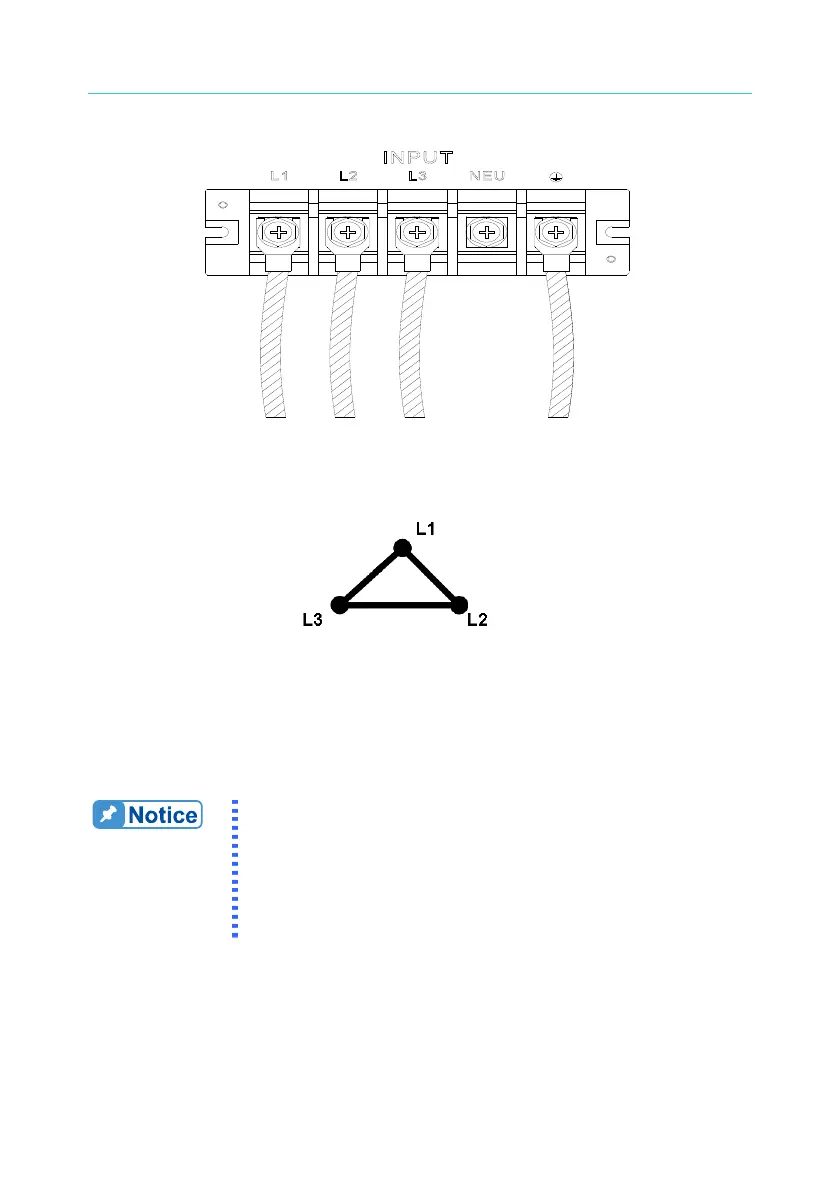

Figure 2-3 3-Phase Power Input Connection (Delta Connection)
Please be aware of the color distinction of insulation
tube or the wire before connecting the power wire. The
black insulation tube or power wire is used for L1, L2
and L3, the blue insulation tube or power wire is used
for NEU while the green insulation tube or power wire is
used for GROUND.
11
