Programmable AC Source 61511/61512/61611/61612 Quick Start Guide
1. Installation of the wire must be conducted by
professional personnel complying with local
electrical codes.
2. If the input wiring selection is 220V 3~ (△ type)
Max 120A/Phase, the specification of Circuit
Breaker configured for △ type needs to be
220Vac/80A (61511) & 120A (61512) at least.
3. If the input wiring selection is 380V 3~ (Y type)
Max 70A/Phase, the specification of Circuit
Breaker configured for Y type needs to be
380Vac/70A (61511) & 90A (61512) at least.
4. This function is not valid for 3-phase voltage input
480Vac(Y: L-L).

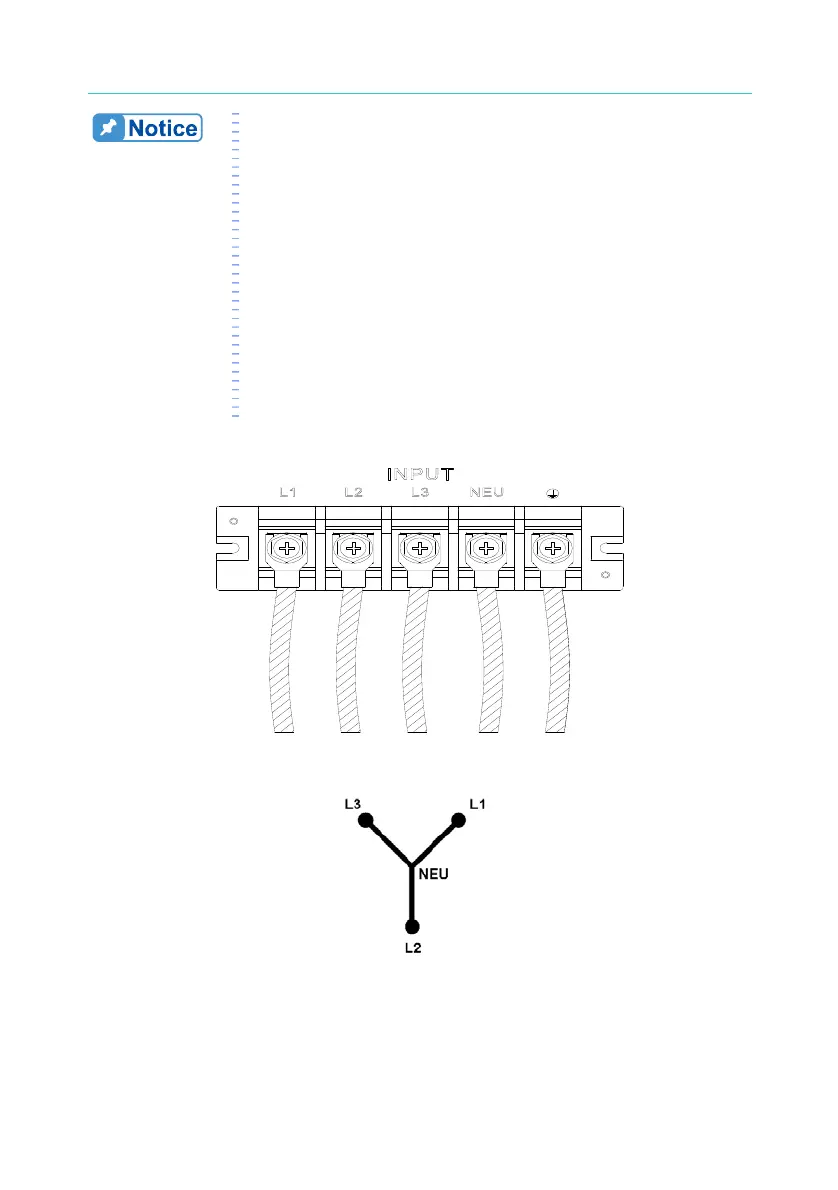

Figure 2-2 3-Phase Power Input Connection (Y Connection)
