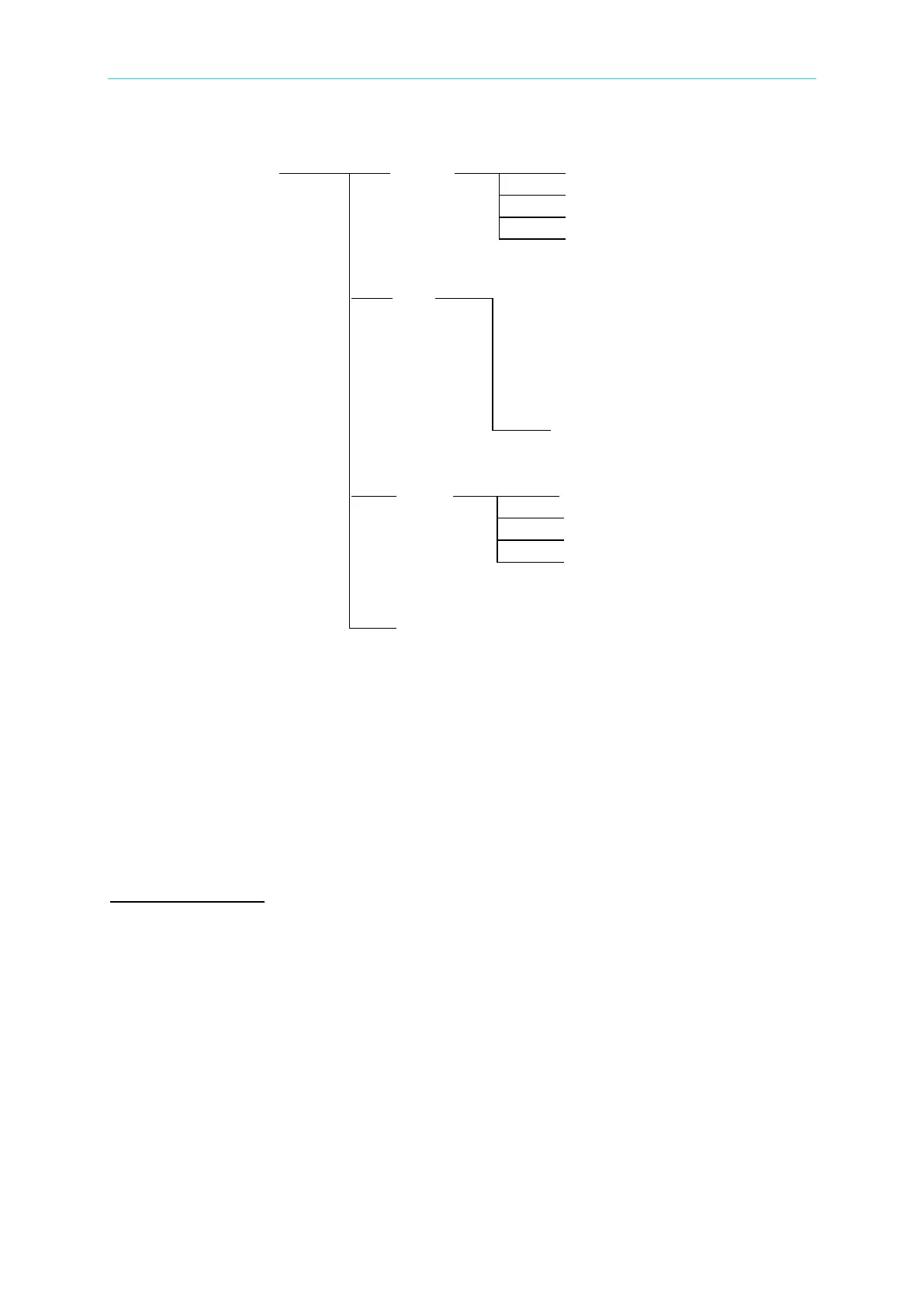

The command tree:
Output setting menu
CONFIG
MORE
SAVE
RECALL
QUIT
DISP
QUIT
SET UP
SYSset
SAVE
RECALL
RUN/PAUSE
QUIT
3. Parameters zone: The remaining area offers information which guides the user to
program the AC source, to view the current status, to collect measurement results, etc.
3.2.2 Data Entry
Before describing each menu, the operations common in the parameters zone will be
explained below:
Movement of Cursor
Use any of the cursor moving keys: , , , to move the cursor to the desired parameter
for programming.
There are two ways for the user to set the parameters. One is in normal mode, and another
in editing mode. The following example is how to set output voltage.
