Navigating the ITC

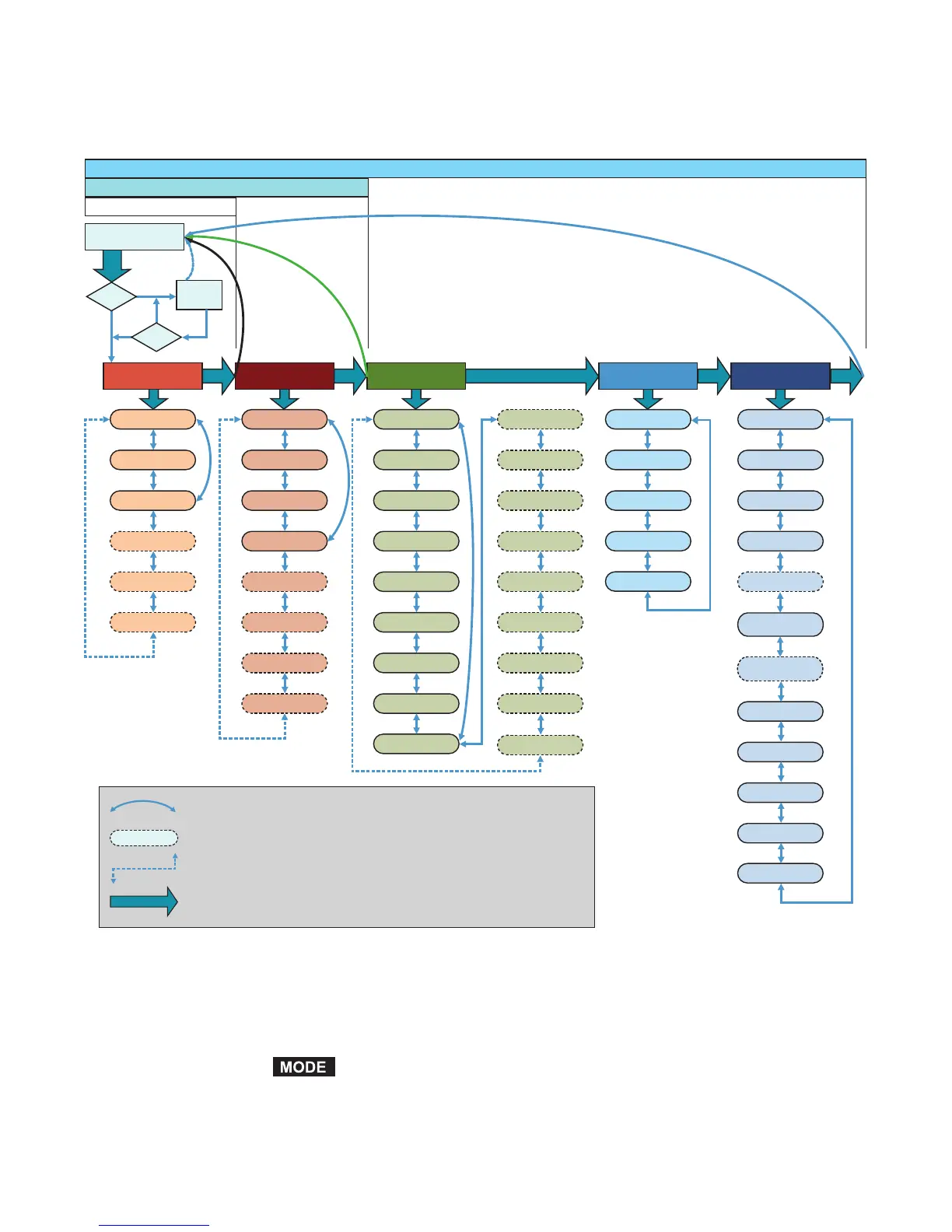

Visually, here is how one navigates through the ITC Menus & Parameters:
The horizontal security level bars, which are above the
ITC Menu & Parameter navigation map, illustrate the
available menus within that security level. The Main Win-
dow is presented when the
button is selected
while the operator is at the last available menu screen
within the current security level.
Security Level 3
Security Level 2
Security Level 1
2. Login
6. Comms Menu
7. System Menu 4. Current Menu
3. Temperature Menu
5. Control Menu
1. Main Window
Mode
Logged?
Correct?
No
No
Yes
Yes
Mode Mode Mode ModeMode
Temp Setpoint 1
Lo Temp Alarm 1
Hi Temp Alarm 1
Temp Setpoint 2
Lo Temp Alarm 2
Hi Temp Alarm 2
Failed Sensor
Output 2
Password Level 1
Password Level 2
Password Level 3
Alarm State
Restore to Default
Lo Current Alarm 1
Hi Current Alarm1
GFEP Setpoint 1
GFEP Alarm/Trip 1
Lo Current Alarm 2
Hi Current Alarm 2
GFEP Setpoint 2
GFEP Alarm/Trip 2
Baud Rate
Parity
Modbus ID
IP Address
DHCP
Firmware Version
Button Sound
Units
Temp. Sensing 1
Temp. Sensing 2
Failed Sensor
Output 1
Mode
Curved Double Arrow - continuation path for 1-Circuit Units Only
Dashed Parameter Ovals appear on 2-Circuit Units Only
Dashed, Angled Connector - continuation path for 2-Circuit Units Only
Mode arrow represents pressing the MODE Key
GFEP Alarm/Trip 2
Auto Control Mode 1
Auto/Man/Off 1
Deadband 1
Autotune 1
Prop. Band 1
Integral 1
Rate 1
Soft Start 1
Manual Offset 1
Auto Control Mode 2
Auto/Man/Off 2
Deadband 2
Autotune 2
Prop. Band 2
Integral 2
Rate 2
Soft Start 2
Manual Offset 2
