Chromalox MicroTherm CMX Series User Manual

User Instructions
TM
PAGE/MENU
Setup
Figure 3.3
Controller
PAGE/MENU
Selections
All control parameters, selections and calibration procedures for
the temperature controller are accomplished through simple
MENU selections. These MENU selections are organized into
PAGES.
The Display PAGE (DISP) allows you to view the status of the
controller. The Control Page (CTRL) allows you to change the
control setpoint and security lock.
Display
Control
Accessing the Security Lock or Setpoint MENU is
accomplished by entering the Setup Mode, then selecting the
Control PAGE and the desired MENU.

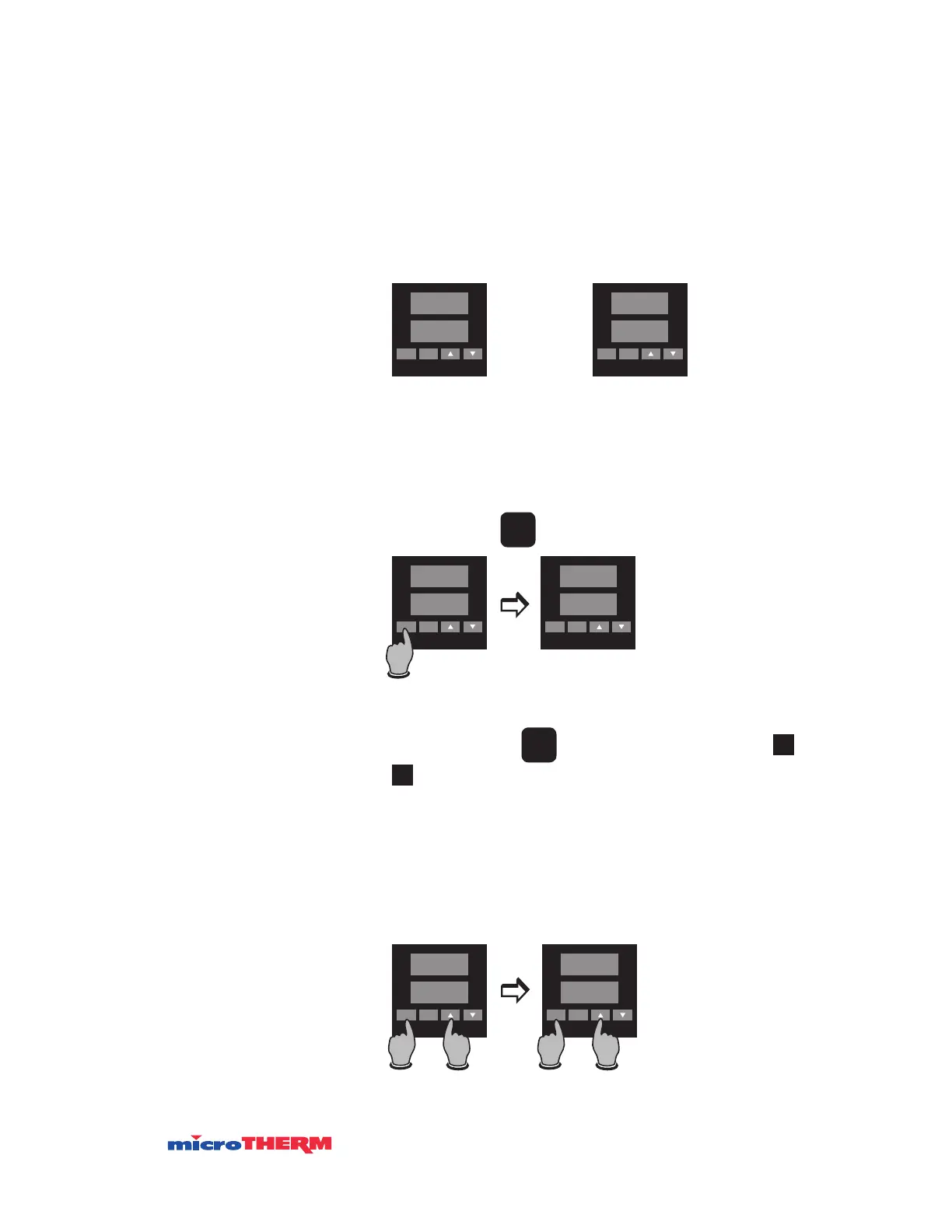

To enter Setup Mode:
Hold down the pushbutton for longer than 3 seconds.
Hold for at least
3 seconds.
Setup Mode entered.
To change the PAGE:
Press and hold the pushbutton while pressing the or
pushbutton. the upper display will increment (or
decrement) through the PAGEs, and PAGE will be displayed in
the lower display.
After reaching the CTRL PAGE, press RESET to move through
the MENUs. The alpha cue for the MENU will appear on the
upper display, and the current value will appear in the lower
display.
Hold
Press ▲ or ▼
RESET
RESET
▼
▲
15
DISP
PA G E
RESET
AUX
CTRL
PA G E
RESET
AUX
250
250
RESET
AUX
SP
250
RESET
AUX
CTRL
PA G E
RESET
AUX
LOCH
123
RESET
AUX
