3. Remove bulb from the front side marker lamp socket
and replace with a new bulb.
4. Install front side marker lamp socket in lamp assembly
and rotate 1/4 turn clockwise to lock into place.
5. Position the inner wheel liner in place and install the
three fasteners.
Front Fog Lamp — Halogen
1. Remove fasteners from inner wheel liner and carefully
peel back liner for access.
2. Reach through the front fascia to fog lamp housing to
access the bulb.
3. Rotate the front fog lamp bulb counterclockwise, and
remove the bulb from the front fog lamp housing.
4. Disconnect the bulb from the electrical connector and
then connect the replacement bulb.

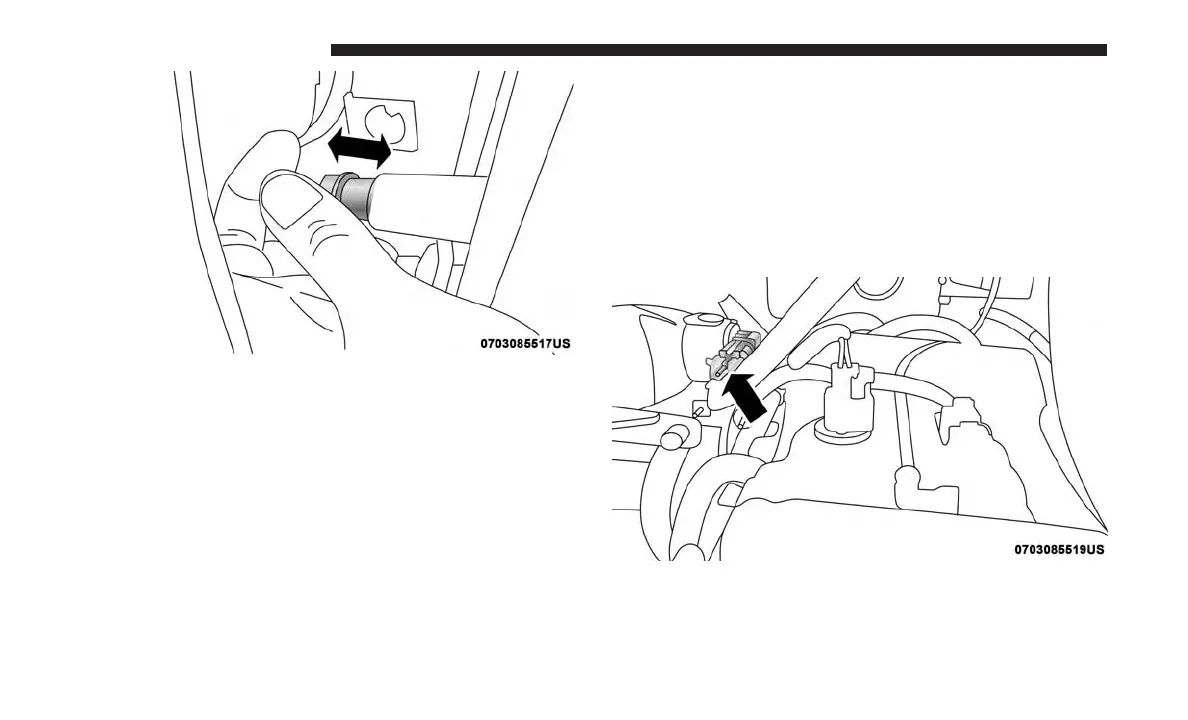

Front Side Marker Lamp Bulb Removal
Front Fog Lamp Socket
448 IN CASE OF EMERGENCY
