Front Turn Signal Lamp
1. Open the hood.
2. Twist the front turn signal lamp socket assembly coun-
terclockwise, and then remove the front turn signal
lamp assembly from the lamp housing.
3. Pull the bulb out of the socket and insert the replace-
ment bulb.
4. Install the front turn signal lamp socket assembly into
the housing, and rotate the front turn signal lamp socket
clockwise to lock it in place.
Front And Rear Side Marker Lamps
1. Remove the three fasteners from the inner wheel liner
and carefully peel back liner for access.
2. Firmly grasp the front side marker lamp socket and
rotate 1/4 turn counterclockwise to remove it from the
lamp assembly.

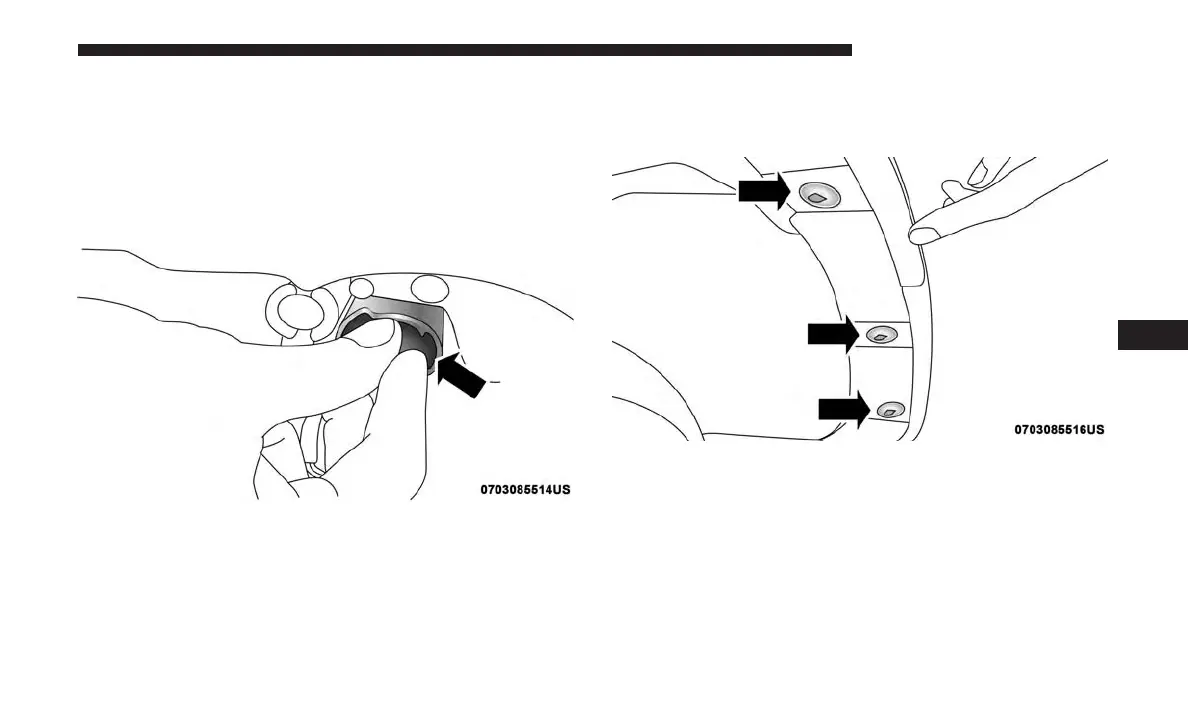

Front Turn Signal Lamp Socket
Inner Wheel Liner Fasteners
7
IN CASE OF EMERGENCY 447
