Chuango H4 User Manual

03 04

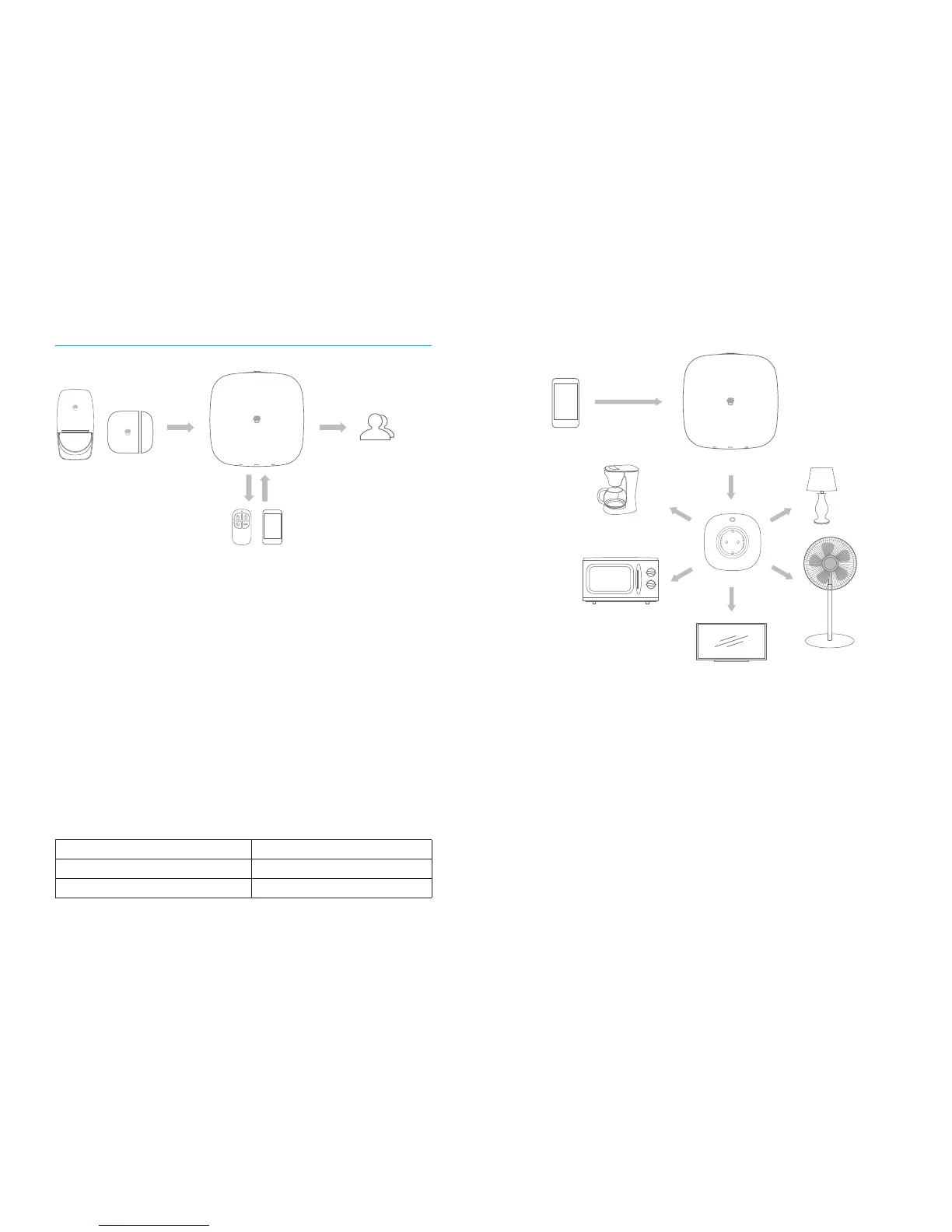

Operating Principle
PIR motion detector after pairing
Door/window contact after pairing
Intrusion
detected
Panel alarm/
App notication/
phone call
Manage through remote
control/mobile phone
User
Operating Principle of Panel Alarm
Categories of Detector Zones
Normal Zone: If panel is set to Arm or Home arm, normal zone detector will enter
operating mode. Any detection of intruders or an emergency situation will trigger the
panel alarm.
Home Zone: If panel is set to Arm, home zone detector will enter operating mode.
Any detection of intruders will trigger the panel alarm. If panel is set to Home Arm, no
alarm signal sent from the home zone detector will be processed.
Delay Zone: This is the alarm delay zone. If panel is set to Arm, delay zone detector
will turn the alarm on after the designated period of time once triggered. This usually
applies to the door/window contact of the entrance door. For example, if door/window
contact of entrance door is set as delay zone and the delay time is 30 seconds, the
user will be reminded with a warning sound from the panel to set the system to Disarm
mode after entering the home under the Arm condition. If panel has not been set to
Disarm after 30 seconds, it will sound the alarm.
24-Hour Zone: 24-hour zone operates independently of the setting of Arm or Disarm.
Once the zone is triggered, the alarm will be immediately activated.
Categories Factory Default Zone
PIR-860 PIR Motion Detectorr Home Zone (Modiable via App)
DWC-86 Door/Window Contact Normal Zone (Modiable via App)
Operating together with Multiple Smart Switches
Lamp
TV
Fan
Microwave oven
Coffee machine
H4 Panel
Home appliance
switches can be
freely controlled
through App.
Operating Principle of Home Appliance Control

Chuango H4 Specifications

General

Wi-Fi	Yes
Alarm decibels	105 dB
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Operating frequency	433 MHz
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	0 - 80 %
Number of supported remote controls	10
Number of simultaneously connected devices (max)	70
Product color	White
Housing material	Acrylonitrile butadiene styrene (ABS)
Motion sensor technology	Passive infrared (PIR) sensor
Number of remote controls	2 pc(s)
Number of door/window sensors	1 pc(s)
Alarm current	300 mA
Static current	100 mA
Battery voltage	3.7 V
Battery capacity	800 mAh
Battery technology	Lithium
