Chuango H4 User Manual

05 06

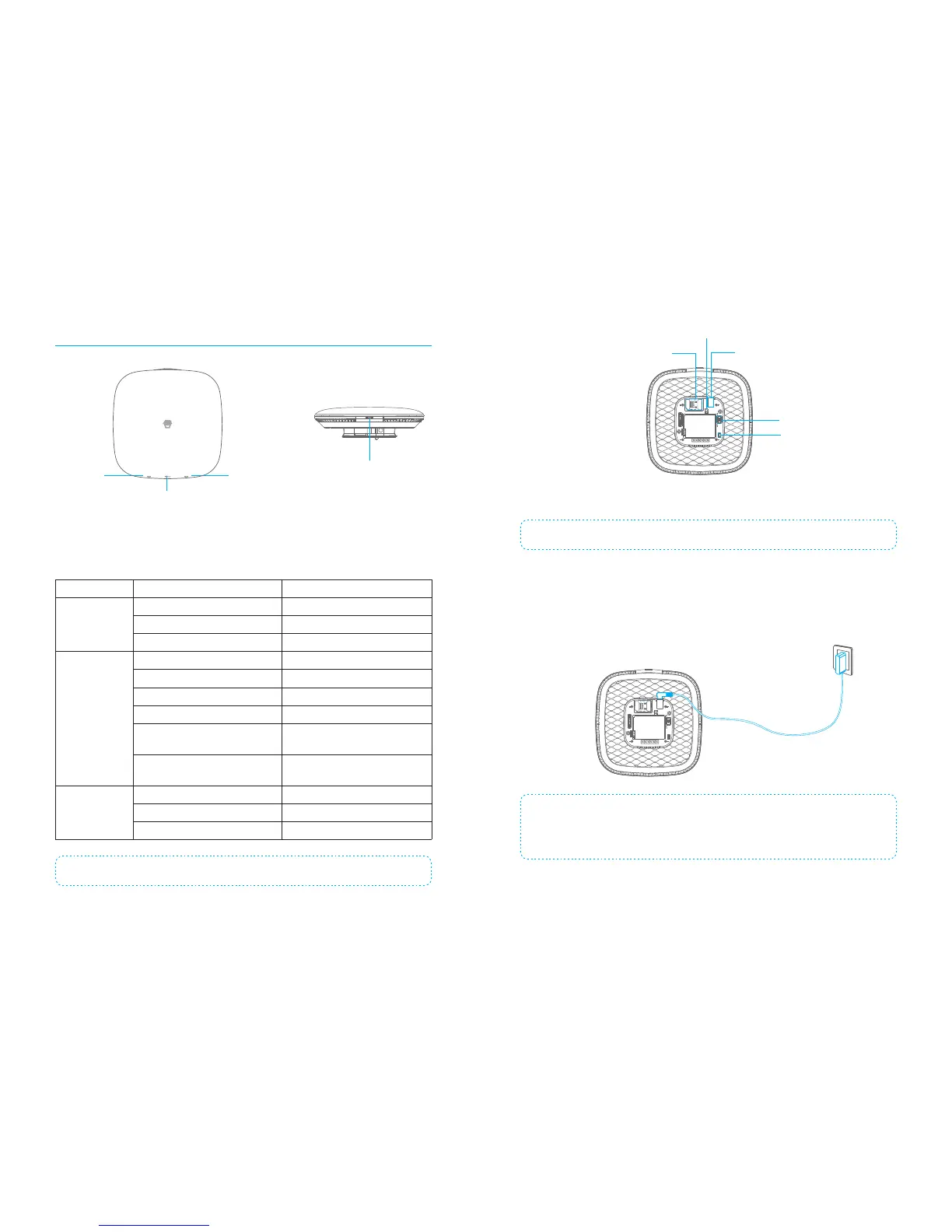

Introduction of Panel
WiFi
Indicator
Light
GSM Indicator Light
Status Indicator Light
Front Side
SOS button
Top Side
Description of Indicator Light
Indicator Light Status Meaning
WiFi Indicator
Light
Flash slowly (once every 3 seconds) WiFi network searching
Flash quickly(once every second) Conguration status
Steady on WiFi network connected
Status Indicator
Light
Blue light is steady on Home arm
Green light is steady on Disarm
Red light is steady on Arm
Flashing Panel alarm
Red, green and blue lights ash
simultaneously
Panel is in low battery condition.
Please connect with AC power.
Off
Panel is not powered on, or not
powered with adapter
GSM Indicator
Light
Flash quickly (once per second) GPRS network searching
Flash slowly (once every 3 seconds) GPRS network connected
Off No SIM card
Note: After pressing the SOS button, the panel will immediately sound the alarm.
Tamper Switch
SIM Card Slot
AC Adapter Port
Power Switch
Pairing Button
Back Side
Note: After pressing the Tamper Switch, the panel will immediately sound the alarm.
Powering on the Panel
Connect AC adapter to power outlet → When the power is OFF, insert your own SIM
card → Turn power switch from OFF to ON → When GSM indicator light ashes slowly
(once every three seconds), GPRS network has been connected.
Note: The SIM card should allow you to make and receive calls, with function of GPRS, SMS
and caller ID activated. If the user only chooses WiFi control system, insertion of SIM card is
not required. Then there will be push messages sent from the APP instead of alarm phone
calls upon sounding of alarm.

Chuango H4 Specifications

General

Wi-Fi	Yes
Alarm decibels	105 dB
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Operating frequency	433 MHz
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	0 - 80 %
Number of supported remote controls	10
Number of simultaneously connected devices (max)	70
Product color	White
Housing material	Acrylonitrile butadiene styrene (ABS)
Motion sensor technology	Passive infrared (PIR) sensor
Number of remote controls	2 pc(s)
Number of door/window sensors	1 pc(s)
Alarm current	300 mA
Static current	100 mA
Battery voltage	3.7 V
Battery capacity	800 mAh
Battery technology	Lithium
