CIARA Astro SN-6310
- 57 -
4.11 LAN subsystem
The LAN subsystem consists of the following :
 Intel I219LM Gigabit Ethernet Controller (10/100/1000 Mbits/s)
 Realtek 8111H Gigabit Ethernet Controller (10/100/1000 Mbits/s)
 One RJ-45 LAN connector with integrated status LEDs
4.11.1 Intel® I219LM and Realtek® 8111H 1 Gigabit Ethernet controllers
The Intel I219LM 1 and Realtek 8111H Gigabit Ethernet Controller support the following features :
• 10/100/1000 BASE-T IEEE 802.3 compliant
• Energy Efficient Ethernet (EEE) IEEE802.3az
• Compliant to IEEE 802.3u Auto-Negotiation
• TCP, IP, and UDP checksum offload (for IPv4 and IPv6)
• Full device driver compatibility
• Intel® vPro™ technology
• Intel® Stable Image Platform Program (SIPP)
• Intel® Standard Manageablity
4.11.2 RJ-45 LAN connectors LEDs

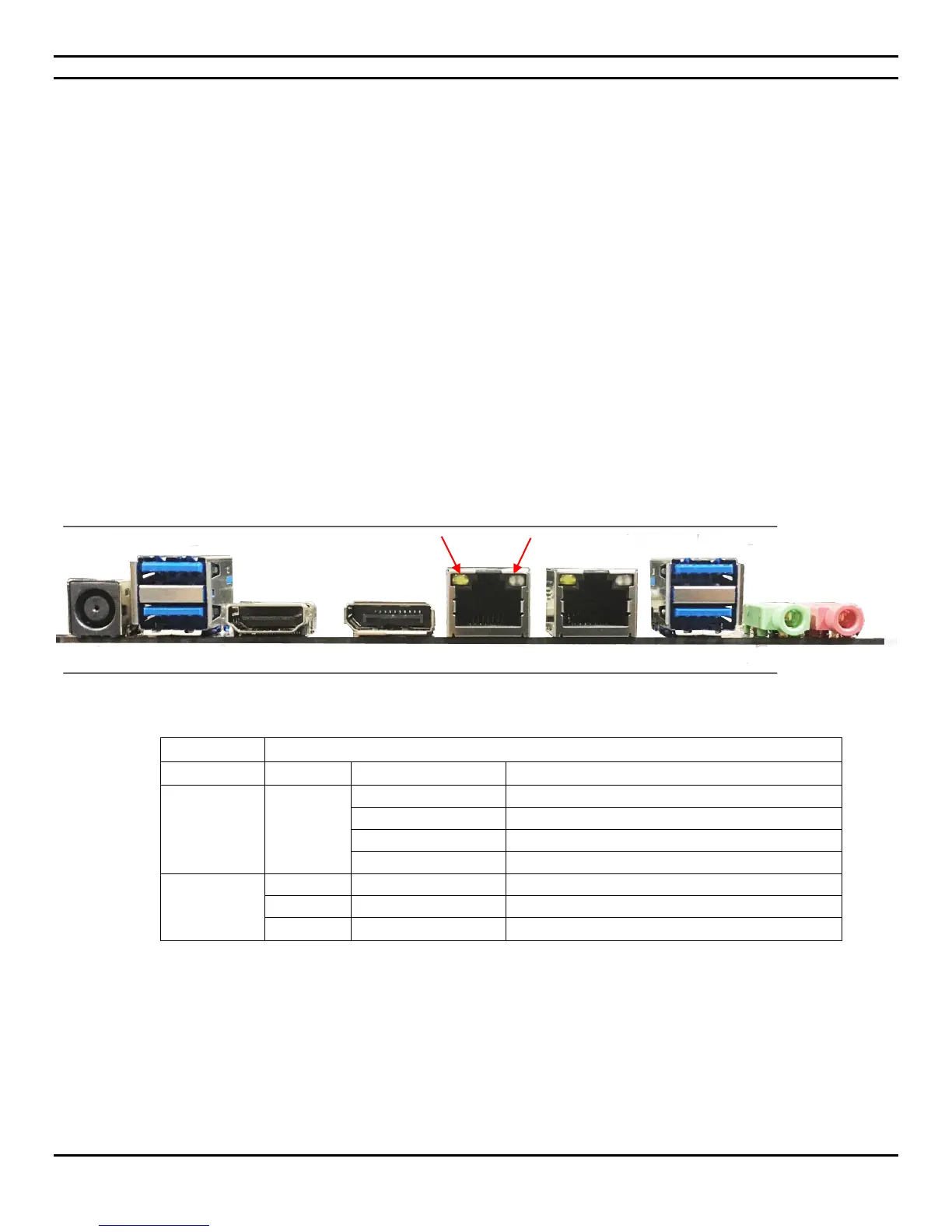

Two LEDs are built into the RJ-45 LAN connectors located on the back panel (see Figure). These LEDs indicate the status of the LAN.
Table describes the LED states when the board is powered up and the LAN subsystem is operating.
Table 3.9
LAN Connector LED States
LED
LED color
LED state
Condition
Link/Activity
Left
Orange
Off
LAN link is not established
On
LAN link is established
Blinking
LAN link is occurring
Blinking then steady
Ready to wake from S5 mode
Link speed
Right
Off
10 Mbits/s data rate is selected or negotiated.
Orange
On
100 Mbits/s data rate is selected or negotiated.
Green
On
1000 Mbits/s data rate is selected or negotiated.
