CIAS Elettronica S.r.l. Ed. 1.5
Installation Handbook Page 38 of 57 MANTA 50 – 80

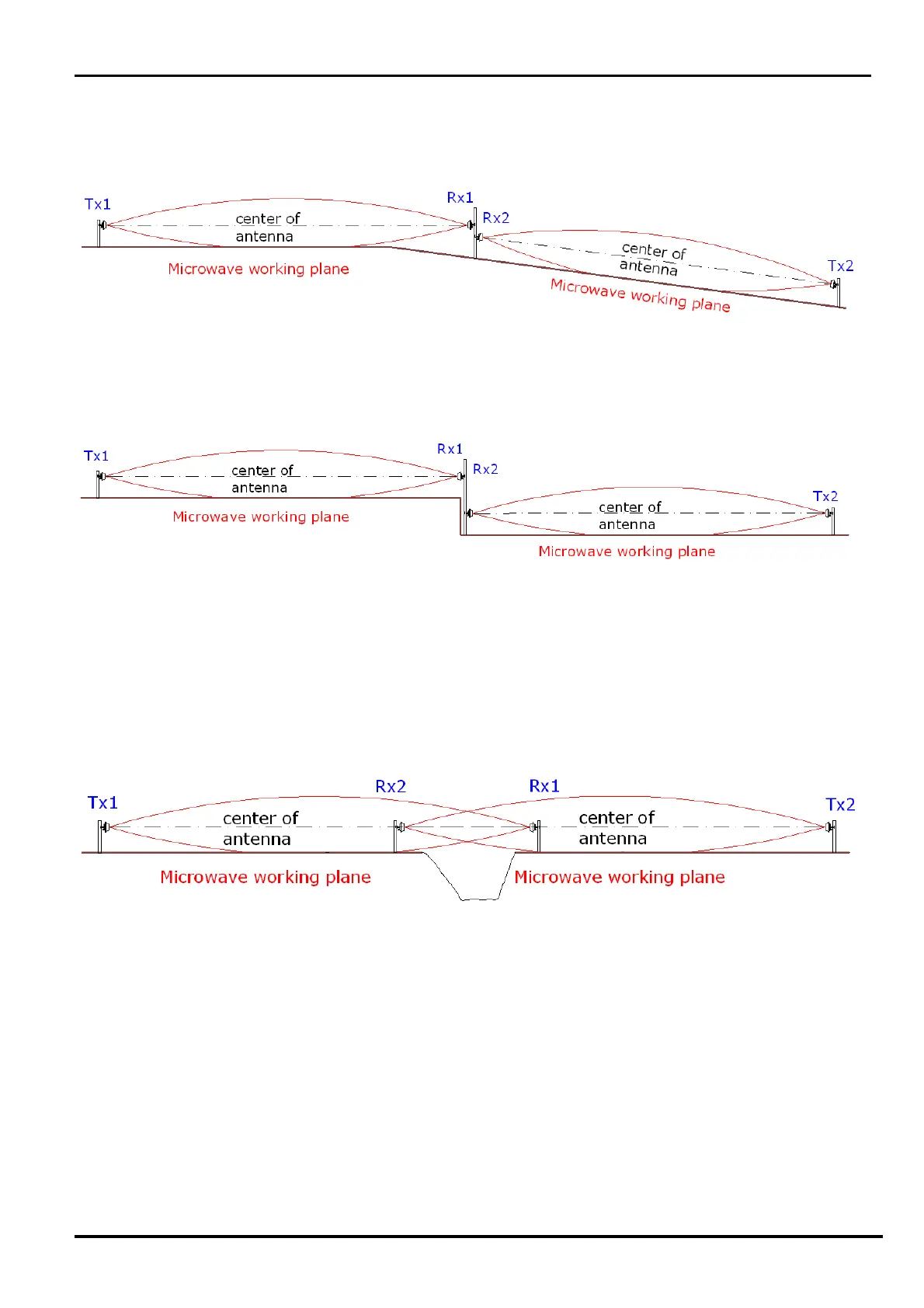

6° Example
(changing slope, installation not suggested)
Pole on a different level from the working plane, for installation on not-aligned working planes
.
You can use a single pole, but resulting dead zones must be protected with two sensors.
7° Example
(Change of slope in steps, not aligned working planes)
Barrier 1 is located on a different working plane than barrier 2.
In this case, since the change of slope is a step, you must install two separate barriers and
consider two different working planes, always protecting dead zones resulting between Rx1
and Rx2 with two additional sensors.
8° Example
(Strong dip in the ground)
The strong dip in the ground creates a considerable dead zone that has be protected with an
additional sensor.
