Indoor packaged air-to-water heat pump

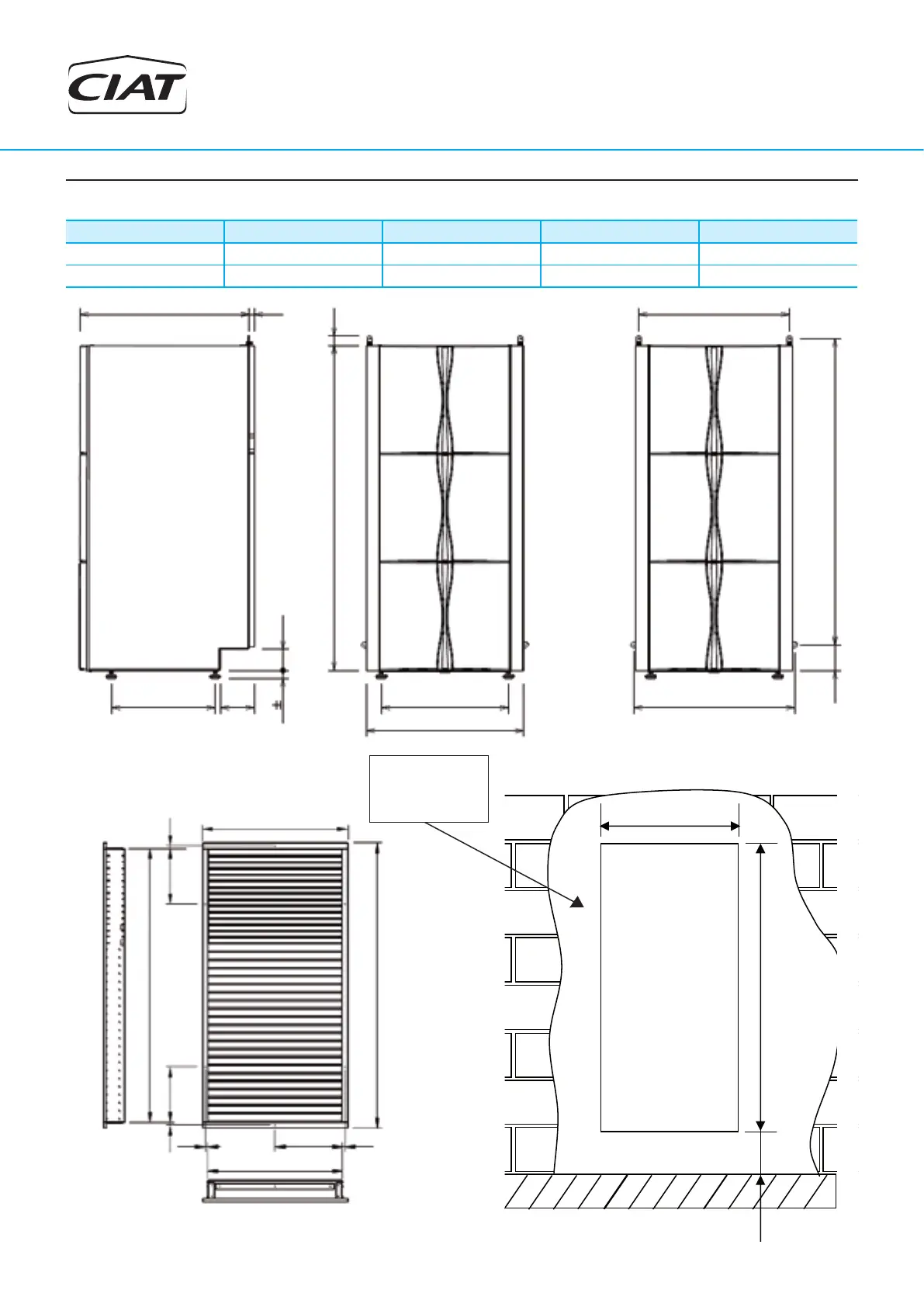

DIMENSIONS
Bear in mind the weight and dimensions given in this section when installing the unit.
XENEA 20H 28H 35H 35HT
Empty weight (kg) 172 186 189 190
Weight in operation (kg) 175 189 192 193
800 23
100
50 15
160
490
45
1530
600
740
760
712
120 1445
Position of heat pump wall mounting
points
Space
dimensions
665
+10
-0
1345
+10
-0
200
+15
-15
1345
330
660
275
1400
715
1212 275
12 12
Inside, place a
waterproof coating
BA13, for instance
placomarine
