CIAT Xenea 20H - Quick Selection

XENEA
Indoor packaged air-to-water heat pump
3
HEAT PUMPS - AIR CONDITIONING - REFRIGERATION - AIR HANDLING - HEAT EXCHANGE - NA 12.692 A
QUICK SELECTION
Xenea 20H 28H 35H 35HT
Heating capacity to 7/6°C 30/35°C kW 6,49 8,46 10,23 10,19
Power input kW 1,49 2,23 2,65 2,64
COP 4,36 3,79 3,86 3,86
Heating capacity to -7/-8°C */35°C kW 3,85 5,03 6,00 5,99
Power input kW 1,6 2,21 2,58 2,58
COP 2,39 2,28 2,33 2,32
Heating capacity to 7/6°C 40/45°C kW 5,97 7,81 9,49 9,47
Power input kW 1,83 2,54 3,07 3,06
COP 3,26 3,08 3,09 3,09
Heating capacity to -7/-8°C */45°C kW 3,54 4,51 5,58 5,57
Power input kW 1,93 2,54 2,99 2,98
COP 1,83 1,78 1,87 1,87
Net capacities certified by NFPAC in accordance with test standard EN14511-2
Power input integrating compressor + control + fan + accelerator pump + defrosting cycles

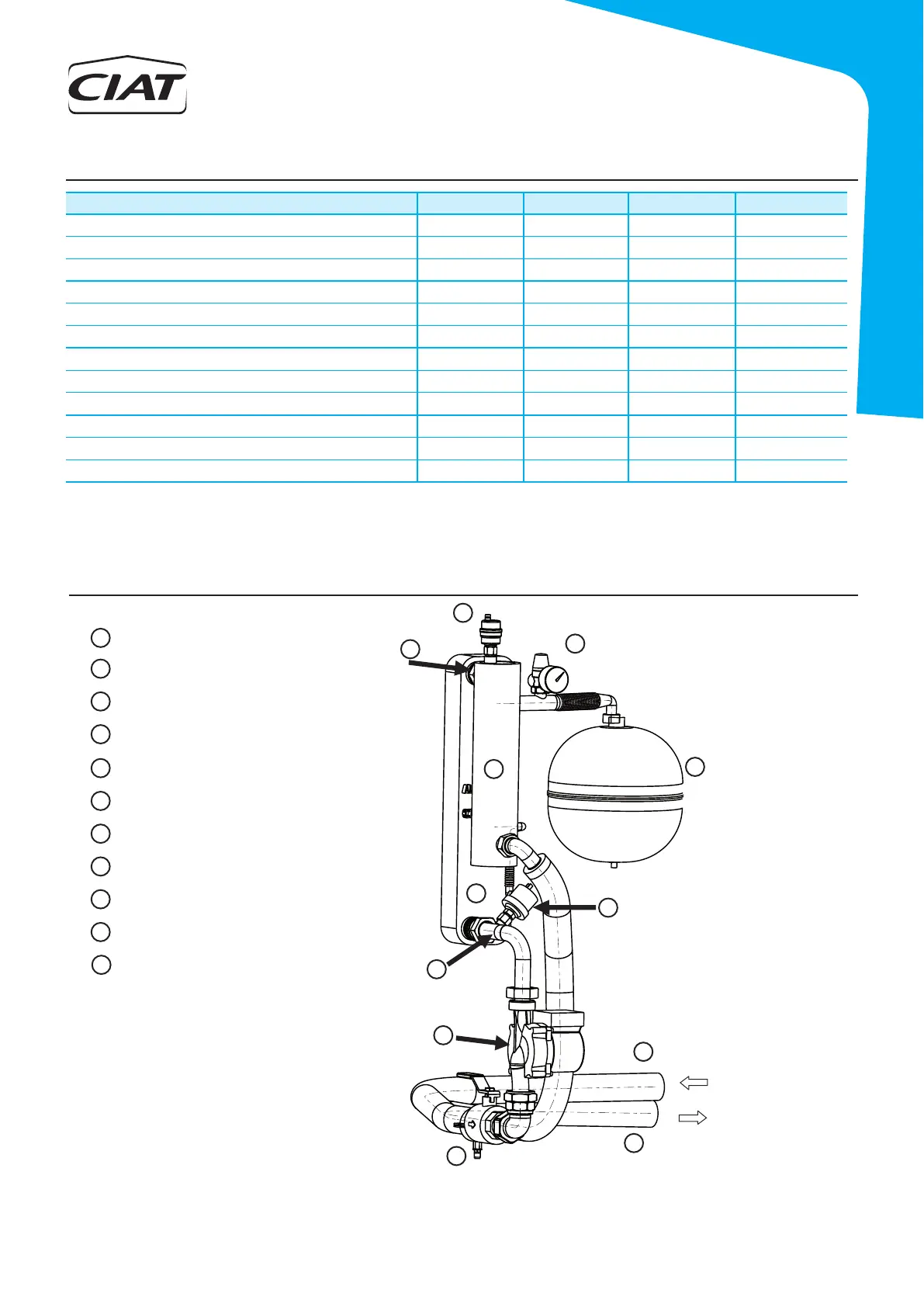

HYDRAULIC MODULE PRINCIPLE DIAGRAM
Brazed-plate heat exchanger
Heater
Manual air bleed valve
4-bar pressure relief valve
Expansion vessel
Temperature sensors
Differential pressure switch
Accelerator pump
Built-in filter valve
System 1’’ return hose
System 1’’ supply hose
INLET
OUTLET
1
2
3
4
5
6
7
8
9
10
11
1
2
3
4
5
6
6
7
8
9
10
11
