5-2
Manual 0-5182
weldskill 250,
350 set up
Setup
Art# 0-09923_AD

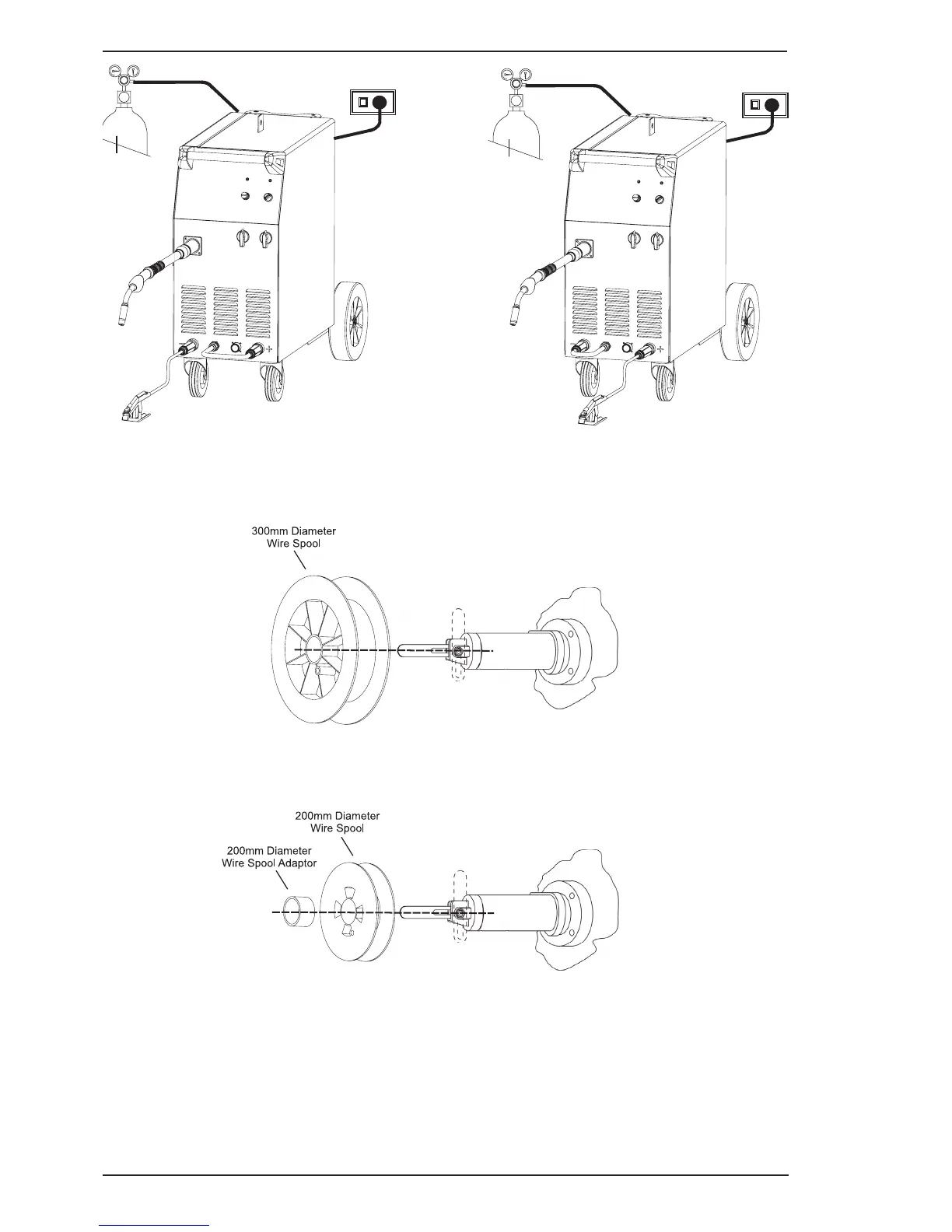

Setup for MIG (GMA
W) Welding with
Gas Shielded Shielded MIG Wire
Setup for MIG (GMA
W) Welding
with Gas Gasless MIG Wire
300mm Wire spool installation
200mm Wire spool installation
Figure 5-1 WeldSkill 250 & 350 Setup and Spool Hub
