APPENDIX 2:
VOLT/AMP CURVES

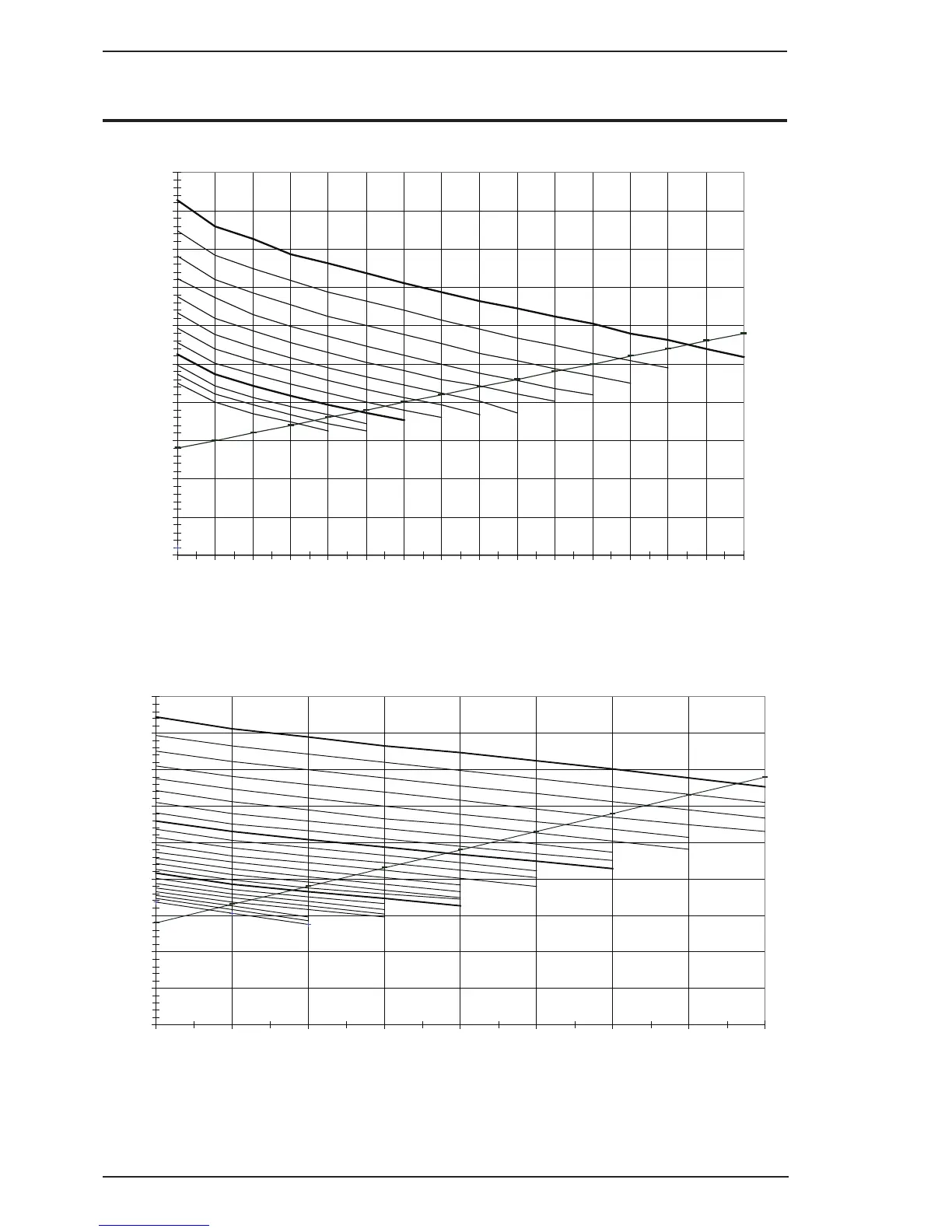

WeldSkill 250 VA Curve
WeldSkill 250 VA Curve
0.0
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
020406080 100 120140 160 180200 220240 260 280300
Amps
Volts
Art # 0-08731
WeldSkill 350 VA Curve
Weldskill 350 VA Curve
0.0
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
050100 150200 250 300 350 400
Amps
Volts
Art # 0-08732
