CIGWELD 250 WELDSKILL - Appendix 5: 4 R Wirefeeder Circuit Diagram

appendix weldskill 250, 350
Manual 0-5182 A-7 Appendix
1 1
2 2
3 3
4 4
5 5
6 6
D D
C C
B B
A A
Title
noisiveRrebmuNSize
B
fo teehS32-21-0102:etaD
File:D:\work\..\4R Wirefeeder.SchDocDrawn By:
max
Potentiometer
-
+

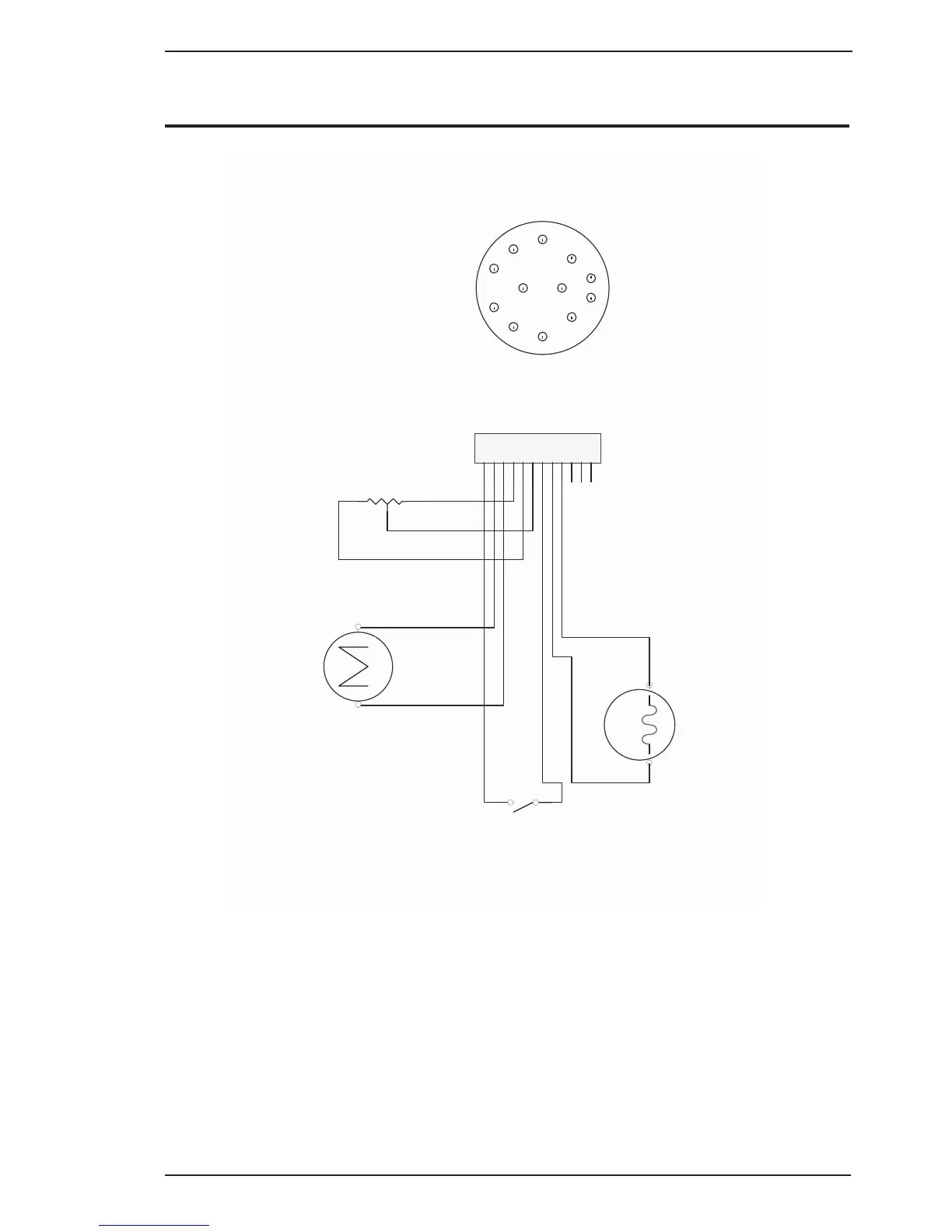

4R Wirefeeder
Motor
Solenoid Valve
1 2 3
4 5
6 7
8 9
10
11 12
P1
mid
min
W3000401
12
53
4
68
7
910
11 12
P1
Wirespeed
Torch
Art # A-09928_AB
APPENDIX 5:
4R WIREFEEDER CIRCUIT DIAGRAM
