- 13 -

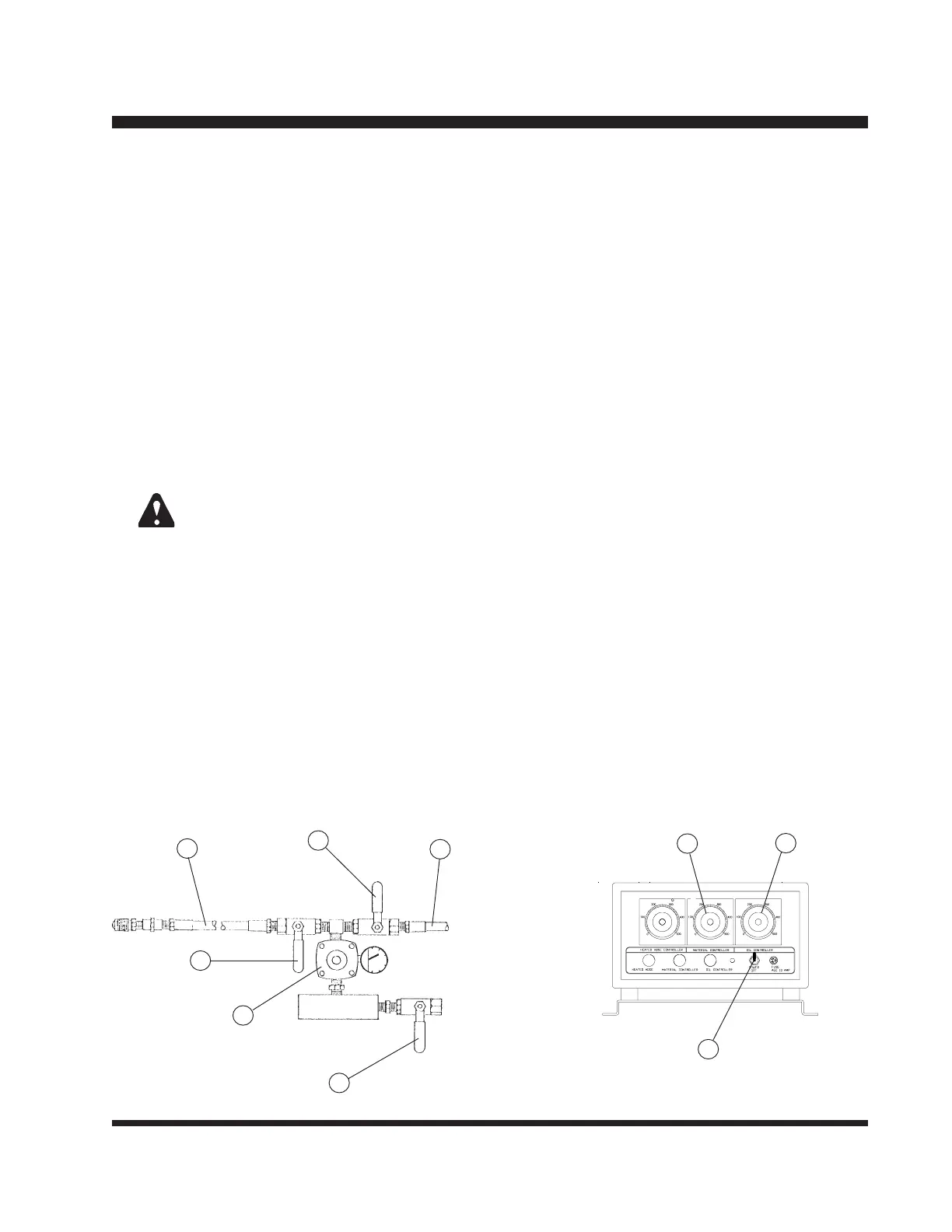

Bottle Hookup and Ignition (LP Units only)
NOTE: Liquid withdrawal requires optional hose adapters and engine vaporizer.
1) Place 100 lb. propane bottle(s) in rack and secure in place with chain binder(s). Model
225 melter uses (2) bottles, Model 105 holds (1).
2) Connect hoses (A) to bottle(s).
NOTE: POL fittings are left hand thread. All connections must be air tight.
3) Close hand torch supply valve (B). (optional)
4) On models with two bottles, open the valve (C) from one bottle or the other.
5) Open valve on LP bottle and set regulator (D) at 13 to 14 PSI.
WARNING: DO NOT exceed 14 PSI.
6) Set the oil controller (E) to 550º F. DO NOT exceed 550º F. Set the material controller
(F) to the recommended material working temperature (typically listed on can or box).
(optional)
7) Ignite the burner by turning the toggle switch (G) "on".
NOTE: If the burner does not ignite within 8-10 seconds, the unit will require reset-
ting. Turn switch "off", allow time for the unburned fuel to exit the chamber
and repeat procedure.
8) If ignition does not occur, check the fuse and gas supply.
B
A
C
D
C
A
E
F
G
