- 48 -
Wiring Diagrams
Note: Thermocouples hook up the same for oil and material controllers.
Note: White is positive (+)
and Red is negative (-).
Thermocouple
Three Wire Harness
from Battery Box

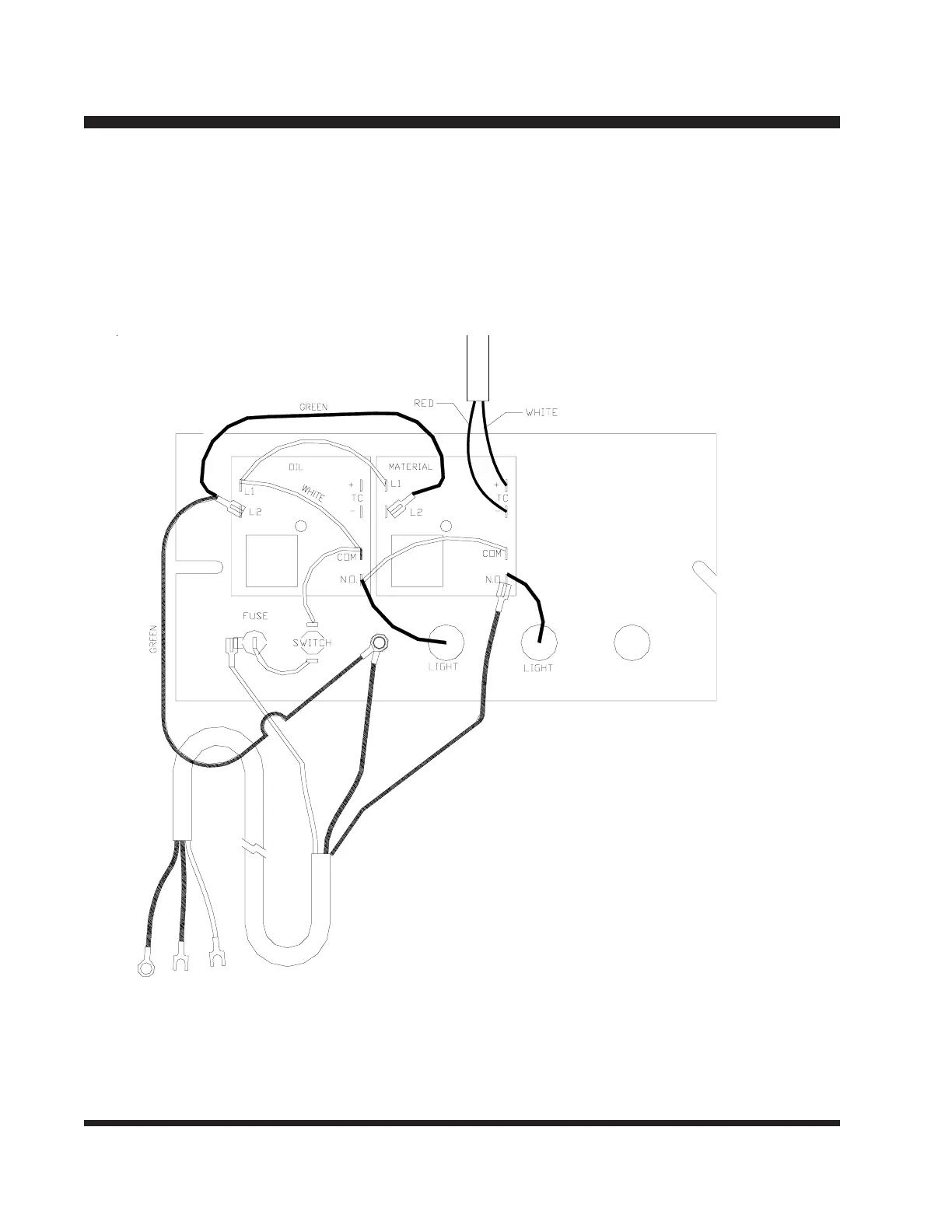

Temperature Control Wiring Diagram - No Heated Hose
