CIMLINE 105 - Chamber Lining Inspection

- 29 -
Chamber Lining Inspection

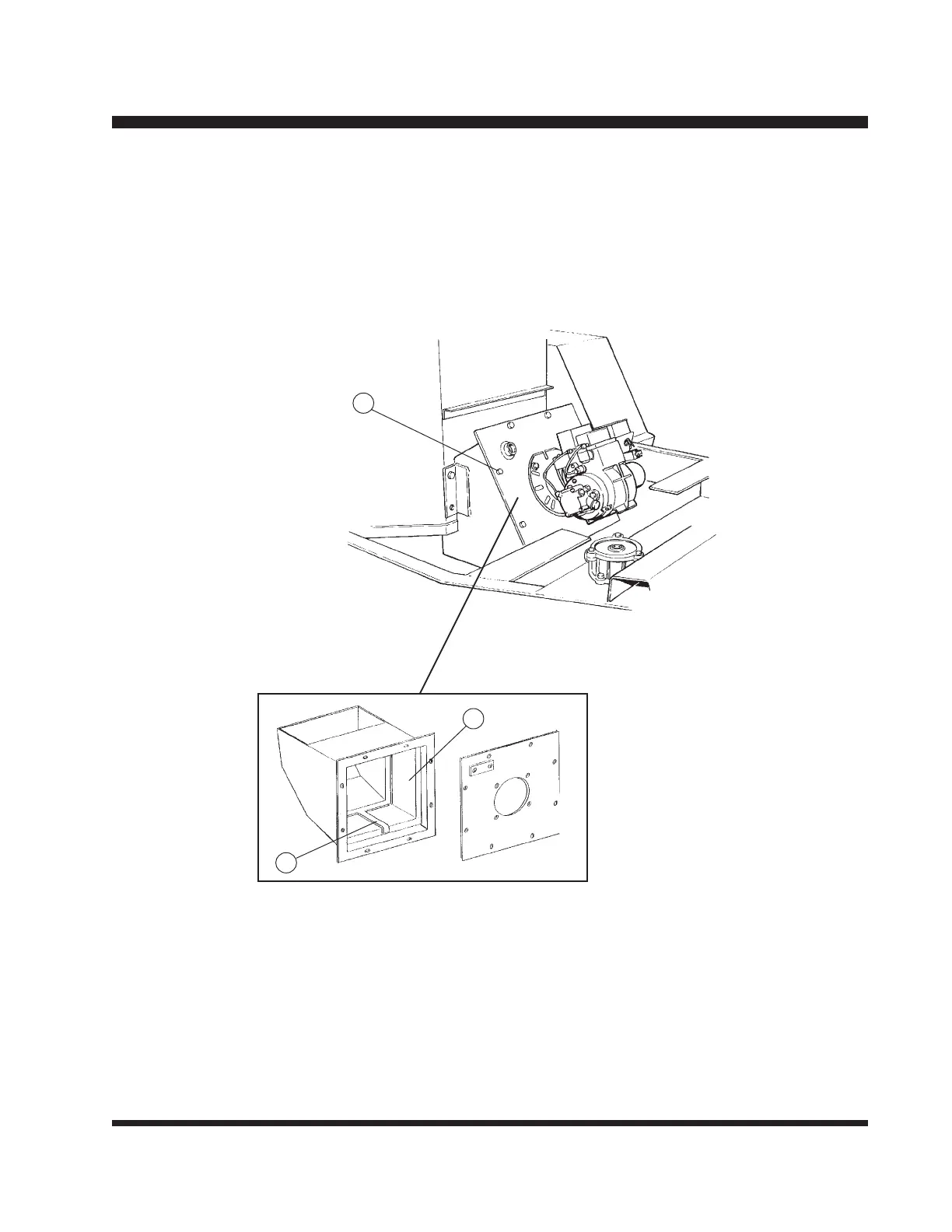

After each 200 hours of operation, the chamber lining should be inspected. Remove (8)
burner mount securing bolts (A) and pull out burner and mount. Inspect lining (B) for excessive
cracking. Also check the condition of retainer (C). Lining cracks are acceptable as long as
they are not large enough to allow flame to contact the combustion chamber walls.
B
C
A
