Wiring Diagrams
RUNNING LIGHTS
BRAKES
MALE
CONNECTER
A
S
LT
GD
TM
RT
BROWN
BLUE
FOR
ACCESSORY
BLACK
RIGHT TURN SIGNAL
BREAKAWAY
SWITCH
12 VDC
BATTERY
GROUND
LEFT TURN SIGNAL
GREEN
YELLOW
RED

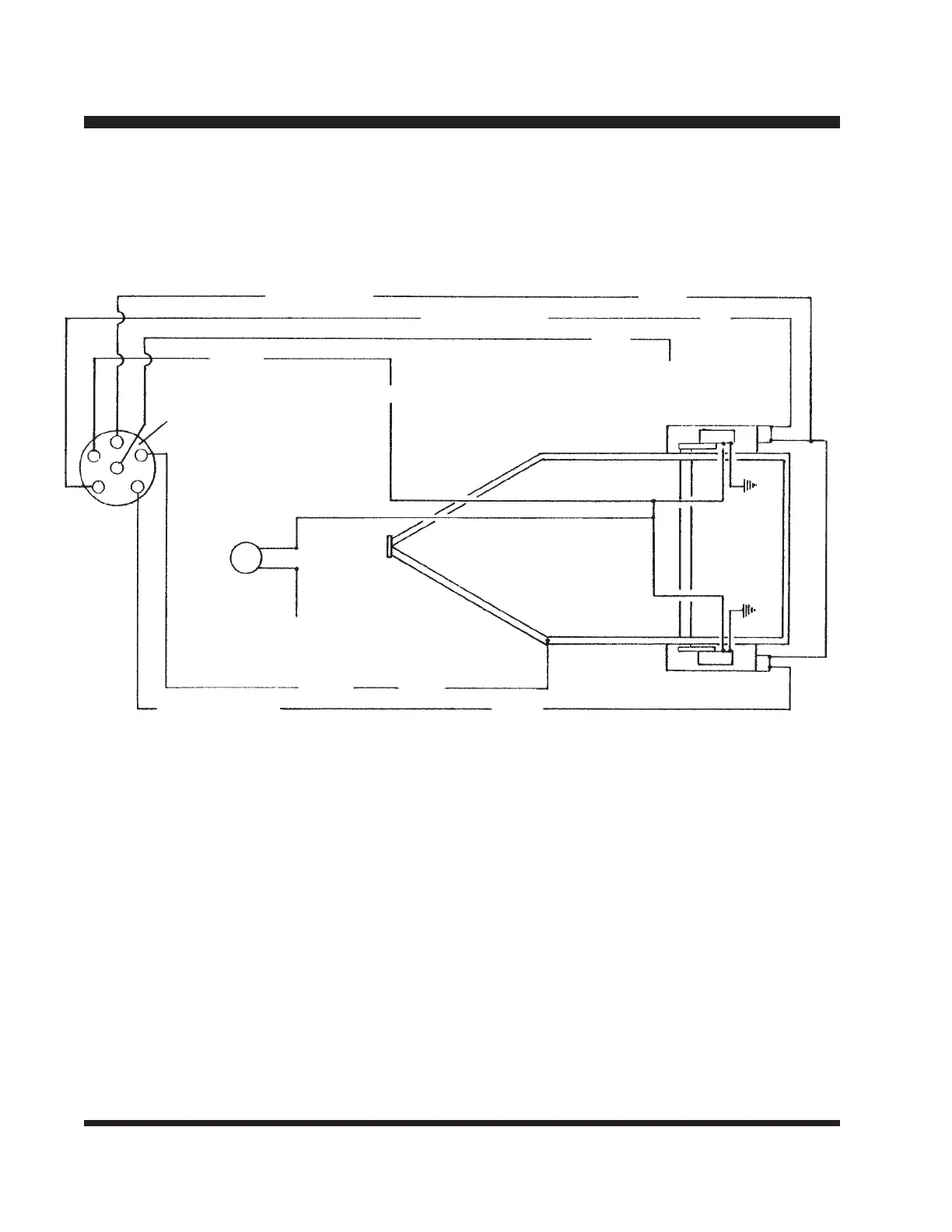

Trailer Wiring Diagram
RIGHT
TAIL LIGHT
LEFT
TAIL LIGHT
