Automatic Temperature Control Setting
NOTE: On diesel units, the engine must be running before activating temperature
control. The automatic temperature control system monitors the heat trans-
fer oil temperature and material temperature.
1) Set the oil controller (A) to 550º F(288º C) (See Setting Temperature Controllers, pg.
17)
2) Set the material controller (B) to the recommended material working temperature
which is typically listed on the material container.
3) Turn switch (H) on to activate the heated hose.
4) Set the heated hose controller (C) to350º. Light (J) will be on when the controller is
calling the generator to activate.
5) Turn rocker switchs (D) and (K) to the forward position.

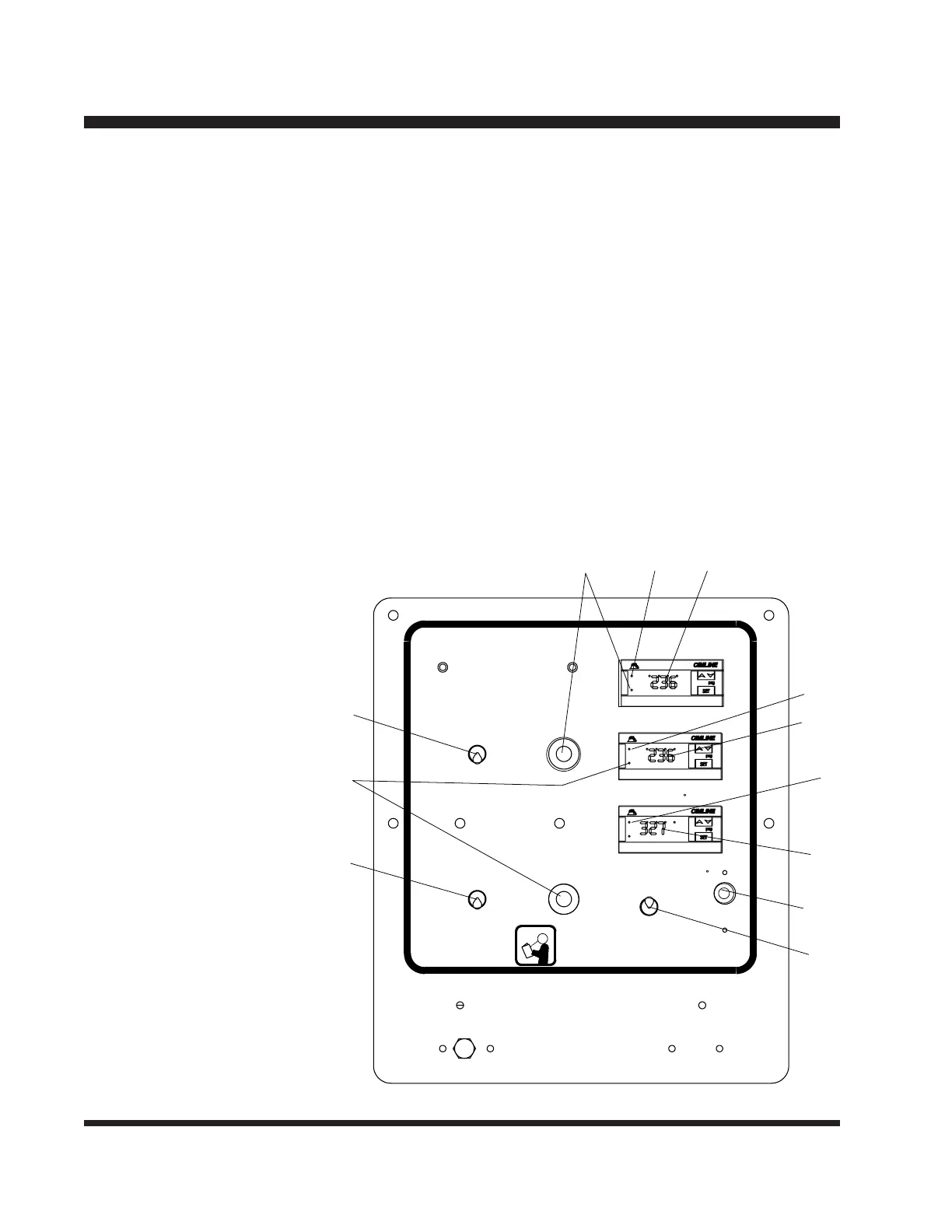

A
G
C
H
B
F
J
G
I
E
K
D
MATRI 1500
X
TM
Heated
Hose
(15 Amp)
BY CIMLINE EQUIPMENT
2601 Niagara Lane
Minneapolis, MN 55447 U.S.A.
800-328-3874
Indicator
Light
Indicator
Light
Heated
Hose
Circuit
ON
Agitator
Forward
Reverse
Off
Reverse
Off
Material Pump
Forward
Heated Hose
Tempature (Max 400 F)
Oil Tempature
(Max 550 F)
Material Tempature
(See Matl Spec Sheet)
OFF
READ OWNER'S MANUAL
BEFORE OPERATING
When lights (G) and (F)
are on, the burner has
been activated.
Light (E) will only be on
when the material tem-
perature is above 350º.
(this signals the material
pump to come on.
Light (I) will only be on
when the oil temperature
is above 325º. (this sig-
nals the agitator to come
on).
