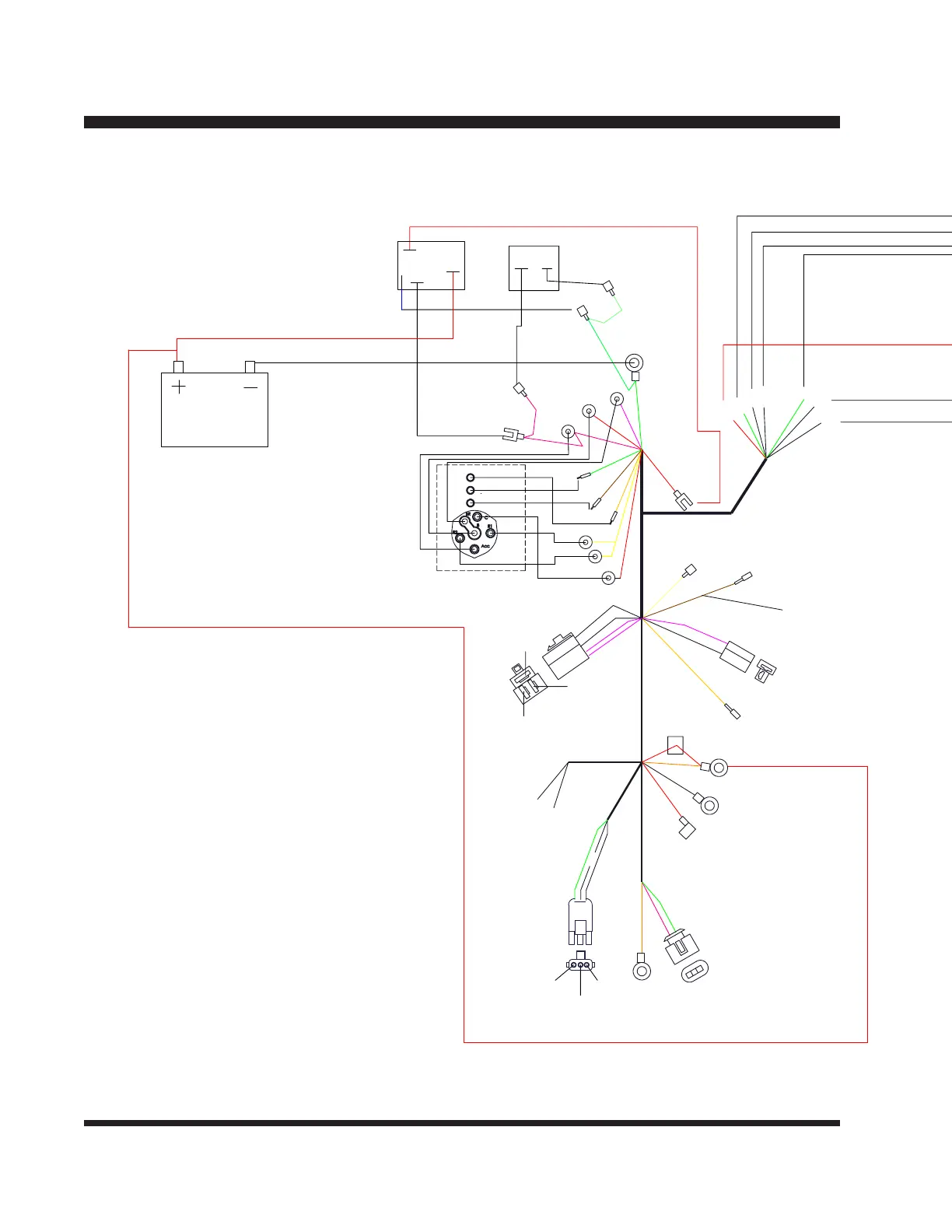

CIMLINE MATRIX 1500 - Wiring Diagrams

- 28 -
3
2
1
White(B)
Black(C)
Green(A)
ALTERNATOR
STARTER
TEMP
SENDING
UNIT
FUEL
PUMP
OIL
SENDING
UNIT
GLOW
PLUG
23
24
25
28
W/30 A
FUSE
30
23
27
31
32
33
34
24
29
32
34
34
14
25
30
33
32
28
31
27
20
14
20
10
17
21
10
17
18
18
22
22
32
3
1
31
32
28
29
STARTER
SWITCH
BURNER
33
33
21
32
GENERATOR
FUEL SHUTDOWN
ENGINE WIRE HARNESS
130351
1 - RED - CONTROLLER POWER
2 - RED - BURNER RELAY POWER
3 - RED - HEATED HOSE RELAY POWER
4 - RED - MATL PUMP & AGITATOR RELAY POWER
5 - N/A
6 - RED - THERMOCOUPLE WIRE
7 - WHITE - THERMOCOUPLE WIRE
8 - BLUE - MATERIAL PUMP OUTPUT WIRE
9 - GREY - BURNER OUTPUT WIRE
10- GREEN - HEATED HOSE GENERATOR OUTPUT WIRE
11- BROWN -AGITATOR OUTPUT WIRE
12- PURPLE -MATERIAL PUMP REVERSE OUTPUT WIRE
13- YELLOW -AGITATOR REVERSE OUTPUT WIRE
14- PINK -BURNER OUTPUT WIRE
15- RED - MATERIAL VALVE POWER WIRE
16- RED - MATERIAL VALVE SWITCH WIRE
17- WHITE - GENERATOR POWER WIRE (AC)
18- BLACK - GENERATOR POWER WIRE (AC)
19- GREEN W/YELLOW - SOLENOID GROUND
20- GREEN W/ YELLOW -BURNER GROUND
21- GREEN W/ YELLOW -MAIN GROUND
22- RED - CONTROL PANEL RELAY POWER
23- ORANGE - ALTERNATOR - STARTER
24- PINK - ALTERNATOR - KEYSWITCH
25- GREEN - ALTERNATOR - LOW BATT LIGHT
26- N/A
27- RED - STARTER - KEWSWITCH (C)
28- WHITE - STARTER - FUEL SHUTDOWN
29- RED - STARTER - KEWSWITCH (B)
30- TAN - TEMP SENDING UNIT - TEMP LIGHT
31- BLACK - FUEL PUMP - FUEL SHUTDOWN
32- PURPLE - FUEL PUMP - FUEL SHUTDOWN - KEYSWITCH (BR)
33- BROWN - OIL SENDING UNIT - LOW OIL LIGHT
- KEYSWITCH (ACC)
34- YELLOW - GLOW PLUG STRIP - KEWSWITCH (R1&R2)
30
86
85
87
CONTROL
PANEL
RELAY
HOUR METER 130107
Battery
12 VDC
Wiring Diagrams
