3.2 Block Diagram

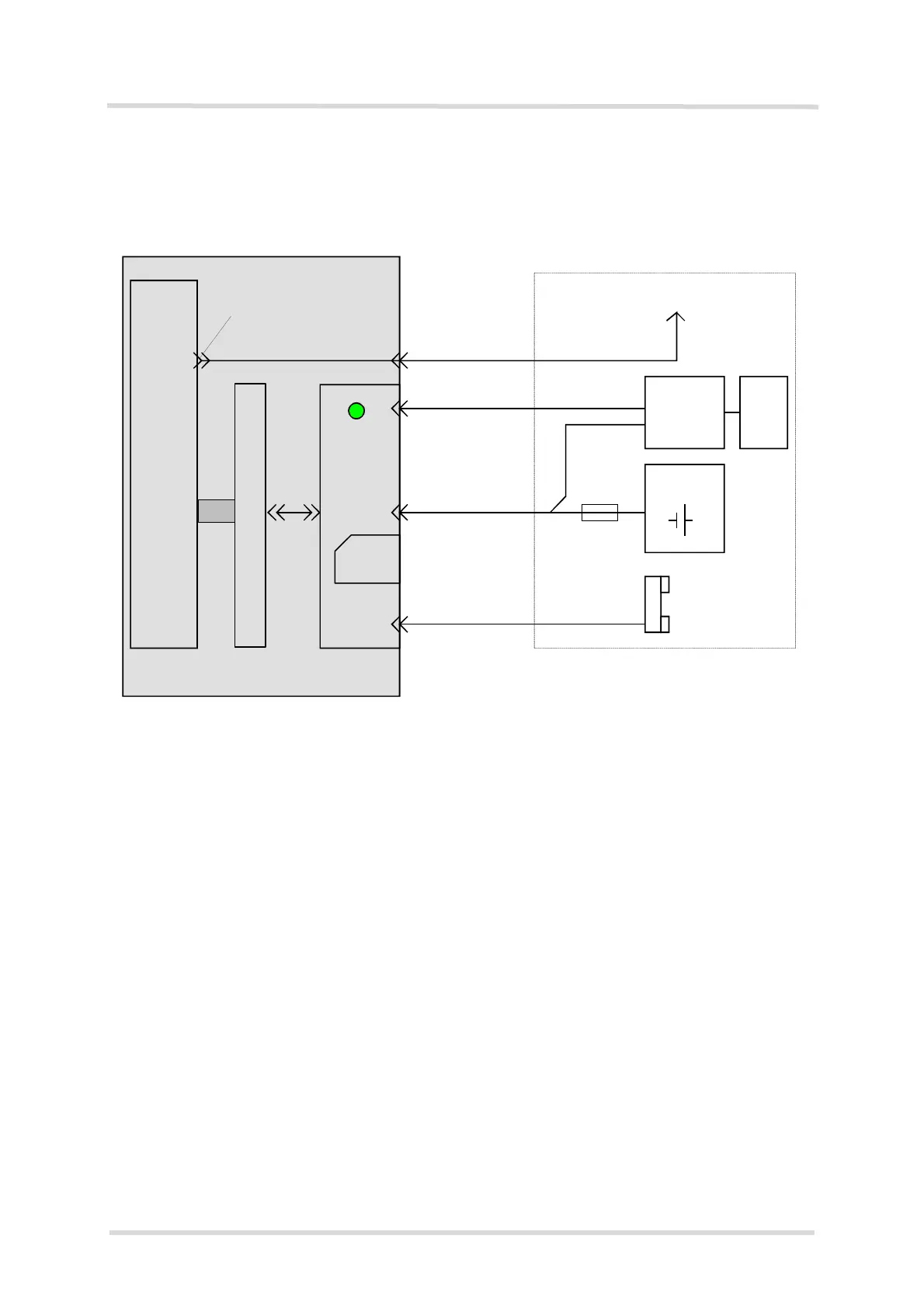

Figure 2 shows a block diagram of a sample configuration that incorporates an MC55i Terminal
and typical accessories.
Figure 2: Block diagram
Host
controller
Power
supply
Antenna interface
RS-232
interface
Power supply
on/off
Audio interface
Handset
Antenna
Terminal
circuit
Flex cable
MC5xi Module
MC5xi Terminal
LED
External
application
Antenna reference point
(ARP)
Data
sink/
source
Fuse
IGT_IN
PD_IN
Adapter board
B2B connector
SIM card
interface
